Audio Signal Processors

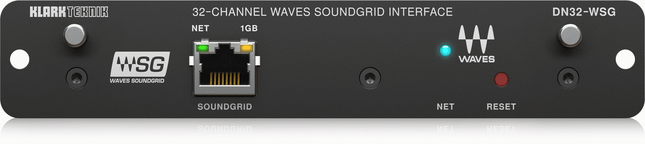

Expansion Card for 32 Channel Low-Latency AoIP in WAVES SoundGrid NetworksThe DN32-WSG expansion card allows M32 and X32 users to mix, record and play back multichannel audio with a plethora of plugins hosted on Waves SoundGrid servers in extremely low latency. Waves offers highest-fidelity audio plugins for basically every contemporary and vintage-emulated audio processing. DN32-WSG now allows you to use the very same industry-standard processing tool chain for live productions that you may use in your studio environment already. WAVES SoundGrid network interface for Behringer X32 and Midas M32 mixing consoles Mix, record and play back with SoundGrid-plugins in extremely low latency 32 input and output channels of audio over IP networks 44.1 and 48 kHz sample rates, 24-Bit resolution Clock Sync-over-Ethernet (SoE) for digital splits and distributed audio processing Redundancy and recovery options in networked audio Connects your console to the plugin processing power of WAVES SoundGrid servers Compatible with standard computers and network switches TRACKS LIVE application for intuitive multitrack recording and playback - download from waves.com SoundGrid Studio Application for ASIO*/Core Audio recording and playback - download from waves.com 10-Year Warranty Program* Designed and engineered in the UK

Read more less

Audinate Dante Expansion Module with up to 32 Bidirectional ChannelsThe DN32-DANTE expansion card provides up to 32 channels of bidirectional, networked audio to your Midas M32 or Behringer X32 mixing console for seamless integration with Dante enabled IP networks. Based on information technology standards, Dante provides uncompressed, multichannel digital media networking, with low latency and synchronisation. By focusing on flexible interoperability on an existing IP network infrastructure, Dante has been widely accepted and adopted by many pro audio manufacturers. Audinate Dante* expansion module for Midas and Behringer digital consoles Up to 32 bidirectional channels @ 48 kHz Enables multichannel recording and playback via Dante Virtual Soundcard* (PC or Mac* computer) Primary and secondary Ethernet interfaces for dual-redundant Dante networking Operates from internal Dante network Precision Time Protocol (PTP) clock Optional Dante Controller software for remote configuration (PC or Mac* computer) LED indicators monitor network activity and speed 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

ADAT Expansion Module with up to 32 Record/Playback Channels Enhance Your Audio Setup with the KLARK TEKNIK DN32ADAT Expansion Module. This module offers seamless integration and expanded connectivity for your audio system. Perfect for use with MIDAS digital consoles and other compatible devices. Experience high-quality audio transmission and versatility. Shop now for the KLARK TEKNIK DN32ADAT Expansion Module and take your audio production to the next level. ADAT* expansion module for Midas and Behringer digital consoles Up to 32 channels of simultaneous recording and playback @ 48 kHz Features 4 input and 4 output TOSLINK* optical fibre connectors BNC word clock input or output for external clock synchronisation Ideal for studio and live recordings with ADAT-equipped HD recorders Optical fibre connections eliminate ground loop interference 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

AES50 Network Module with up to 48 Bidirectional ChannelsThe KT-AES50 network module provides a dual port AES50 digital audio interface, compatible with both the Klark Teknik DN9650 and DN9652 Network Bridges and the Midas NEUTRON-NB Dual Network Bridge Expansion Module for the industry-leading NEUTRON High Performance Audio System Engine.Featuring up to 48 bidirectional channels at both 48 kHz or 96 kHz sample rates, with dual port redundancy in 48 kHz systems, KT-AES50 enables the interconnection of two AES50 networks operating at 96 kHz and 48 kHz respectively, as well as providing expanded AES50 channel counts in either 48 kHz or 96 Hz AES50 networks.KT-AES50 is designed for simplicity of use, and can operates from the incoming AES50 clock or an external clock via host unit. Panel-mounted LED indicators show the connection status for both AES50 ports.KT-AES50 is electrically and mechanically compatible with the industry standard Cirrus CM-1 format. Dual port AES50 network module with up to 48 bidirectional channels @ 48 kHz and 96 kHz Compatible with Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module 48 channel dual redundant operation @ 48 kHz Independent 24 channel operation on each port @ 96 kHz Operates from incoming AES50 clock or external clock via host unit LED indicators display AES50 connection status 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

MADI Network Module with up to 64 Bidirectional ChannelsThe KT-MADI network module provides MADI compatibility for the Klark Teknik DN9650 and DN9652 Network Bridges, and features up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively. KT-MADI offers high performance point-to-point links over both industry standard optical fibre and coaxial copper connections, and is ideally suited to interface with third party recording and playback equipment.KT-MADI features dual redundant operation with automatic failover to the coaxial copper interface in the event of a failure with the optical fibre interface.The KT-MADI network module can act as MADI clock master, MADI clock slave or can synchronise to one of the available external clock sources in either the Klark Teknik DN9650 or DN9652 host unit.KT-MADI is electrically and mechanically compatible with the industry standard Cirrus CM-1 format. MADI (AES10-compliant) network module with up to 64 bidirectional channels @ 48 kHz and 32 bidirectional channels @ 96 kHz Compatible with Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module Operates up to 500 m over optical fibre link and 200 m over coaxial copper link Optical transmission on SC-Duplex* connector Copper transmission on 75 ohm coaxial BNC connectors Dual-redundant operation with failover from optical to copper connections Operates as either MADI clock master, MADI clock slave or from external clock via host unit 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

Multi-Mode Optical Fibre Module for DN9680 with 500-Metre Range Converts DN9680 from single-mode fibre to multi-mode fibre operation Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

8 Port AES50 Extender and Multiplexer with up to 1000 Metre Range The DN9680 offers a solution to the 100-meter limitation imposed on AES50 networks by Ethernet and CAT5 cabling, with its high channel count. With a pair of DN9680 units, you can extend up to eight AES50 connections (192 bidirectional channels) by as much as 1,000 meters via single-mode optical fiber or 100 meters via CAT5 copper cable. This simplifies long-haul cable connections with the use of a single bidirectional snake cable. DN9680 functions as a bidirectional multiplexer and demultiplexer, combining eight incoming AES50 streams into the outgoing snake connection. It also unbundles the eight AES50 streams from the incoming snake connection and routes them to the corresponding AES50 ports. A snake system consisting of a pair of DN9680 units routes incoming AES50 streams to outgoing streams on a one-to-one port basis, making the snake transparent in use, with only a small propagation delay of 250 microseconds. [Plate_number_1] is compatible with single-mode dual fiber cable as standard. Additionally, the DN9680-MM upgrade is available as an option.e kit allows conversion for use with multimode dual fibre cable over a 500-metre range. Multiplexes up to 8 AES50 connections into one optical fibre cable or CAT5 cable Extends AES50 connections up to 1,000 m with optical fibre or 100 m with CAT5 cable High channel capacity with 192 bidirectional channels @ 96 kHz Internal "AES Grade 1" temperature-compensated word clock (1 ppm) Neutrik etherCON* connectors used for AES50 ports and copper snake connection Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection Internal web server allows browser-based configuration via Ethernet control port Rugged 1U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

Dual Network Bridge Format Converter with up to 64 Bidirectional Channels and Asynchronous Sample Rate ConversionDN9652 provides a multichannel interface between two third party digital audio networks and point-to-point interfaces. The third party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This uniqueÊKlark TeknikÊtechnology allows the interfacing of up to 64 bidirectional channels between the two independently clocked domains, which can also operate at different sample rates. Currently supporting MADI and Audinate Dante via theÊKlark Teknik KT-MADIÊAndÊKT-DANTE64Ênetwork modules, DN9652 is future-proofed in the evolving world of digital audio networking technology by being able to support new and emerging protocols via its industry-standard expansion slot, which is compatible with the Cirrus CM-1* format. Dual network bridge format converter with up to 64 bidirectional channels Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules Bidirectional Asynchronous Sample Rate Conversion on every channel with bypass facility Bidirectional output audio clock inhibit feature for redundant network systems 24 bit audio operation with 96 kHz and 48 kHz sample rates Video synchronisation in standard and high definition formats Internal "AES Grade 1" temperature-compensated word clock (1 ppm) Internal web server allows browser-based configuration via Ethernet control port Status indicator LEDs and LCD display on front panel Features Neutrik etherCON* network ports Rugged 1U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

AES50 Network Bridge Format Converter with up to 64 Bidirectional Channels and Asynchronous Sample Rate ConversionDN9650 provides a multichannel interface between AES50 networks and third party digital audio networks and point-to-point interfaces. The AES50 and third party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This unique Klark Teknik technology allows the interfacing of up to 64 bidirectional channels between the two independently clocked domains, which can also operate at different sample rates. Currently supporting MADI and Audinate Dante via the Klark Teknik KT-MADI And KT-DANTE64 network modules, DN9650 is future-proofed in the evolving world of digital audio networking technology by being able to support new and emerging protocols via its industry-standard expansion slot, which is compatible with the Cirrus CM-1* format.The DN9650 allows Midas PRO Series digital consoles and Midas digital I/O hardware and other 96 kHz-enabled AES50 devices to interface to multichannel MADI and Dante connections, simply and reliably. Network bridge format converter for AES50 networks with up to 64 bidirectional channels Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules Asynchronous sample rate conversion on every channel with bypass facility Bidirectional output audio clock inhibit feature for redundant network systems 24 bit audio operation with 96 kHz and 48 kHz sample rates Video synchronisation in standard and high definition formats Internal "AES Grade 1" temperature-compensated word clock (1 ppm) Internal web server allows browser-based configuration via Ethernet control port Status indicator LEDs and LCD display on front panel Features Neutrik etherCON* network ports Rugged 1U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

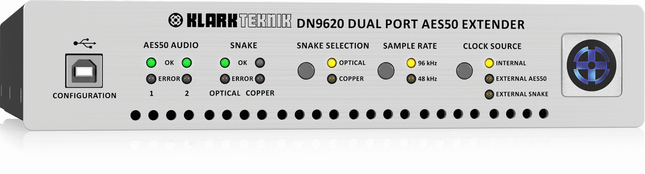

Dual Port AES50 Extender and Multiplexer with up to 500 Metre Range (Pair) With the DN9620, you can now extend your AES50 network beyond the 100-metre limitation imposed by Ethernet and CAT5 cabling. By utilizing a pair of DN9620 units, you can have up to two AES50 connections with 48 or 96 bidirectional channels at 96 kHz or 48 kHz sample rates, extended up to 500 metres via multimode optical fibre or 100 metres via CAT5 copper cable. It's a great solution for long-haul cable connections as it simplifies the setup by using only a single bidirectional snake cable.  The DN9620 acts as a bidirectional multiplexer and demultiplexer, combining the incoming AES50 streams into the outgoing snake connection. Simultaneously, it takes the incoming snake connection and unbundles the two AES50 streams routing them to the corresponding AES50 ports. It's a transparent system that routes the incoming AES50 streams to the outgoing streams on a one-to-one port basis, incurring only a small propagation delay of 270 microseconds. DN9620 is supplied in pairs, and a 19" rackmount adapter bracket is also included. Pair of DN9620 Dual Port AES50 Extenders and 19" rackmount adapter bracket Extends two AES50 connections by 500 m with optical fibre or 100 m with Cat5 cable High channel capacity - 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation Neutrik etherCON* connectors used for AES50 ports and copper snake connection Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection Comprehensive clock source options with front panel push button selection and LED indication Status indicator LEDs on front panel for each AES50 port and optical and copper snake connections Rugged half-width 1U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

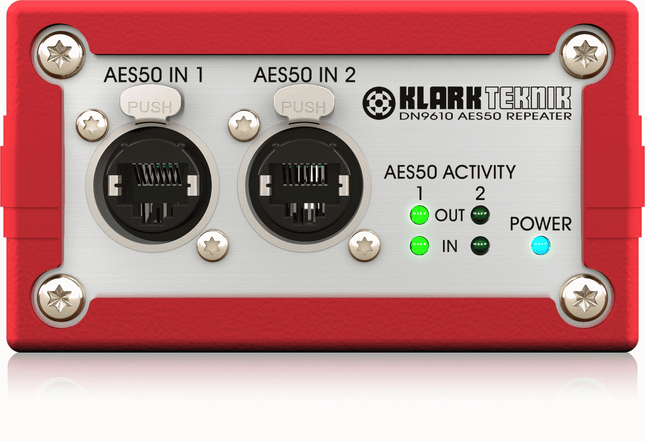

Dual Port AES50 Repeater with up to 100 Metre Range The DN9610 provides a cost-effective solution to the 100 metre limitation that Ethernet and CAT5 cabling imposes on the physical size of AES50 networks. Its compact form factor allows DN9610 to be placed where required to increase the length of a network connection, all that is needed is a source of mains power. DN9610 acts as a repeater to allow two independent AES50 connections to be extended by up to an additional 100 metres, without the need for format conversion or the use of optical fi bre cable. DN9610 is capable of both 48 kHz and 96 kHz operation, with its two AES50 connections able to operate at different sample rates simultaneously. Each connection can support 48 bidirectional channels at 96 kHz, or 96 bidirectional channels at 48 kHz sample rate. The two AES50 connections are also ideal for use with dual-redundant networks, such as the X and Y connections used on MIDAS digital console systems. Multiple DN9610 units can be connected in series, allowing AES50 to be transmitted over considerable distances. Whilst AES50 is bidirectional in operation, to maximise ease-of-use when cascading multiple units, the two AES50 connections on DN9610 each feature a nominal input and output port to simplify reference clock distribution. Through-unit propagation delay is less than 0.5 microseconds, which has a negligible effect on overall AES50 system link latencies. Extends two independent AES50 connections by up to 100 m with CAT5 cable High channel capacity - 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation Supports dual-redundant AES50 networks (X and Y connections) Rugged locking Neutrik* etherCON connectors used for AES50 connections Status indicator LEDs on the front panel for each AES50 port Dual-redundant power supply inputs with locking Switchcraft* connectors External auto-ranging universal switch-mode power supply adapter Aluminium extrusion casing with stackable protective silicone rubber sleeve Compact and rugged design 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

Dynamic Microphone Booster with High-Quality Preamp Unleash your microphone's true potential with the Klark Teknik CM1 Mic Booster. Designed for audio professionals seeking enhanced sound clarity and volume boost. Experience superior performance with the CM1 Mic Booster." Dynamic mic booster adds extra gain to your sound High-quality preamp provides up to +25 dB of gain Phantom-powered with no need for external power supply Works with almost any dynamic or passive ribbon microphone Rugged, road-worthy construction for years of dependable use 3-Year Warranty Program* Designed and engineered in the U.K.

Read more less
