Description
Dual Port AES50 Extender and Multiplexer with up to 500 Metre Range (Pair)
With the DN9620, you can now extend your AES50 network beyond the 100-metre limitation imposed by Ethernet and CAT5 cabling. By utilizing a pair of DN9620 units, you can have up to two AES50 connections with 48 or 96 bidirectional channels at 96 kHz or 48 kHz sample rates, extended up to 500 metres via multimode optical fibre or 100 metres via CAT5 copper cable. It's a great solution for long-haul cable connections as it simplifies the setup by using only a single bidirectional snake cable.
The DN9620 acts as a bidirectional multiplexer and demultiplexer, combining the incoming AES50 streams into the outgoing snake connection. Simultaneously, it takes the incoming snake connection and unbundles the two AES50 streams routing them to the corresponding AES50 ports. It's a transparent system that routes the incoming AES50 streams to the outgoing streams on a one-to-one port basis, incurring only a small propagation delay of 270 microseconds.
DN9620 is supplied in pairs, and a 19" rackmount adapter bracket is also included.
- Pair of DN9620 Dual Port AES50 Extenders and 19" rackmount adapter bracket
- Extends two AES50 connections by 500 m with optical fibre or 100 m with Cat5 cable
- High channel capacity - 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation

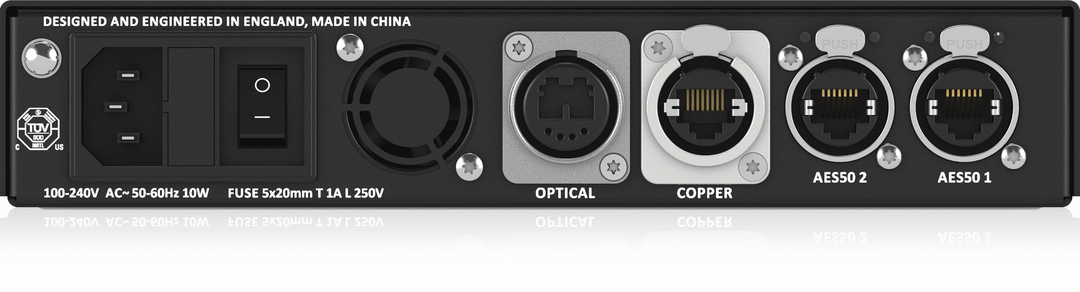

- Neutrik etherCON* connectors used for AES50 ports and copper snake connection
- Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection

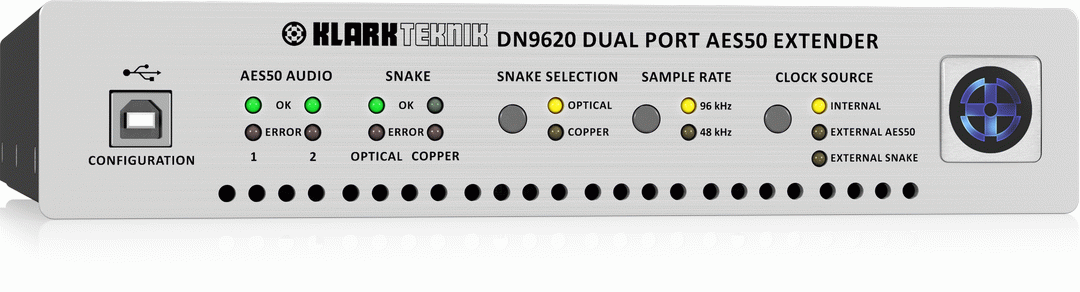

- Comprehensive clock source options with front panel push button selection and LED indication
- Status indicator LEDs on front panel for each AES50 port and optical and copper snake connections
- Rugged half-width 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
