8 Port AES50 Extender and Multiplexer with up to 1000 Metre Range

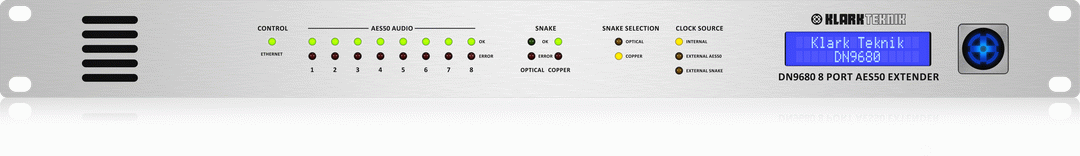

The DN9680 offers a solution to the 100-meter limitation imposed on AES50 networks by Ethernet and CAT5 cabling, with its high channel count. With a pair of DN9680 units, you can extend up to eight AES50 connections (192 bidirectional channels) by as much as 1,000 meters via single-mode optical fiber or 100 meters via CAT5 copper cable. This simplifies long-haul cable connections with the use of a single bidirectional snake cable.
DN9680 functions as a bidirectional multiplexer and demultiplexer, combining eight incoming AES50 streams into the outgoing snake connection. It also unbundles the eight AES50 streams from the incoming snake connection and routes them to the corresponding AES50 ports. A snake system consisting of a pair of DN9680 units routes incoming AES50 streams to outgoing streams on a one-to-one port basis, making the snake transparent in use, with only a small propagation delay of 250 microseconds.
[Plate_number_1] is compatible with single-mode dual fiber cable as standard. Additionally, the DN9680-MM upgrade is available as an option.e kit allows conversion for use with multimode dual fibre cable over a 500-metre range.
- Multiplexes up to 8 AES50 connections into one optical fibre cable or CAT5 cable
- Extends AES50 connections up to 1,000 m with optical fibre or 100 m with CAT5 cable
- High channel capacity with 192 bidirectional channels @ 96 kHz
- Internal "AES Grade 1" temperature-compensated word clock (1 ppm)
- Neutrik etherCON* connectors used for AES50 ports and copper snake connection
- Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection
- Internal web server allows browser-based configuration via Ethernet control port
- Rugged 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
