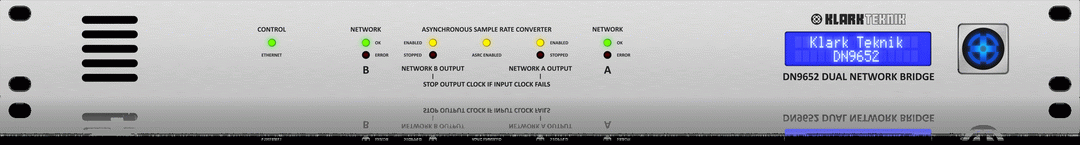

KLARK TEKNIK DN9652 DUAL NETWORK BRIDGE

Description

Dual Network Bridge Format Converter with up to 64 Bidirectional Channels and Asynchronous Sample Rate Conversion

DN9652 provides a multichannel interface between two third party digital audio networks and point-to-point interfaces. The third party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This uniqueÊKlark TeknikÊtechnology allows the interfacing of up to 64 bidirectional channels between the two independently clocked domains, which can also operate at different sample rates. Currently supporting MADI and Audinate Dante via theÊKlark Teknik KT-MADIÊAndÊKT-DANTE64Ênetwork modules, DN9652 is future-proofed in the evolving world of digital audio networking technology by being able to support new and emerging protocols via its industry-standard expansion slot, which is compatible with the Cirrus CM-1* format.

  • Dual network bridge format converter with up to 64 bidirectional channels
  • Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
  • Bidirectional Asynchronous Sample Rate Conversion on every channel with bypass facility
  • Bidirectional output audio clock inhibit feature for redundant network systems
  • 24 bit audio operation with 96 kHz and 48 kHz sample rates
  • Video synchronisation in standard and high definition formats
  • Internal "AES Grade 1" temperature-compensated word clock (1 ppm)
  • Internal web server allows browser-based configuration via Ethernet control port
  • Status indicator LEDs and LCD display on front panel
  • Features Neutrik etherCON* network ports
  • Rugged 1U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

Read more

Product form

$3,899.00

    ⏰ Order now — ships today!
    • Free shipping Australia-wide. Every order over $50. No exceptions.
    • 30-day returns. No hassle. Even if you just changed your mind.
    • Secure checkout. Your payment is encrypted and protected.

    Dual Network Bridge Format Converter with up to 64 Bidirectional Channels and Asynchronous Sample Rate ConversionDN9652 provides a multichannel interface... Read more

    • Secure & safe checkout

      paypal
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa
    🇦🇺 Aussie Owned 📦 44,000+ Orders Shipped

    Description

    Dual Network Bridge Format Converter with up to 64 Bidirectional Channels and Asynchronous Sample Rate Conversion

    DN9652 provides a multichannel interface between two third party digital audio networks and point-to-point interfaces. The third party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This uniqueÊKlark TeknikÊtechnology allows the interfacing of up to 64 bidirectional channels between the two independently clocked domains, which can also operate at different sample rates. Currently supporting MADI and Audinate Dante via theÊKlark Teknik KT-MADIÊAndÊKT-DANTE64Ênetwork modules, DN9652 is future-proofed in the evolving world of digital audio networking technology by being able to support new and emerging protocols via its industry-standard expansion slot, which is compatible with the Cirrus CM-1* format.

    • Dual network bridge format converter with up to 64 bidirectional channels
    • Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
    • Bidirectional Asynchronous Sample Rate Conversion on every channel with bypass facility
    • Bidirectional output audio clock inhibit feature for redundant network systems
    • 24 bit audio operation with 96 kHz and 48 kHz sample rates
    • Video synchronisation in standard and high definition formats
    • Internal "AES Grade 1" temperature-compensated word clock (1 ppm)
    • Internal web server allows browser-based configuration via Ethernet control port
    • Status indicator LEDs and LCD display on front panel
    • Features Neutrik etherCON* network ports
    • Rugged 1U rackmount chassis for durability in portable applications
    • Auto-ranging universal switch-mode power supply
    • 10-Year Warranty Program*
    • Designed and engineered in the U.K.
