Audio Signal Processors

USB 2.0 Network Module with up to 48 Bidirectional ChannelsThe KT-USB network module provides a multichannel bidirectional USB digital audio interface, compatible with both the Klark Teknik DN9650 and DN9652 Network Bridges and the Midas NEUTRON-NB Dual Network Bridge Expansion Module for the industry-leading NEUTRON High Performance Audio System Engine.Featuring up to 48 or 24 bidirectional channels at 48 kHz or 96 kHz respectively for simultaneous audio and playback, KT-USB is the ideal computer audio solution for Midas PRO Series digital consoles and requires only a single standard USB cable to connect to either a Mac* or PC running any industry standard digital audio workstation software.KT-USB is designed for simplicity of use, and just requires selection of its sampling rate via the host unit. Panel-mounted LED indicators show the selected sample rate.KT-USB features a class-compliant USB 2.0 interface and no additional software drivers are required for use with Apple Macs. An ASIO* 2.2 compliant software driver is available for Windows PC computers.KT-USB is electrically and mechanically compatible with the industry standard Cirrus CM-1 format. USB 2.0 network module with up to 48 bidirectional channels @ 48 kHz and 24 bidirectional channels @ 96 kHz Compatible with Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module Simultaneous computer audio recording and playback LED indication of sample rate Windows* software driver available at klarkteknik.com 10-Year Warranty Program* Designed and engineered in the U.K.

Read more less

XVIVE MORE YOU HUB AUDIO INTERFACE Expandable Audio Interface and Personal Monitoring System The XVIVE MORE YOU HUB AUDIO INTERFACE is an innovative and expandable audio interface designed for musicians and bands. It serves as the core of a personal monitoring system, allowing up to eight musicians to collaborate seamlessly. Each participant can connect their own MORE YOU unit, such as the MORE YOU 2X or another HUB, adjusting their input levels and adding reverb as desired. This flexibility makes it ideal for recording sessions or rehearsals, as it grows with your needs, accommodating up to 24 total inputs, including 8 ADAT inputs. User-Friendly Monitoring and Control Each musician utilizing the MORE YOU Hub or 2X can connect two inputs, such as a vocal microphone and an instrument, directly in front of them. The system is designed for easy setup, allowing musicians to plug in their gear and manage their monitoring through headphones or in-ear monitors. With the innovative MORE PORT feature, standard XLR cables carry a significant amount of digital audio, power, and TalkBack audio, minimizing clutter and streamlining your setup. This system not only reduces the number of cables required but also simplifies the overall recording and monitoring process. Product Features Expandable System: Connect up to eight musicians with a total of 24 inputs, including 8 ADAT inputs. Two Combo Inputs: The More You Hub features two combo inputs for microphones and instruments. User Control: Each user can adjust their input levels and add reverb as desired for personalized monitoring. True Gain Mic Preamps: Provides 60 dB of gain in 1 dB steps, with 48V phantom power, phase, and Hi-Pass Filter available on all inputs. USB-C Connectivity: Easily connects to your DAW for recording and monitoring with plugins applied. Standalone Operation: Functions as a headphone/in-ear monitoring system for up to eight musicians without the need for a PA system. Innovative Cabling: The MORE PORT transmits audio, power, and TalkBack audio through standard XLR cables, reducing the need for multiple cables. Connectivity and Integration The XVIVE MORE YOU HUB connects effortlessly to your DAW via USB-C, providing a user-friendly monitoring experience. Each musician can control their own input levels while benefiting from the master control features of the Hub. This system's efficient use of XLR cabling significantly cuts down on clutter, making it perfect for both studio and live applications. Why Choose the XVIVE MORE YOU HUB AUDIO INTERFACE? The XVIVE MORE YOU HUB AUDIO INTERFACE combines versatility and user-centric design, making it an ideal solution for bands and recording artists. Its expandable nature, exceptional input control, and ease of use empower musicians to create and perform with maximum efficiency, whether in the studio or during rehearsals.

Read more less

The Digitech Powered USB Extension Lead 10m XC4120 is the perfect solution for extending the reach of your USB devices without compromising performance. Whether you're connecting peripherals, charging devices, or transferring data over long distances, this high-quality extension lead ensures reliable power delivery and seamless operation. Key Features: Extended Range: 10-meter length provides ample reach for connecting USB devices to power sources or computers. Ideal for home, office, or industrial use. Reliable Performance: Ensures stable power delivery over long distances. Reduces the risk of data loss or interruptions during file transfers or device operation. Plug-and-Play Convenience: No additional software or drivers needed. Compatible with a wide range of USB devices, including printers, cameras, and external drives. Durable and Flexible Design: Built to withstand regular use. Flexible cable construction allows for easy handling and placement. Specifications: Cable Length: 10m USB Type: Powered extension lead Compatibility: Compatible with USB 2.0 and backward-compatible with USB 1.1 Power Delivery: Supports stable power transmission over extended distances Why Choose the Digitech Powered USB Extension Lead XC4120? This extension lead is an essential accessory for anyone needing to connect USB devices over longer distances. With its robust design and reliable power and data transmission, the XC4120 ensures hassle-free connectivity, making it a versatile tool for both personal and professional use. Whether for charging devices, transferring data, or powering peripherals, this extension lead delivers dependable performance every time.

Read more less

BEHRINGER INFINIUM X1 OPTICAL DJ FADER Upgrade your Behringer DDM4000 DJ mixer with the X1 INFINIUM Optical Fader, offering unmatched precision, reliability, and durability. Featuring patented, contact-free optical technology, the X1 INFINIUM delivers smooth, seamless transitions with the authentic analog feel DJs demand. Fully adjustable friction ensures a personalized experience tailored to your unique performance style. Whether you’re mixing beats or scratching, the X1 enhances your control and delivers superior performance, gig after gig. Key Features Contact-Free Optical Technology: Patented system ensures ultra-long lifespan and maintenance-free operation. High Digital Precision: Offers 128 discrete positions for precise and responsive control. Authentic Analog Feel: Combines digital accuracy with the tactile response of an analog fader. Adjustable Friction: Customizable resistance to suit your personal style and preferences. Built-In Magnetic System: Ensures smooth operation without physical contact for reduced wear and tear. Complete Installation Kit: Includes detailed instructions and tools for easy installation. Why Choose the Behringer X1 INFINIUM Optical DJ Fader? Durability: Contact-free design minimizes wear, delivering reliable performance over countless sets. Precision: 128-position tracking enables unparalleled accuracy for mixing and scratching. Customization: Adjustable friction lets you tailor the fader's movement to match your technique. Ease of Installation: Comes with everything you need for quick and hassle-free integration into your DDM4000 mixer. The X1 INFINIUM Optical Fader is the ideal upgrade for DJs looking to achieve superior control, precision, and longevity. Get ready to elevate your performance with the ultimate fader designed for professionals. Upgrade your mixer. Enhance your sound. Experience the INFINIUM difference.

Read more less

BEHRINGER DEQ2496: Professional 24-bit/96 kHz Equalizer with Real-Time Analysis for Superior Sound Control Optimize Live Sound and Mastering with Precision The BEHRINGER DEQ2496 is a cutting-edge 24-bit/96 kHz equalizer designed for audio professionals who demand precise control and real-time analysis capabilities. Whether you're optimizing sound in a complex live setting or mastering audio for professional recordings, the DEQ2496 provides the tools you need to achieve superior sound quality. With its floating-point DSP technology and 113 dB dynamic range, this equalizer ensures pristine audio and effective control, no matter the complexity of your setup. Advanced Equalization and Dynamic Processing Equipped with 4 concurrently selectable EQ modules, including a 31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer, and 3 dynamic EQs per stereo channel, the DEQ2496 offers unrivaled sound-shaping capabilities. Its real-time FFT analyzer with an auto EQ function allows you to fine-tune your sound with incredible accuracy, while the VPQ (Virtual Paragraphic EQ) feature adds even more flexibility. Whether you're balancing frequencies in a multi-way PA system or refining recorded tracks, the DEQ2496 delivers the precision you need. Key Features of the BEHRINGER DEQ2496 Ultra-high resolution 24-bit/96 kHz processor: Delivers exceptional sound quality with 32/40-bit floating-point DSP technology. 113 dB dynamic range: Ensures audiophile-quality sound with 24-bit/96 kHz A/D and D/A converters. 4 EQ modules: Includes 31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer, and 3 dynamic EQs per stereo channel for versatile sound shaping. Real-time analysis: Features a 61-band FFT analyzer with an auto EQ function for room and loudspeaker equalization. Virtual Paragraphic EQ (VPQ): Provides parametric control over graphic EQs for advanced sound tweaking. Compressor/expander and limiter: Includes dynamic processing with peak limiter, stereo imager, and stereo delay for delay line applications. Multi-functional level meters: Offers peak/RMS, VU, and SPL meters with dBA/dBC weighting via the RTA/Mic input. 64 user memories: Store complete setups or individual module configurations for easy recall. Mic/line input with phantom power: Ideal for RTA and Auto-EQ applications. Comprehensive connectivity: Balanced inputs, servo-balanced outputs with gold-plated XLR connectors, stereo aux output, and AES/EBU and S/PDIF inputs and outputs (XLR and optical). Wordclock input and MIDI connections: For remote control, preset dumps, and system updates. Energy-efficient design: Planet Earth switching power supply offers maximum flexibility (100 - 240 V~), noise-free audio, and low power consumption. Future-proof: Open architecture allows for future software updates via MIDI. Compact and Durable for Professional Use The DEQ2496 is built to handle the rigors of professional audio environments. Its rack-mountable design makes it easy to integrate into studio or live sound setups, while the gold-plated XLR connectors ensure reliable, high-quality signal transmission. With advanced EQ features, real-time analysis, and dynamic processing, the DEQ2496 is an essential tool for any audio engineer looking to refine their sound. Specifications of the BEHRINGER DEQ2496 Dimensions: Width: 48.26 cm Height: 4.45 cm Depth: 21.49 cm Weight: 3.06 kg Inputs/Outputs: Balanced XLR and ¼" TRS inputs AES/EBU and S/PDIF (XLR and optical) digital inputs and outputs Mic/line input with phantom power Wordclock input and MIDI connections EQ Modules: 31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer, 3 dynamic EQs per stereo channel Real-time analysis: 61-band FFT analyzer with auto EQ Dynamic processing: Compressor/expander with peak limiter Why Choose the BEHRINGER DEQ2496? Comprehensive sound control: Four EQ modules, real-time analysis, and dynamic processing deliver unmatched flexibility for live and studio applications. Professional audio quality: Audiophile-grade 24-bit/96 kHz converters and 113 dB dynamic range ensure crystal-clear sound. Advanced connectivity: Gold-plated XLR connectors, digital inputs/outputs, and MIDI support for seamless integration. Future-proof design: Open architecture allows for software updates to keep your system up to date. Don't miss out! The BEHRINGER DEQ2496 is the ultimate equalizer for professionals who need precise control over live sound and audio mastering. With its high-resolution processing, real-time analysis capabilities, and flexible EQ and dynamic processing options, the DEQ2496 delivers the tools needed to optimize sound for any situation. Whether you're working in the studio or at a live event, this 24-bit/96 kHz equalizer is the key to achieving superior sound quality.

Read more less

Behringer GO CAM WIRELESS – Professional Wireless Microphone System Compact, All-in-One Wireless Audio Solution for Vloggers, Streamers & Content Creators Capture Professional Audio – Anytime, Anywhere The Behringer GO CAM WIRELESS is a powerful, portable wireless microphone system built specifically for modern content creators. Whether you're filming YouTube videos, recording podcasts, conducting interviews, teaching online, or live streaming, this all-in-one system delivers clear, professional-grade audio without cables holding you back. Compact, lightweight, and easy to use, GO CAM WIRELESS gives you the freedom to move while maintaining crisp, natural sound quality.  Key Features Wide Compatibility Works seamlessly with DSLR cameras, smartphones, tablets, video cameras, and audio recorders. 30m / 100 ft Wireless Range Move freely while maintaining stable, high-quality audio transmission. Built-In Omnidirectional Microphone Captures natural voice clarity from all directions, perfect for interviews and vlogs. 3-Level Noise Reduction Switch between noise reduction levels to eliminate background distractions. Real-Time Monitoring Monitor your audio live while recording for total confidence. Compact & Lightweight Clips easily to clothing or belt for hands-free operation. Long Battery Life Up to 8 hours of continuous recording with convenient USB charging. Complete Accessory Kit Included Everything you need is included—ready to record straight out of the box. What’s in the Box Wireless Transmitter with Built-in Microphone & Clip Wireless Receiver Camera Connection Cable USB Charging Cables Fur Windscreen (for outdoor recording) Protective Carry Case Ideal For  Interviews  Video Production  Vlogging  Live Streaming  Online Teaching  Voiceovers  Podcast Recording Technical Highlights Wireless Range: 30m / 100 ft Microphone Type: Built-in omnidirectional Noise Reduction: 3-level adjustable Battery Life: Up to 8 hours Charging: USB rechargeable Form Factor: Compact clip-on transmitter + receiver Why Choose the Behringer GO CAM WIRELESS? The GO CAM WIRELESS combines portability, professional audio quality, and plug-and-play simplicity in one compact package. Designed for creators who need reliable sound without complicated setups, it’s the perfect upgrade for anyone serious about producing high-quality content.

Read more less

DM8008 Channel Output Box: Professional 8-Channel Analog Output Solution for ULTRANET Networks Versatile Audio Routing for Professional Applications The DM8008 Channel Output Box is a rugged, high-quality 8-channel analog output solution housed in a durable 19-inch 1U rack-mount chassis. Designed specifically for the ULTRANET environment, this output box is ideal for professional audio applications, including hotels, places of worship, casinos, and more. It features 8 analog outputs and can be daisy-chained with up to 7 additional units via a single ULTRANET cable, offering flexible and scalable audio signal routing. Seamless Integration with ULTRANET Networks The DM8008 integrates seamlessly with ULTRANET-compatible devices using CAT5 cabling and RJ45 connections, transmitting up to 16 independent 24-bit audio channels with zero interference. The digital audio signal is internally converted to analog through high-quality 24-bit D/A converters, ensuring crystal-clear audio reproduction at a 48 kHz sample rate. A rear panel switch allows you to easily toggle between channels 1-8 or 9-16, making it simple to manage your audio routing. Key Features of the DM8008 Channel Output Box 8-channel analog output: Designed for professional audio environments like hotels, places of worship, and casinos. ULTRANET technology: Supports transmission of up to 16 independent 24-bit audio channels over CAT5 cabling with RJ45 connectors. High-quality 24-bit D/A converters: Converts digital audio to analog at a 48 kHz sample rate for superior sound quality. Balanced analog Euroblock connectors: Provides reliable, professional-grade audio output connections. Daisy-chaining: Daisy-chain up to 7 DM8008 units on a single ULTRANET cable for versatile and scalable signal routing. Channel selection switch: Easily toggle between channels 1-8 or 9-16 using the rear panel switch. Reliable and Flexible Design for Any Setup The DM8008 is built for durability and reliability in any professional audio setup. Its balanced analog Euroblock connectors ensure secure connections for high-quality signal transmission. With the ability to daisy-chain multiple units, this output box is perfect for scaling your audio routing needs across large venues or complex setups. The 1U rack-mount design allows for easy integration into standard audio racks, making it suitable for both stage and studio use. Specifications of the DM8008 Channel Output Box Dimensions: Height: 5 cm Width: 35 cm Length: 24 cm Weight: 3 kg Connectivity: 8 balanced analog Euroblock connectors, RJ45 ULTRANET connections. Power Supply: Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption. Why Choose the DM8008 Channel Output Box? Professional-grade performance: High-quality 24-bit D/A conversion and balanced analog outputs ensure top-tier audio quality. ULTRANET-compatible: Seamlessly integrates with other ULTRANET devices for efficient audio routing. Scalable: Daisy-chain multiple units for flexible audio distribution in large venues or complex setups. Compact and durable: 1U rack-mount chassis offers a space-saving and reliable solution for professional environments. Don't miss out! The DM8008 Channel Output Box is a versatile and reliable tool for routing high-quality analog audio in ULTRANET environments. With its daisy-chaining capability, professional-grade output connectors, and 24-bit D/A converters, the DM8008 is the ideal solution for large venues and demanding professional audio applications.

Read more less

Gain a new recording perspective with the TC Helicon GO SOLO. With a compact, battery-powered design, you can achieve industry-standard recordings from any location. Compatible with Mac and PC, as well as Apple and Android devices, this versatile device even supports phantom power for use with condenser microphones. Additionally, seamlessly integrate it with TC Helicon's full creative suite of mobile apps. Don't break the bank for high-quality recordings - choose the TC Helicon GO SOLO. Features Go inspire the world with a professional-quality audio/MIDI interface Record high-quality audio using your mobile devices Connects directly to iOS*, Android*, Mac* and PC devices using USB or MFi Lightning* (cables included) 2 x 2.5 mm MIDI I/O jacks allow you to connect your 5-pin MIDI devices (cables included) High-quality microphone preamp with +48 V phantom power Stereo headphone output with adjustable gain for real-time monitoring Single combo XLR* jack for microphone, line level and instrument input Integrates seamlessly with the creative suite of TC Helicon mobile apps Powered via USB or 2 AA batteries Optional DC power supply lets you charge your mobile device while using interface Specifications Height - 12.8cm Width - 7.7cm Length - 4.0cm Weight - 0.37kg

Read more less

Made for experts..control your studio sound with the BEHRINGER MONITOR2USB MONITORING CONTROLLER. This essential device allows you to easily switch between sources and adjust your monitoring levels for accurate sound reproduction. With seamless USB connectivity, you can also record and mix with precision. Elevate your studio experience with this versatile controller. Features Premium speaker and headphones monitoring center Large Volume knob with true VCA control for extremely precise level adjustments Built-in stereo USB Audio Interface, perfect for computer-based studios 2 high-quality stereo inputs connect perfectly to your DAW 3 independent Monitor outputs to connect up to 3 sets of studio monitors 2 high-grade headphone amplifiers with separate volume controls Crossfeed control emulates the stereo speaker panorama when listening through your headphones Convenient Mono and Dim functions right at your fingertips Planet Earth switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy savings Specifications Depth 19.6 Width 21.6 Height 8.5 Weight 2 Kg

Read more less

Dynalink HDMI & Infra-Red Cat5e/6 Extender UTP Balun 4K HDMI Extender with IR Control, Zero-Delay & 70m Transmission Reliable HDMI Extension Over CAT5e/6 The Dynalink HDMI & Infra-Red Cat5e/6 Extender UTP Balun transmits HD video/audio and IR control signals over a single CAT5e/6 cable with zero delay and uncompressed quality. It supports up to 70m at 1080p and 40m at 4K30Hz, making it ideal for home theatres, conference rooms, classrooms, and professional AV setups. Key Features Long-Distance Transmission: 70m @ 1080p | 40m @ 4K30Hz Zero-Delay, Uncompressed Transmission for flawless quality HDMI Loop Output: Cascade to additional extenders IR Control: One-way infrared signal transmission EDID Copy Function: Choose local or remote EDID for compatibility Audio Support: PCM 7.1, Dolby True HD, DTS HD Standards Compliant: HDMI 1.4, HDCP 1.4, DVI 1.0 Compact Metal Housing: Durable and discreet installation Ideal For Home theatres and living rooms Conference and boardrooms Education and training environments Multi-display setups with cascading extenders Technical Overview Video Resolution: Up to 4K @ 30Hz (YUV 4:4:4) Video Bandwidth: 10.2Gbps Audio Formats: PCM7.1, Dolby True HD, DTS HD Connections (Transmitter): 1 × HDMI In (Type A, 19-pin female) 1 × HDMI Out (Loop) 1 × IR Out (3.5mm jack) 1 × CAT Out (RJ45) Connections (Receiver): 1 × HDMI Out (Type A) 1 × IR In (3.5mm jack) 1 × CAT In (RJ45) Power Supply: 12V/1A DC (included) Power Over Cable: Yes (Tx → Rx) Dimensions: 79.5(W) × 69(D) × 16.5(H) mm Weight: Transmitter 132g | Receiver 130g Operating Temp: 0°C–40°C Package Includes 1 × HDMI Transmitter 1 × HDMI Receiver 1 × IR Blaster Cable (1.5m) 1 × IR Receiver Cable (1.5m) 1 × 12V/1A DC Power Adapter 1 × User Manual Why Choose Dynalink? With support for 4K video, long-distance HDMI extension, and IR control, the Dynalink HDMI Extender ensures seamless AV integration for professional and home use. Built for reliability and ease of installation, it’s a complete solution for extending HDMI signals without compromise.

Read more less

This wall plate for microphone and line inputs features a balanced high level output converted from either input. The 3V signal is transmitted through Cat5e cable, allowing for distribution up to 300m without interference, to a compatible UTP receiver unit from Redback. The mic input uses a balanced XLR, while the line input can be connected through 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level output. Power is provided to the plate via UTP cabling.Use with Redback A4480B and A4432The wall plate allows for a local input source in a specific zone to override the overall input. This could include a mobile device for background music or a microphone for speeches at a wedding event.

Read more less

The Redback Communicator is a highly versatile paging system controller that utilizes cutting-edge microprocessor technology to switch between 100V line level or low level balanced line signals. This dynamic and expandable device is the culmination of extensive development and input from professional sound contractors.Optimal for managing paging and background music (BGM) functionality in expansive PA systems with up to 16 zones (can be increased to 32 zones by adding a second A 4580), including educational institutions, industrial facilities, commercial hubs, air transportation hubs, hospitality establishments, athletic facilities, and corporate complexes.The A 4580 serves as a primary control hub for a paging system, housing essential circuitry for switching. Background music can be easily turned on or off for any zone using the conveniently located selection switches on the front panel.When used with the A 4660 paging console, the Redback 16 Zone Paging System Switch Box A4580 allows for both individual and simultaneous paging of each zone through the All-Call function. This switch box also offers a "macro" function that lets you assign a button for easier and faster operation of multiple zones. With a maximum of 8 connected paging consoles across 4 circuits (with a maximum of 2 per circuit), this system offers expansive coverage.Note: Additional power injectors (Redback A 4658) may be necessary in scenarios where the system has more than four paging consoles connected or for cable runs that exceed a certain length.The Redback A 4580 seamlessly integrates with the A 4565B Alert/Evac controller, enabling the use of industry-standard tones in all zones upon activation through the EVAC Input on the rear panel. It also offers the option of utilizing this input for telephone paging purposes.When configured at 100V, this system supports 1 or 2 amplifiers and enables flexible distribution of background music (BGM) and paging to any desired zone. Please note, when paging to one zone, BGM will be momentarily suspended for all zones. If using separate PA and BGM amplifiers, BGM will remain uninterrupted while paging is selected for individual zones.When used in a low level balanced line setup, the Redback 16 Zone Paging System Switch Box A4580 allows for individual amplifiers to be used in each zone. This enables each zone's speaker circuit to receive separate music programs and local paging sources. Additionally, the microphone consoles can page individual zone amplifiers as needed.The Redback 16 Zone Paging System Switch Box A4580 can support up to eight paging consoles on four separate circuits, with a capacity of two consoles per circuit. This console has the capability to operate from four to 32 zones in increments of four, with the option to add a second A4580 communicator for zones 17-32. In addition, zones can be locked out for non-use or to restrict user access as needed.Choose between pre-announcement and post-announcement chime or message options, available through the console menu interface and in MP3 format.When a zone is selected, it will be indicated by an illuminated light. To cancel a selected zone, you can press the zone switch again, use the cancel switch, or it will automatically cancel after 10 seconds of no use.A standard feature on all microphone consoles is a busy indicator that signals when the system is being used by another user.The zones and installer label can be personalized through the console menu interface. Package Contents: A4580 Audio Switcher 24V DC 2A Plug pack Instruction Booklet Features Amplifier 100V level or low level balanced line switching Selectable pre and post announcement chimes via A4660 (Internal or MP3/SD card based) Selectable BGM for each zone Accepts up to 8 paging consoles Expandable up to 32 zones with additional A 4580 Paging consoles connect via Cat 5 cable Paging consoles can be up to 200m from control box Operates from 24V DC plugpack (supplied) All inputs/outputs via pluggable terminals Suitable for 1 or 2 amplifier systems Evac "All Call" input for emergency tones or telephone paging. Maximum 500W power handling over 16 zones 1U 19” rack mount

Read more less

This pre-amplifier wall plate is versatile, accepting both microphone and line inputs and converting them to a balanced high level output. The resulting 3V signal can be transmitted up to 300m without interference via Cat5e cable, making it perfect for large spaces. The mic input is balanced XLR, while the line input offers options for both 2 x RCA sockets and a 3.5mm audio jack, making it compatible with a variety of devices. Power is conveniently supplied through the UTP cabling, making installation a breeze.Use with Redback A4480B and A4432This wall plate allows for overriding the input to a designated zone using a local input source within that zone. For example, a mobile phone can be used for background music or a microphone can be used for speeches at a wedding event..Part of the Redback UTP Solutions Range.Explore Redback's UTP solutions range, featuring a diverse selection of transmitters and receivers designed to seamlessly connect various audio signals between local zones and equipment racks. Refer to the connection matrix to identify which items in the Redback range are compatible with this product. Specifications Input Mic Level Sensitivity: 3mV Input Line Level Sensitivity: 1V Music Input Level Sensitivity: 500mV Output Connector: RJ45 8P8C Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm JACK

Read more less

This lockdown controller is designed to supplement the A 4565 alert/evac controller and is specifically suited for schools that need a lockdown warning system. It features a period bell, standby, lockdown, and all clear tones that can be triggered via switches on the front panel, remote closing contact triggers on the rear, or through the use of the optional wall plate (A 4598) or paging console (A 4660)..An SD card in MP3 format stores all tones, giving full control to the user. This includes pre-recorded tones, music, or speech for each tone. Additionally, the standby and lockdown tones can be set to repeat/loop using external DIP switches. The order of priority from highest to lowest is all clear, lockdown, standby, bell, and pre-bell. The standby or lockdown tone activates the corresponding switch on the front of the unit, which will continue to illuminate until lockdown overrides the standby condition or the all clear tone is activated. If the period bell is activated, the period bell switch on the front of the unit will illuminate until the tone finishes, while the all clear switch will remain illuminated until the tone finishes if the all clear tone is activated.When connected, the switches or LEDs on the wall plates or paging consoles will illuminate according to their unit. The system is powered by a built-in 24V DC source and offers separate 24V DC switched outputs for remote triggering of alarms or other devices. All tones - including pre-bell, period bell, standby, lockdown, and all clear - are supported. Connectivity to the paging consoles and wall plates is achieved through Cat5e cabling. Up to four paging consoles or 16 remote wall plates can be connected simultaneously. Additionally, a standard line level output is available for connection to the school's PA system.This device can be linked to the A 4565 alert/evac controller to integrate with an EWIS system, if necessary. Features 1U 19” rack mount Interfaces with A 4565 for a complete fire/evac & lockdown system 24V DC operation (plugpack included) Period bell, standby, lock down and all clear controls with remote contacts Connects to lockdown wallplate and/or paging console via Cat5e UTP cabling MP3 SD card tone & audio announcement playback RCA audio output Up to 4 paging consoles and 16 remote wallplates per system Flip up switch covers to prevent accidental triggering Adjustable rear mounted level control Switched 24V outputs for all conditions (all clear, standby, lockdown, bell, pre-bell, emergency & common contacts). Specifications Output Level: 0dBm into 600Ω Indicators: Power on, Bell/Prebell Active, Mp3 Error, Aux Mp3 Active,PA Active MP3 File Format: up to 320kbps, 44.1kHz, 32bit,VBR or CBR, Stereo (even better as mono). Power Supply: 24V DC @ 2 Amp Dimensions: ≈ 483W x 125D x 44H Weight: ≈ 1.6 kg Colour: Black Output Connectors: Audio Output: RCA Stereo Socket Emergency 24V DC Out: Euroblock terminal Common 24V DC Out: Euroblock terminal Prebell/Bell 24V DC Out: Euroblock terminal Standby 24V DC Out: Euroblock terminal Lock In 24V DC Out: Euroblock terminal Lock Out 24V DC Out: Euroblock terminal All Clear 24V DC Out: Euroblock terminal PLEASE NOTE: Maximum output load per output is 120mA Input Connectors: Paging Console Input: 4 x RJ45 8P8C Wall Plate Input: 4 x RJ45 8P8C 24V DC Power: Euroblock terminal 24V DC Power: 2.1mm JACK (centre +ve) PreBell, Bell, AuxMp3 triggers: Euroblock terminal Controls: MP3 Volume: Rear Volume Master Volume: Rear Volume Power: On/Off Switch Standby Switch: Illuminated Push Switch Lock In Switch: Illuminated Push Switch Lock Out Switch: Illuminated Push Switch

Read more less

The A 4573 module is capable of generating a variety of pre-announcement chimes and alert and evacuation tones for specific Redback® products. It comes equipped with separate volume controls for adjusting the levels of the alert/evac tones, chimes, and message/voice-over. The chimes and alert/evac tones can be activated by closing contacts through a five-way euro block and can be set to either momentary or alternate action via on-board DIP switches. The module features a selection of chime options, including pre-announcement, Ding Dong, repeating Bing, and repeating Bong, all of which are easily selectable through DIP switches.The module includes a switch over option for changing the evacuation tone after a designated time frame. The time can be adjusted from 30 seconds to 270 seconds in 30 second intervals, or it can be disabled altogether. Additionally, a microphone is included for recording an emergency voice-over message, which can be activated via DIP switches and will play twice after the evacuation tone is repeated four times.Important Note:The evacuation tone for this device conforms to fire evacuation standards AS1670.4.2004The evacuation tone (temporal pattern) conforms to international standards.Compatible Amplifiers - see accessories listed belowA 4037 40 Watt AmplifierA 4043 60 Watt AmplifierA 4047 100 Watt AmplifierA 4377A 125 Watt AmplifierA 4387A 250Watt AmplifierA 4275C 125 Watt AmplifierA 4285C 250 Watt AmplifierCompatible Mixers - see accessories listed belowA 4480AA 4480BSuitable Wallplates for remote triggering - see accessories listed belowA 2078BA 2081

Read more less

This unit is specifically designed to monitor the condition of 100V line speaker systems in emergency paging and fire evacuation installations. It can handle large commercial speaker circuits with loads of up to 250W per zone, whereas traditional line monitoring units were limited to 50W per zone. The A 4567C is capable of handling loads of up to 500W per zone. Its microprocessor controlled circuit provides continuous monitoring of loudspeaker lines for normal, open, or short circuit conditions. An LED indicator, with multiple colors, displays the line's condition for each zone. The Redback Line Monitoring Unit 10 Zone A4567C includes a built-in buzzer with a cancel button for audible alarm alerts. The unit also offers a switched output for remote monitoring in the event of a fault condition. The output is a ground signal and the unit provides three outputs: one for short circuit conditions, one for open circuit faults, and one combined output for any fault condition. The unit can be customized to work with multiple amplifiers. Dimensions: 482 x 152 x 44mm. Features 1U 19" rack mount Monitors 10 zones @ 500W max Configurable for use with 1 to 10 individual amplifiers. ie 1 amplifier per zone/circuit or 1 amplifier per many zones/circuits. Monitors normal, open and short circuit conditions Switched output for remote fault monitoring Pluggable terminals for all connections 24V dc operation Includes Power Supply Wiring RequirementsThis unit is specifically designed for "loop in loop out" serial wiring to loudspeakers and requires a 100kΩ terminating resistor at the end of the line. The use of star wiring or tee offs is strictly prohibited. In order for each loudspeaker to function properly, a series connected 22µf bipolar capacitor is also necessary. Additionally, a 10-second delay is included to minimize false alarms when detecting faults.A 4568 Zone Status InterfaceWhen using the A 4568, you can effectively track the state of every individual zone by setting up the interface in two different ways. The LED status can either indicate a normal or faulty state (without differentiating between open or short) or it can specifically display if there is an open or short. A Cat 5e patch lead is used to connect the A 4567C and A 4568, with screw terminals available for each zone.

Read more less

Integrate the A4567 Line monitoring unit with a fire indicator board using the A4568. This allows for individual zone status monitoring in two ways: 1. LED indicates normal or fault (no distinction between open or short). 2. LED indicates either short or open. A Cat 5e patch lead connects the A4567 and A4568, with screw terminals provided for each zone.

Read more less

This product, Redback Selection Panel 10 Zone PA Made in Australia A2080B, allows for the control of paging and background music in up to 10 speaker zones. It features an "all call" button and can be linked with other units to create unlimited zones. Connection is made through screw terminals on the rear panel. It is specifically designed for distributed PA systems in educational, recreational, and commercial environments. The unit is self-contained and does not require external power. Compatible with 100V or 70V line systems. Features 19" rack mount 10 zones & “All Call” 50W per zone Requires no power Units can be ganged together more zones Zone ID strip included

Read more less

Hearing loop amplifiers are designed to improve the listening experience for individuals who use hearing aids. They are commonly installed in noisy public areas where those with hearing impairments may struggle to hear. Both models comply with AS60118.4-2007 and feature a compressor/limiter circuit with a customized frequency response for clear speech intelligibility. They can handle loads of less than 2 ohms and are protected against short circuits, making them ideal for use in places of worship, community halls, and museums.The A 4212 280VA model delivers 8A RMS, 11A peak and is suitable for areas of approximately 650m2. Note that coverage may vary from site to site depending on outside influences such as steel reinforcement, high current electrical wiring etc.).Inputs are provided for balanced mic and line, auxiliary and an input with VOX muting for interfacing into venue emergency evacuation system.Suitable for 19" rack mounting with use of A4376 rack mount ears. Features Designed to meet AS60118.4-2007 Coverage up to 650m2 XLR line & mic inputs Aux input via stereo RCA EWIS signal connection (RCA) Short circuit proof Compressor for added speech intelligibility Adjustable VOX sensitivity Compatible with single loop designs

Read more less

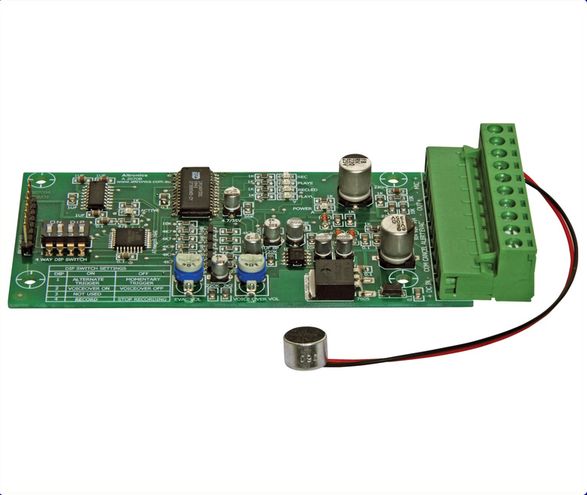

 Includes voice chip for recording custom messages.This compact self-contained module contains both the alert and evacuation tones based on the Australian standard, making it easily integrated with most PA amplifiers. The tones have been carefully designed to conform to AS1670.4, providing a professional and scientifically accurate solution. Features  Tones can be configured for single or continuous cycle operation Switched negative to operate inputs On board output level control Line level output max 1V All connections made via screw terminals CPU based Tones conform to Australian standard Provision for voice over in evacuation mode All tones crystal locked Compact size 53 x 107mm 7-35V DC operation

Read more less

This product features multiple controllers that can be set up in two configurations: five single inputs to five outputs or one input to five outputs. Each zone has a capacity of 100W, totaling up to 500W on the panel. The 100W model offers ten positions plus an off option. The rear panel has heavy-duty screw terminals for connecting the inputs and outputs. The controllers are contained in a 2 unit rack and come with an engraving strip for labeling speaker zones. They are specifically designed for use in 100V line commercial PA systems. Features Standard 2 unit (88mm) 19" rack mount dimensions Five Zone outputs Accepts 1 to 5 inputs Each zone has 10 positions plus off 500W total load capacity (100W per zone) Easy to terminate screw terminals Unit is supplied with an engraving strip which can be fitted with double sided tape (supplied) Includes 24V DC override relay for bypassing volume controller settings.

Read more less

The A2078B wall plate enables remote triggering of Alert and Evacuation tones, as well as the cancel function. This can be achieved by connecting a minimum of 6 wires from the A2078B to the A4500B. For optimal performance, a minimum of 8 wires should be used when connecting the A2081 to the A4500B. With the use of standard Cat5 cable, the plate can be positioned up to 30m away from the main unit. For longer distances of up to 100m, heavier gauge cable must be used to ensure proper voltage drop and LED illumination. The Alert/Evac/Chime/Cancel switches on the wall plate are directly connected to their corresponding contacts on the A4500B, while the Alert, Evac, and Bell LEDs are connected to the corresponding 24V outputs. The cancel LED does not require a connection. To simplify wiring, the ground connections can be linked together for the Alert, Evac.

Read more less

Expertly crafted for use with Redback Touch programmable touchscreen wallplates, the Redback 12 Relay Control Box can be utilized as a standalone system or as an expansion hub for the A 6505A. Featuring 12 relays with isolated voltage-free contacts that close upon operation, this control box is a reliable and versatile option. When paired with Redback Touch wallplates, the wallplate connection can extend up to 50m using a Cat5/6 cable. This hub then receives commands from the programmed plate and outputs the corresponding RS232/485 command signal to the pluggable terminals. This is ideal for controlling AV systems in spaces such as classrooms, lecture theatres, and board rooms. The serial outputs can be used to operate a projector and amplifier. 24V DC power is required, which also powers the connected wallplate.Size: 66W x 131W x 29H inc flanges.The relay hub can be used in three ways: Direct connection via Cat5/6 UTP cable to a Redback Touch wallplate, which is programmed to control relay activation. As an expansion to the A 6505A hub, increasing the total number of relay contacts from 3 to 15. In this configuration, one of the serial outputs of the A 6505A would be used to control the A 6510. These hubs should be located as close together as possible. As a standalone serial controlled relay hub for use with any third party system utilising RS232/485. Features Compatible with Redback Touch wallplates or third party serial control systems. RS232/485 input. Twelve relay outputs. Operation indicators on all relay outputs. Wallplate connection via standard UTP cabling. Powered by 24V DC input (passes power to wallplate – power supply sold separately)

Read more less

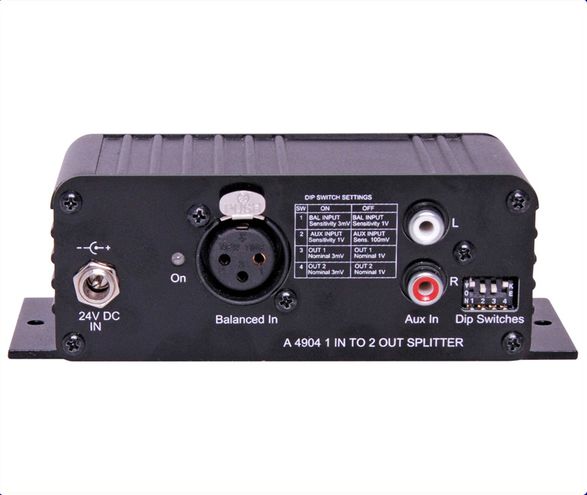

This audio splitter, the Redback 1 In to 2 Out Audio Splitter A4904, features a compact design and multiple input/output configurations. With a 3 pin XLR input that can be set for 3mV or 1V sensitivity and an RCA auxiliary input that can be configured for 100mV or 1V sensitivity, this device provides two output sockets for each input. The input and output sensitivity can be easily adjusted using DIP switches, while dedicated volume controls allow for fine-tuning of each output. This splitter operates using a 24V dc external power source.Dimensions: 112W x 45H x 55Dmm (excluding 12mm flanges).This unit does not include a power supply. Requires 24V DC @ 500mA. Suitable plugpack M 8968C. Features 1 input to 2 outputs Adjustable input and output signals Individual volume controls for each output Internally selectable phantom power available on XLR input 24V dc operation Compact design, 25H x 105W x 81D mm

Read more less
