Description

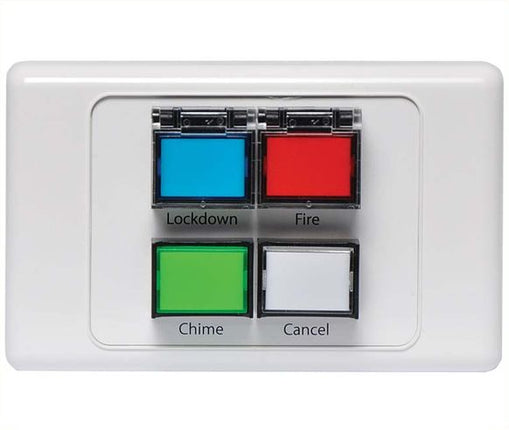

The Redback A2069 Remote Wall Plate is designed to provide convenient remote operation of the Redback A4505 Lockdown Timer, allowing users to trigger Lockdown, Fire, Chime, and Cancel functions from a secondary location.
Ideal for schools, commercial buildings, and emergency notification systems, the A2069 can be installed up to 100 metres from the main unit, offering flexible system integration and reliable remote control functionality.
Key Features
-
Designed for Redback A4505 Systems
Specifically built for use with the Redback A4505 Lockdown Timer
-
Four Dedicated Function Buttons
Includes:
- Lockdown
- Fire
- Chime
- Cancel
-
Remote Installation Capability
Can be mounted up to 100m from the main unit
-
LED Illuminated Switches
Clear visual indication for operation status
-
Flexible Cabling Options
Supports standard Cat5/6 cable up to approximately 30m
-
Screw Terminal Connections
Secure and installer-friendly wiring termination
Applications
Perfect for:
- School lockdown systems
- Emergency alert systems
- Commercial building notification systems
- Public address and evacuation systems
- Remote trigger control installations
Specifications
-
Brand: Redback
-
Model: A2069
-
Compatibility: Redback A4505 Lockdown Timer
-
Functions: Lockdown, Fire, Chime, Cancel
-
Maximum Distance: Up to 100m
-
Cable Requirements: Minimum 8 wires
-
Recommended Cable:
- Cat5/6 suitable up to approx. 30m
- Heavy-duty cable recommended beyond 30m
-
Connection Type: Screw terminal
Important Installation Notes
- Installations exceeding 30m may require heavier duty cable to minimise voltage drop and ensure correct LED operation.
- Requires a minimum of 8 conductors for connection.
Why Choose the Redback A2069?
The A2069 provides a simple and reliable way to extend control access for critical lockdown and emergency systems. Its robust design, flexible installation distance, and dedicated function buttons make it ideal for professional commercial audio and safety installations.
