Description

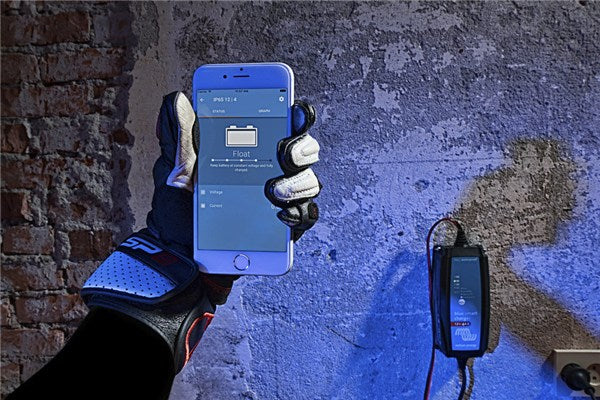

This professional smart charger offers superior battery maintenance through its 7-step charging algorithm, and its force-fed low current function can even revive 'dead' lead-acid batteries. LEDs and one-button operation indicate the charging status and battery condition, while Bluetooth connectivity allows for real-time settings adjustments. In addition, 40 charge cycles' data can be accessed graphically, along with expert settings for optimum charging. The IP65 rating makes it ideal for workshops, and safety features provide protection against reverse polarity, shorts, and overheating. It ships with both protected battery clamps and M6 eye terminals, and it can also serve as a power supply for 12V devices in a workshop. Mains powered.
Charging modes:
- Test/Charge
- Bulk
- Absorption
- Recondition
- Float
- Storage
- Refresh
FEATURES
- Supports Lead-acid and LiFePO4 12V batteries
- IP65 rated
- Bluetooth® connectivity
- Android, iOS/Mac® compatible App
- High efficiency & Silent Operation
Four models to choose from:
- MB3950: 12V 5A. Supports lead-acid batteries from 7Ah to 50Ah or Li-ion batteries from 4Ah to 50Ah.

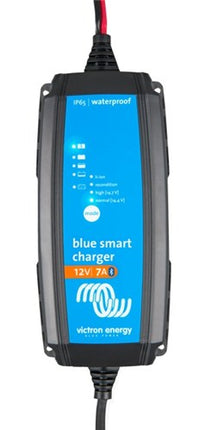

- MB3952: 12V 7A. Supports batteries from 7Ah up to 70Ah or Li-ion batteries from 4Ah to 70Ah.
- MB3954: 12V 10A. Supports batteries from 10Ah up to 100Ah or Li-ion batteries from 6Ah to 100Ah.
- MB3956: 12V 25A. Supports batteries from 33Ah up to 250Ah or Li-ion batteries from 20Ah to 250Ah.
SPECIFICATIONS
Charge Voltage:
- Absorption: 14.4-14.7V (14.2V Li-ion)
- Float: 13.8V (13.5V Li-ion)
- Storage: 13.2V (13.5V Li-ion)
Specifications
- IP Rating: IP65
- Dust/Particle Ingress Protection: 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection: 5 - Water jets
- Length: 190mm
- Width: 95mm
- Height: 47mm
- Weight: 900g
- Mains Voltage Range: 220V, 250V
- Frequency: 50Hz, 50Hz
- Mains Max Current: 0.6A
- Packaged Volume: 2.66l
- Packaged Weight: 1kg
- Packaged Length: 28cm
- Packaged Width: 19cm
- Packaged Height: 5cm
- Type of Batteries: Sealed Lead Acid (SLA)Lithium Ferrous Phosphate (LiFePO4)
- Charger Output Voltage: 14.4V
- Charger Output Current: 7A
- Controller Type: Multi-Stage
- Connection Type: M6/M8 EyeletAlligator Clips
- Additional Functions: Short Circuit ProtectionOverload ProtectionSafety Timer ProtectionBluetooth Monitoring
- Charger Input Voltage: 12V
- Battery Capacity Range Up to: 70Ah
- Cable Length: Output Cable Length: 1.5mMains Cable Length: 1.5m
