Description
The UHF Wireless Microphone System With Handheld Mic 16 Ch is perfect for events, clubs, function centers, and more. This entry-level system provides 16 channels of interference-free operation and clear, crisp sound reproduction. It comes with a handheld microphone transmitter and outputs audio signal via XLR or 6.35mm jack. Front panel LED indicators show active antenna and audio levels. Enjoy hassle-free sound with this reliable system.
Features
- 16 Channels in 520 - 550MHz UHF Band
- RF and AF signal presence LEDs
- Tone squelch circuit for noise reduction
- Range up to 70m in ideal conditions
- 6.35mm unbalanced line/mic output
- 3 pin balanced XLR mic output
- Microphone transmitters require 2 x AA batteries (not included).
Note:
- Requires 2 x AA batteries (sold separately)
- Supplied complete with handheld transmitter microphone
Further Technical Info below:

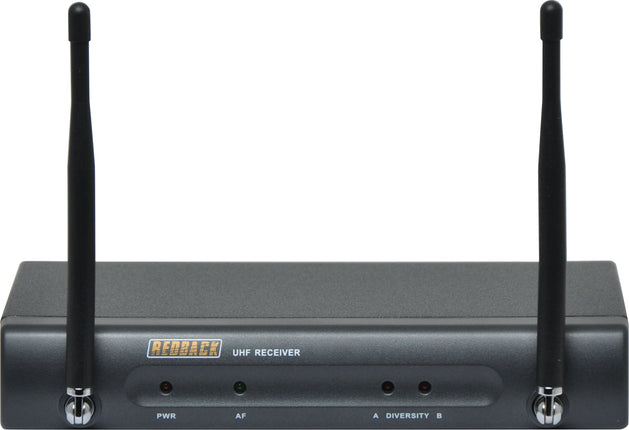

Receiver
- Carrier Frequency Range: 520-550MHz UHF band
- Frequency Stability: ±0.005%
- Oscillator: PLL Synthesised
- Receiving Sensitivity: 10µV over 80dB S/N ratio
- Image and Spurious Rejection: 80dB minimum
- Selectivity: >50dB
- Modulation Mode: FM
- IF Frequency: 1st: 243.95MHz; 2nd: 10.7MHz
- Tone Signal: 32.768kHz
- S/N ratio: >94dB, at 48kHz deviation and 60dBµV antenna input
- Audio Frequency Response: 50Hz to 15kHz (±3dB)
- Total Harmonic Distortion: Less than 1.0% (at 1kHz)
- Power Supply: 12V d.c.
- Audio Output: Balanced and unbalanced outputs for Single channel / Switching diversity (Mic.=-20dB / Line = 0dB)
- Current consumption: 130mA (max.)
- Dimensions (mm) WxHxD: 170 x 32 x 106
Transmitters
- Carrier Frequency Range: 520-550MHz UHF band
- RF Power Output: 10mW (max.)
- Oscillation Mode: PLL synthesized, 16 Channel selectable
- Frequency Stability: ±0.005%
- Maximum Deviation: ±48kHz with limiting compressor
- Spurious Emission: >60dB below carrier frequency
- Total Harmonic Distortion: <1% (at 1kHz)
- Microphone Capsule: uni-directional electret condenser unit
- Battery: 3V d.c. (2 x 1.5V AA size batteries ) or 2.4V d.c. ( 2 x 1.2V AA size rechargeable batteries)
- Current consumption: 120mA +/- 5mA
Frequency Channel List
- CH 1: 520.125MHz
- CH 2: 520.825MHz
- CH 3: 521.925MHz
- CH 4: 525.025MHz
- CH 5: 525.925MHz
- CH 6: 528.525MHz
- CH 7: 529.425MHz
- CH 8: 532.325MHz
- CH 9: 534.225MHz
- CH 10: 535.625MHz
- CH 11: 541.125MHz
- CH 12: 543.225MHz
- CH 13: 544.125MHz
- CH 14: 544.825MHz
- CH 15: 545.725MHz
- CH 16: 549.525MHz
-
Suggested Channel Groupings
- Use these channel selections when using multiple transmitters in the same area.
- Group A: Channels 1, 2, 3, 6, 7, 9, 10, 16.
- Group B: Channels 2, 5, 7, 8, 9, 10, 11, 14.
- Group C: Channels 1, 3, 5, 7, 9, 10, 11, 13.
- Group D: Channels 2, 4, 8, 10, 12, 14, 15, 16.
