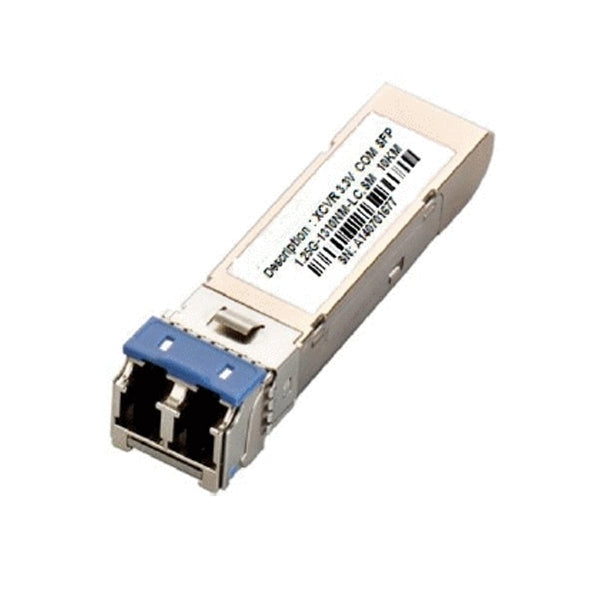

TSFP-G-LX10-T SFP Duplex 1.25Gbps Transceiver: The Optimal Solution for Single-Mode Fiber Communication

Description

The TSFP-G-LX10-T SFP Duplex 1.25Gbps Transceiver is the optimal solution for single-mode fiber communication. It provides high-speed, reliable connections with an industry-standard speed of 1.25Gbps with minimal power consumption. This transceiver is designed to ensure secure, reliable data transmission over long distances for a range of applications, an advanced SFP duplex transceiver designed for single-mode fiber (SMF) communications. With a 1.25Gbps operation at a nominal 1310 nm wavelength, this transceiver delivers both cost-effectiveness and peak performance, making it your ideal partner for seamless fiber communication.

Key Features and Benefits:

  • Compact Design & MSA Compliance: This small form-factor pluggable (SFP) module is equipped with a standard duplex connector, offering convenience and ease of integration. It also complies with the Small Form Factor Pluggable MSA and SFF-8472 MSA standards.

  • Single 3.3V Power Supply & Differential Inputs/Outputs: The transceiver operates with a single 3.3V power supply, contributing to its overall efficiency. Plus, its differential inputs and outputs further enhance its performance and reliability.

  • Digital Diagnostic Monitor (DDM): Compliant with the SFF-8472 MSA Digital Diagnostic Monitor, it provides an internal calibration feature, ensuring accurate readings.

  • High-Performance Transmitter: The transmitter incorporates a top-tier 1310 nm Febry-Perot (FP) laser within its optical subassembly (OSA), all housed in a durable metal package.

  • Compliance with Safety Standards: Adhering to international safety standards, this transceiver is class 1 laser compliant according to the International Safety Standard IEC 825, EN60825-1, and FDA 21 CFR 1040.10 and 1040.11.

  • Efficient Receiver: Its efficient receiver features an InGaAs PIN photodiode coupled with a sensitive transimpedance amplifier (TIA) within the OSA. This combination works alongside a post-amplifier IC, offering both amplification and SD (Signal Detection) or LOS (Loss of Signal) indicators.

  • Robust Operating Temperature Range: Designed for challenging environments, the TSFP-G-LX10-T operates reliably within a wide temperature range of -40°C to +85°C.

  • RoHS Compliance: As part of our commitment to environmental sustainability, this transceiver complies with RoHS standards.

The TSFP-G-LX10-T SFP Duplex Transceiver is not just a product; it's a step towards more efficient and reliable single-mode fiber communication. Equip your business with top-tier technology today.

Regulatory Compliance
  • ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.4 •
  • ESD to the LC Receptacle: compatible with IEC 61000-4-3
  • EMI/EMC compatible with FCC Part 15 Subpart B Rules, EN55022:2010
  • Laser Eye Safety compatible with FDA 21CFR, EN60950-1& EN (IEC) 60825-1,2
  • RoHS compliant with EU RoHS 2.0 directive 2015/863/EU



Read more

Product form
💰 You save $43.00 (33% off RRP)

$128.00  $85.00

Free pickup in our shop(s)
    📦 Order now ships tomorrow morning
    • Free shipping Australia-wide. Every order over $50. No exceptions.
    • 30-day returns. No hassle. Even if you just changed your mind.
    • Secure checkout. Your payment is encrypted and protected.

    The TSFP-G-LX10-T SFP Duplex 1.25Gbps Transceiver is the optimal solution for single-mode fiber communication. It provides high-speed, reliable connections with... Read more

    • Secure & safe checkout

      paypal
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa
    🇦🇺 Aussie Owned 📦 44,000+ Orders Shipped

    Description

    The TSFP-G-LX10-T SFP Duplex 1.25Gbps Transceiver is the optimal solution for single-mode fiber communication. It provides high-speed, reliable connections with an industry-standard speed of 1.25Gbps with minimal power consumption. This transceiver is designed to ensure secure, reliable data transmission over long distances for a range of applications, an advanced SFP duplex transceiver designed for single-mode fiber (SMF) communications. With a 1.25Gbps operation at a nominal 1310 nm wavelength, this transceiver delivers both cost-effectiveness and peak performance, making it your ideal partner for seamless fiber communication.

    Key Features and Benefits:

    • Compact Design & MSA Compliance: This small form-factor pluggable (SFP) module is equipped with a standard duplex connector, offering convenience and ease of integration. It also complies with the Small Form Factor Pluggable MSA and SFF-8472 MSA standards.

    • Single 3.3V Power Supply & Differential Inputs/Outputs: The transceiver operates with a single 3.3V power supply, contributing to its overall efficiency. Plus, its differential inputs and outputs further enhance its performance and reliability.

    • Digital Diagnostic Monitor (DDM): Compliant with the SFF-8472 MSA Digital Diagnostic Monitor, it provides an internal calibration feature, ensuring accurate readings.

    • High-Performance Transmitter: The transmitter incorporates a top-tier 1310 nm Febry-Perot (FP) laser within its optical subassembly (OSA), all housed in a durable metal package.

    • Compliance with Safety Standards: Adhering to international safety standards, this transceiver is class 1 laser compliant according to the International Safety Standard IEC 825, EN60825-1, and FDA 21 CFR 1040.10 and 1040.11.

    • Efficient Receiver: Its efficient receiver features an InGaAs PIN photodiode coupled with a sensitive transimpedance amplifier (TIA) within the OSA. This combination works alongside a post-amplifier IC, offering both amplification and SD (Signal Detection) or LOS (Loss of Signal) indicators.

    • Robust Operating Temperature Range: Designed for challenging environments, the TSFP-G-LX10-T operates reliably within a wide temperature range of -40°C to +85°C.

    • RoHS Compliance: As part of our commitment to environmental sustainability, this transceiver complies with RoHS standards.

    The TSFP-G-LX10-T SFP Duplex Transceiver is not just a product; it's a step towards more efficient and reliable single-mode fiber communication. Equip your business with top-tier technology today.

    Regulatory Compliance
    • ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.4 •
    • ESD to the LC Receptacle: compatible with IEC 61000-4-3
    • EMI/EMC compatible with FCC Part 15 Subpart B Rules, EN55022:2010
    • Laser Eye Safety compatible with FDA 21CFR, EN60950-1& EN (IEC) 60825-1,2
    • RoHS compliant with EU RoHS 2.0 directive 2015/863/EU
