Description

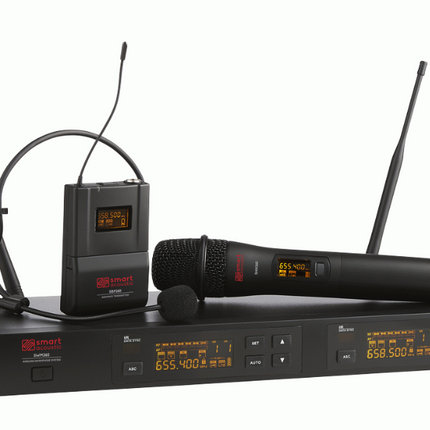

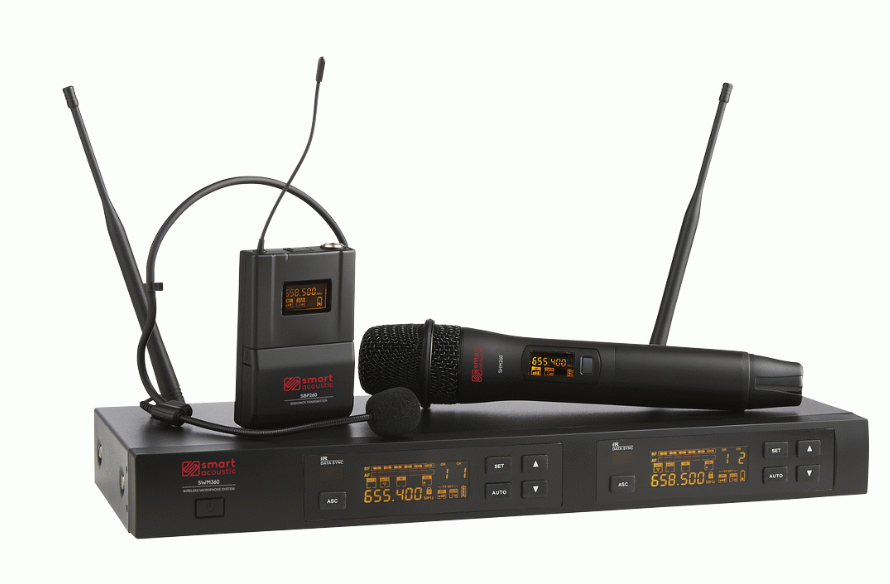

Smart Acoustic SWM360HTBP Wireless Mic & Bodypack System (655–679 MHz)
Dual Wireless Microphone System with Handheld Mic, Headset, Bodypack & True Diversity Receiver
Reliable, Professional Wireless Performance for Any Event
The Smart Acoustic SWM360HTBP Wireless Microphone System is a flexible and high-performance dual wireless setup for live shows, corporate events, speeches, teaching, worship, fitness instruction, and more. Featuring a true diversity receiver, 120+ selectable channels, and operation in the 655–679 MHz frequency band, it delivers stable, interference-resistant audio with excellent clarity.
This system includes both a handheld microphone and a bodypack transmitter, giving you a complete solution for practically any application. Designed for ease of use and robust performance, the SWM360HTBP is ideal for professionals and venues needing reliable wireless capability.
Key Features
-
Dual Wireless System – Includes handheld mic + headset with bodypack
-
True Diversity Receiver – Minimises dropouts for rock-solid stability
-
120 Channels / 160+ Selectable Frequencies – Easily avoid interference
-
Automatic Frequency Selection – Fast setup with IR sync
-
Working Range: Up to 100 metres
-
LCD Displays – Real-time RF, audio, battery & channel info
-
Adjustable Gain – Optimise each transmitter’s input
-
Rugged Metal Chassis – Durable build for touring and production use
-
Ideal Frequency Band (655–679 MHz) – Legal & reliable in Australia
-
Multi-Receiver Compatibility – Supports up to 8 systems in parallel
What’s Included
- SHM260 Handheld Transmitter
- SBP260 Bodypack Transmitter
- 2 × Antennas
- User Guide
- Lapel Microphone
- 1/4" Audio Cable
- Power Adapter
- 2 × Rack Panels
- 2 × Batteries
Ideal For
- Bands & live performers
- Public speaking, conferences & corporate events
- Fitness instructors & dance studios
- Churches, schools & community centres
- Event hire & production companies
Technical Overview
Receiver (SWM360)
-
Frequency Range: 500–937.5 MHz
-
Operating Band: 655–679 MHz
-
Range: 100m
-
Max Channels: 192
-
Audio Range: 50Hz–15kHz (±3dB)
-
Dynamic Range: >105dB
-
S/N Ratio: >102dB(A)
-
Outputs: XLR ×1, 1/4" Jack ×1
-
Power: 12V/0.5A DC
-
Dimensions: 160 × 212 × 44mm

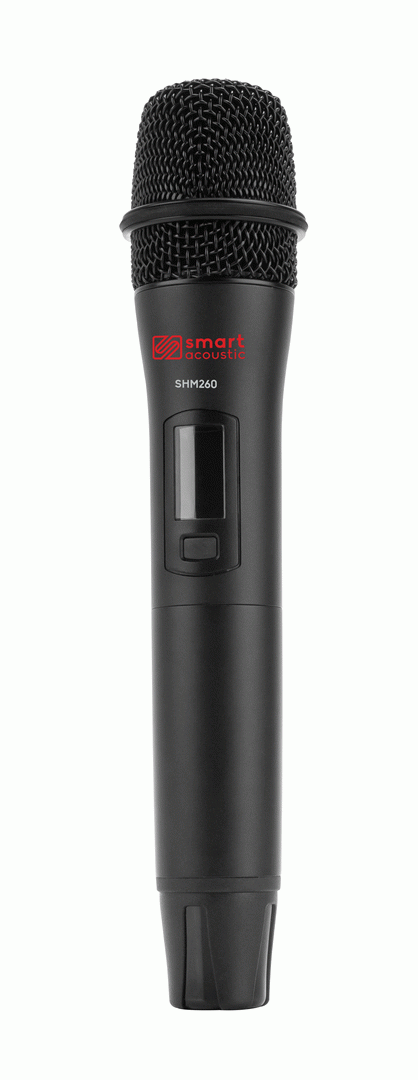

Handheld Transmitter (SHM260)
-
Gain: 0 / 3 / 6 dB
-
RF Power: 2 / 10 / 30mW
-
Battery Life: >8 hours
-
Dimensions: 250 × 50mm | Weight: 360g
Bodypack Transmitter (SBP260)
-
Input: 5KΩ
-
RF Power: 2 / 10 / 30mW
-
Battery Life: >8 hours
-
Dimensions: 165 × 65 × 23mm | Weight: 130g
Why Choose the Smart Acoustic SWM360HTBP?
This system delivers excellent sound quality, unmatched flexibility, and professional-grade wireless reliability. With both handheld and bodypack options included, it adapts to any performance environment while maintaining stable, clear transmission.
