Description

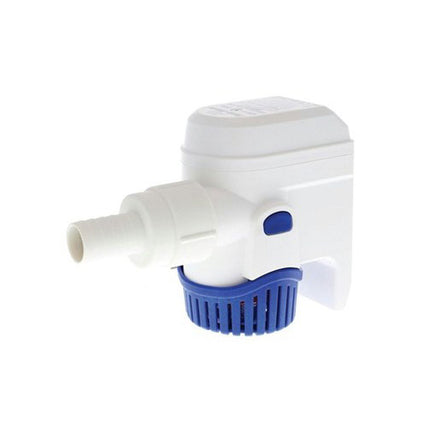

Rule-Mate RM800B 800GPH 12V Automatic Bilge Pump
Compact, Powerful, and Reliable – Built for Modern Boaters
The Rule-Mate RM800B is a fully automatic submersible bilge pump designed with advanced water level sensing technology, offering high performance and a compact design. Manufactured by RULE, a brand trusted for over 50 years, this pump delivers reliability, efficiency, and peace of mind for boat owners and builders alike.
Key Features:
-
Automatic Water Level Sensor:
Activates at 62mm water height and shuts off at 16mm, ensuring water is removed efficiently without constant monitoring.
-
Compact Footprint:
Now only 2/3 the size of previous models—perfect for tight spaces in modern boats.
-
High Flow Rate:
Delivers 800 US GPH (50 litres/min) at open flow.
-
Dual Outlet Options:
Comes with 25mm (1") and 28mm (1 1/8") straight hose outlets for flexible installation.
-
Check Valve Included:
Prevents water backflow into the bilge.
-
Anti-Airlock Design:
Hidden air vents in the pump body eliminate air locks in challenging installations.
-
Energy Efficient:
No power drain when not pumping—battery-friendly design.
-
Built-in Safety:
Includes a thermal cut-out (TCO) and safety backup mode to prevent overrun if blocked by debris.
-
Manual Check Feature:
Press and hold the “Touch Here” button for 5 seconds to test pump operation.
-
Easy Installation:
Integrated wiring for sensor and pump, threaded discharge nozzle, removable strainer, and optional 3rd wire for manual override via a Rule switch panel.
Specifications:
-
Flow Rate: 800 GPH (50 L/min)
-
Voltage: 12V
-
Material: Durable plastic body (White & Blue)
Dimensions:
-
-
Width: 73 mm
-
Height: 112 mm (excluding discharge)
Packaged Dimensions:
-
Length: 21.5 cm
-
Width: 17 cm
-
Height: 10 cm
-
Weight: 0.54 kg
-
Volume: 3.66 L
Why Choose the Rule-Mate RM800B?
✔️ Fully automatic operation
✔️ Compact and easy to install
✔️ No battery drain while idle
✔️ Trusted brand with decades of marine experience
✔️ Built-in safety and anti-airlock systems
Perfect for small to mid-sized boats, the Rule-Mate RM800B is a must-have for reliable bilge management in demanding marine conditions.
