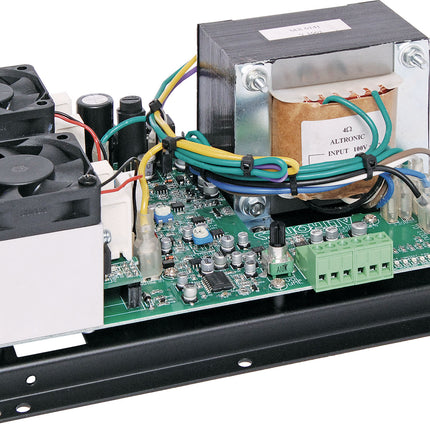

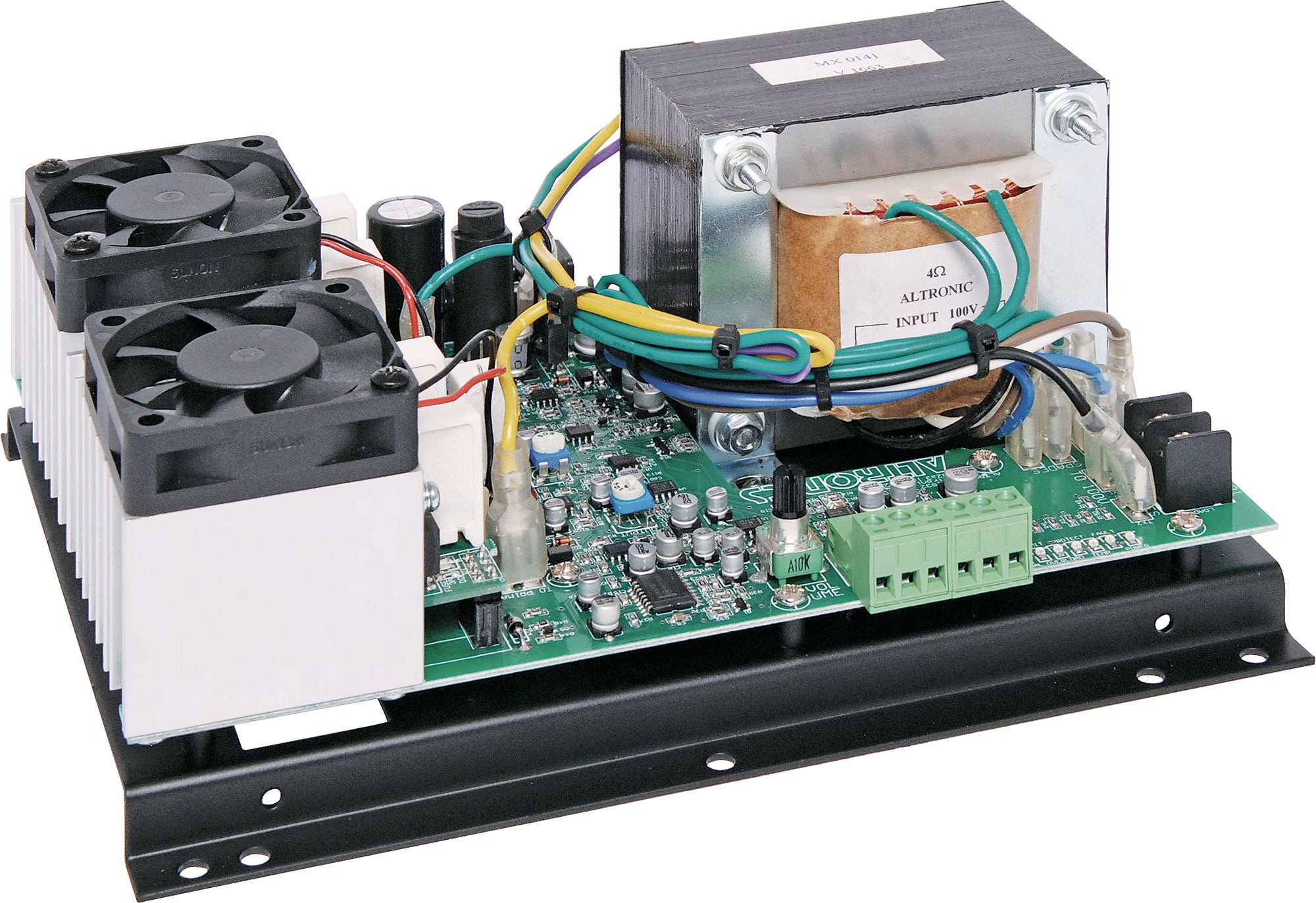

Redback PA Amplifier Module 60W A1922 Made in Australia

Description

These modules are specifically engineered for incorporation into emergency evacuation systems. They require an external 24V DC power supply and support line level audio input, generating a 100V line output using a built-in transformer. The modules boast protection from short circuits, overloads, and thermal cutout, and are built on a durable steel chassis.

Features

  • Powered by 24V DC
  • 100V line audio output
  • Line level audio input
  • Short circuit, overload and thermal cutout protection
  • Bolt-in chassis construction

    Specifications

    • Output Power: 60W RMS
    • Current Draw: 3.8A at full load (100mA quiescent)
    • Frequency Response: 45Hz - 12kHz
    • Distortion: <0.3%
    • SNR: -94dB
    • Sensitivity: 600mV RMS
    • Protection: 4A
    • Operating temperature: -10°C to +60°C
    • Dimensions: 210W x 170D x 85H

    Product form

    These modules are specifically engineered for incorporation into emergency evacuation systems. They require an external 24V DC power supply and... Read more

    SKU: AL-A1922
    Barcode: 9321758218433

    5 in stock All Orders now shipped 6th January  Delivery times may vary based on your location and AU Post's service standards.

    $359.00 $349.00

      • Free shipping on all orders over $99*
      • 30 Day free no hassle returns - Even if you change your mind!
      • Secure Checkout Process! Shop with confidence!

      Description

      These modules are specifically engineered for incorporation into emergency evacuation systems. They require an external 24V DC power supply and support line level audio input, generating a 100V line output using a built-in transformer. The modules boast protection from short circuits, overloads, and thermal cutout, and are built on a durable steel chassis.

      Features

      • Powered by 24V DC
      • 100V line audio output
      • Line level audio input
      • Short circuit, overload and thermal cutout protection
      • Bolt-in chassis construction

        Specifications

        • Output Power: 60W RMS
        • Current Draw: 3.8A at full load (100mA quiescent)
        • Frequency Response: 45Hz - 12kHz
        • Distortion: <0.3%
        • SNR: -94dB
        • Sensitivity: 600mV RMS
        • Protection: 4A
        • Operating temperature: -10°C to +60°C
        • Dimensions: 210W x 170D x 85H
