Description
The Redback impedance meter is an essential tool for PA system installers. It accurately measures low impedance loudspeaker systems, incorporating multiple speakers and crossovers, as well as commercial 70V or 100V line speaker systems with line transformers and multiple meters of cable. Standard multimeters are not suitable for such measurements, making the Redback Q 2007 a necessary device for this purpose. It can handle loads up to 5k Watts in power for both 100V and 70V line systems, and unlike most impedance meters on the market, it displays speaker loads in watts instead of ohms. This expertly designed and manufactured device by Redback simplifies the process for installers and provides precise results.
The built-in system check mode allows the operator to produce a 1KHz test tone through the connected speaker line, ensuring that all speakers on the line are functioning properly.
Features
-
Suitable for 50V, 70V and 100V line speaker systems up to 5kW
-
Also suitable for measuring low Impedance speaker loads of 4 -16Ω
-
OLED display shows Impedance and Wattage of the load
-
1Ω to 20KΩ test range
-
Auto ranging
-
Display accuracy +/-10%
-
Push button operation
-
System Check Mode (20, 60 or unlimited minutes)
-
5V Rechargeable Lithium Polymer internal battery
-
Low battery indication
-
Buzzer and Haptic feedback option via Menu access
-

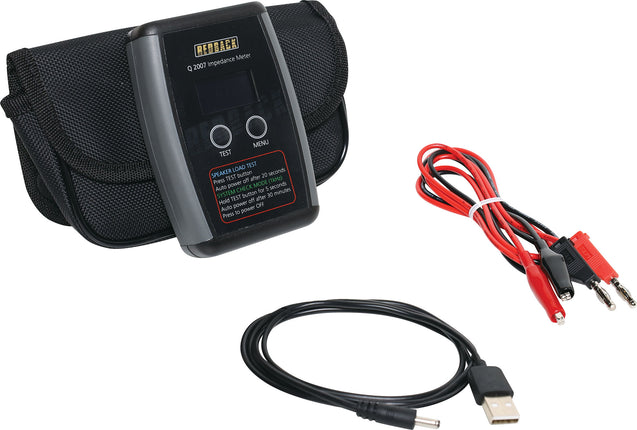

USB Charging lead supplied
-
Silicon Test Leads supplied
-
Soft Carry Case Included
- Rugged yet easy to hold compact hand-held case
