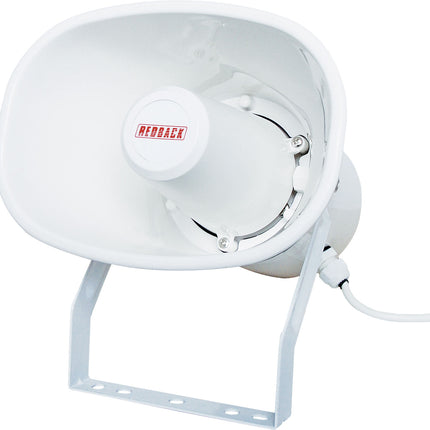

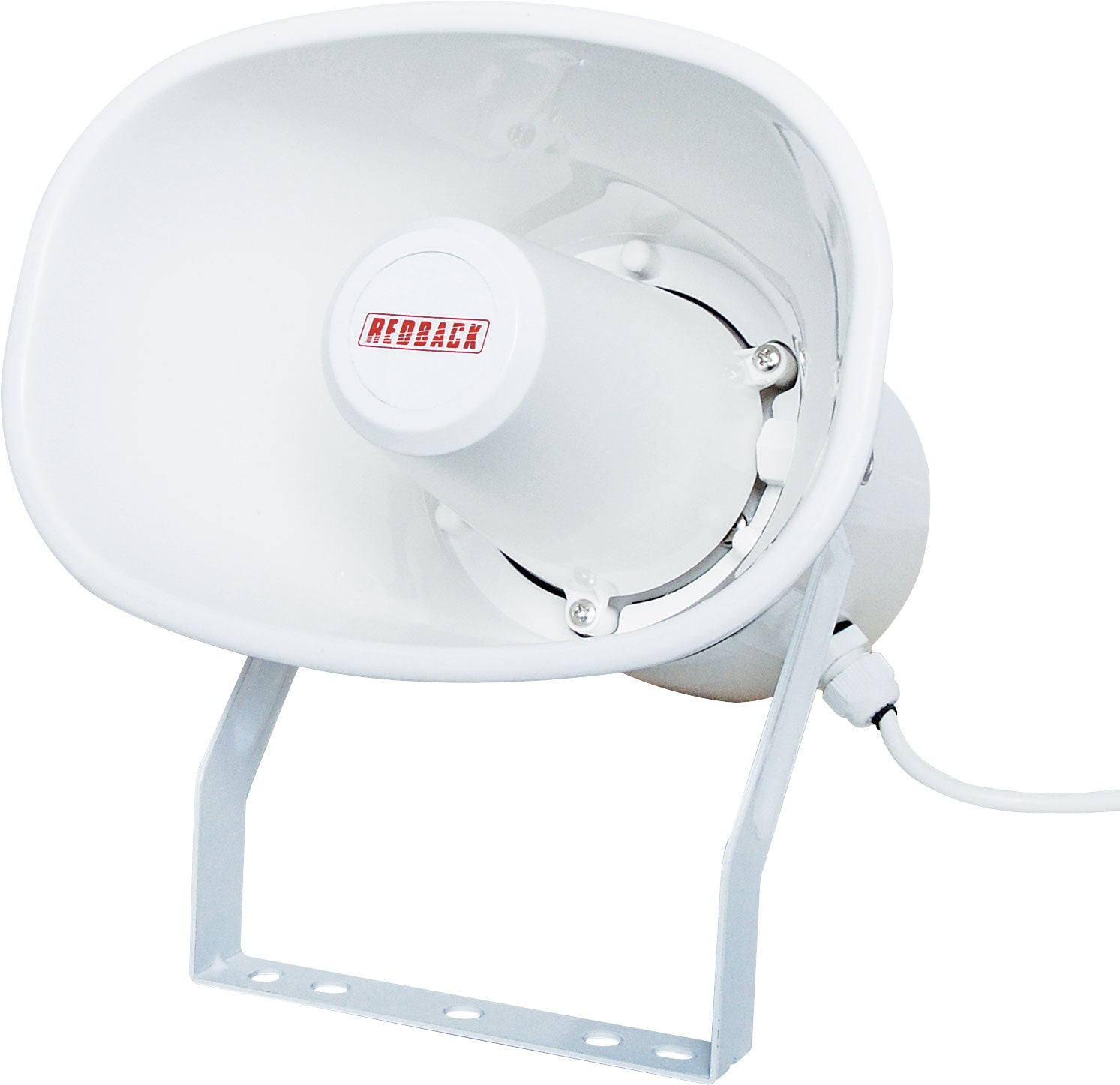

REDBACK 10W 100V EWIS IP66 White Plastic PA Horn Speaker C2051

Description

Redback 10W 100V EWIS IP66 PA Horn Speaker – White

Weatherproof Installation Horn Speaker with Fast-Mount Dog Leg Bracket

📢 High-Intelligibility Paging for Commercial & Emergency Systems

The Redback 10W 100V EWIS IP66 PA Horn Speaker is engineered for professional public address and emergency warning installations where clear speech intelligibility is essential. Designed for both indoor and outdoor environments, this horn speaker provides reliable performance in demanding locations such as schools, transport terminals, airports, car parks, and industrial facilities.

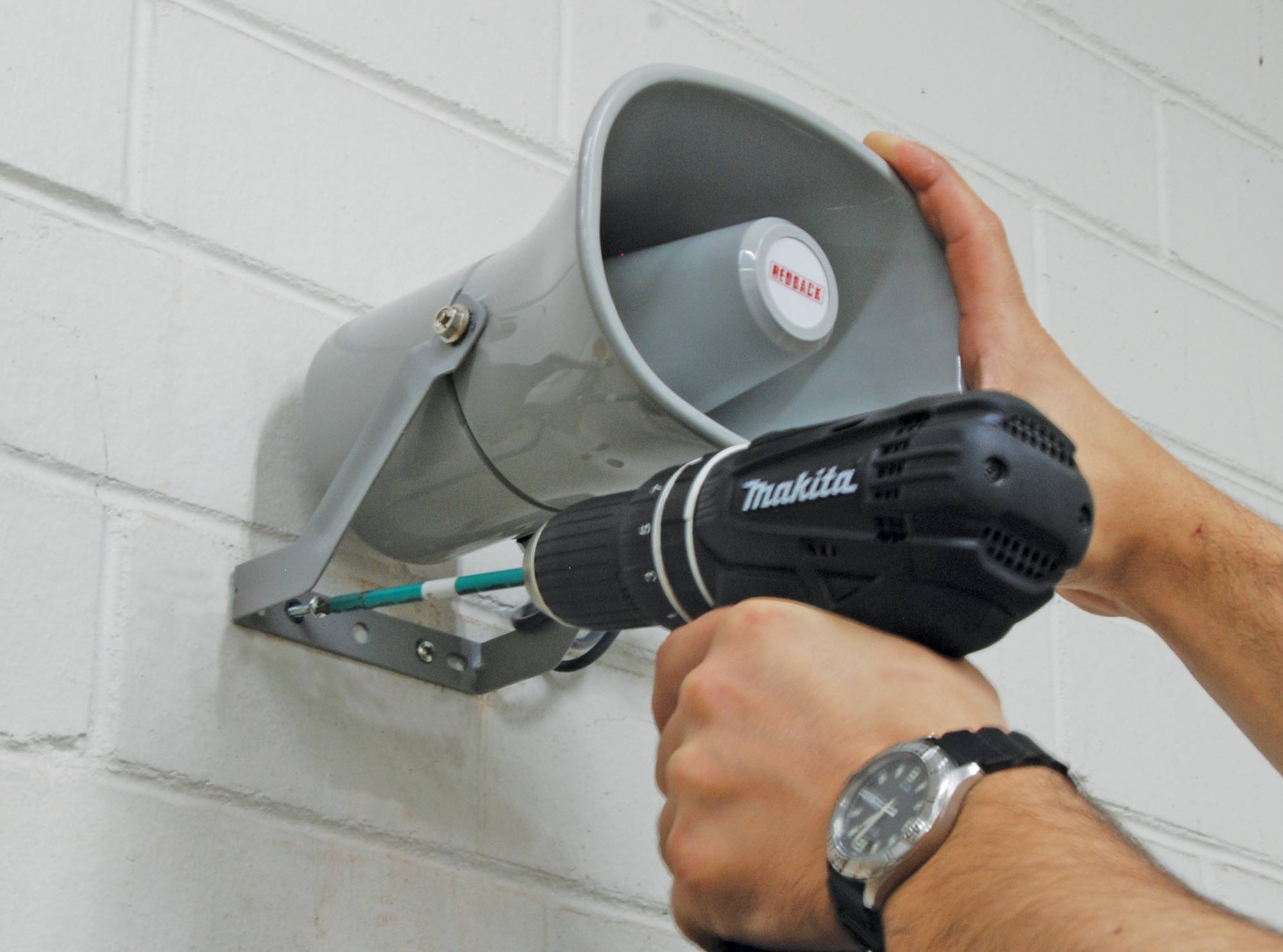

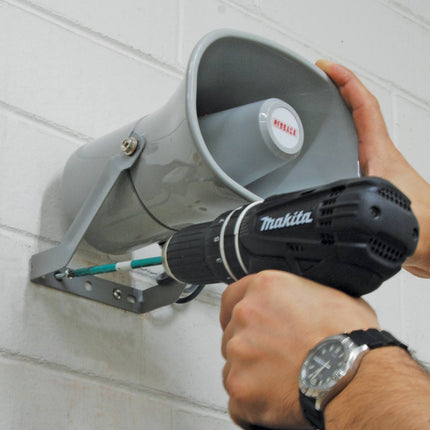

An innovative dog leg mounting bracket eliminates the need to remove the horn during installation, allowing installers to mount the unit directly to the wall surface. This design significantly reduces installation time and labour while ensuring a secure and professional finish.


Key Features

  • Exclusive Dog Leg Mounting Bracket – Faster installation without removing the horn
  • IP66 Weatherproof Rating – Suitable for outdoor and harsh environments
  • UV Stabilised ABS Construction – Long-lasting performance even in direct sunlight
  • Excellent Speech Intelligibility – Ideal for paging and emergency announcements
  • Wide Sound Dispersion – Provides consistent coverage across large areas
  • Selectable Power Taps – Adjustable via rear switch
  • EWIS Line Monitoring Compatible – Includes 22µF bipolar isolation capacitor
  • Loop Through Wiring – Supplied with 4-core fly lead for easy installation
  • Corrosion-Resistant Hardware – Nickel-plated chrome fittings
  • 5-Year Manufacturer Warranty

Ideal Applications

  • Schools and education facilities
  • Train and bus stations
  • Airports and transport hubs
  • Car parks and outdoor areas
  • Industrial plants and warehouses
  • Emergency warning and evacuation systems

Technical Specifications

Power Taps:
  • 1.25W / 2.5W / 5W / 7.5W / 10W
Sound Pressure Level:
  • 104dB @ 1W / 1m (±2dB)
  • 114dB @ max tap / 1m (±2dB)
Frequency Response:
  • 340Hz – 10kHz
Dispersion Angle (1kHz):
  • 160° vertical
  • 130° horizontal
Driver Construction:
  • Aluminium voice coil former
Connection:
  • 4-core fly lead
EWIS Monitoring:
  • 22µF bipolar isolation capacitor fitted
Mounting Depth:
  • 255mm
Weight:
  • 1.2kg
Operating Temperature:
  • -20°C to +55°C
Relative Humidity:
  • <95%
Specifications subject to change without notice.

Warranty

5 Year Manufacturer Warranty from the date of purchase.


Why Choose the Redback EWIS Horn Speaker?

The Redback 10W IP66 PA Horn Speaker combines excellent speech clarity, rugged outdoor construction, and installer-friendly design. With its quick-install bracket and EWIS compatibility, it’s a reliable choice for distributed paging systems and emergency communication networks.

Read more

Product form

$71.25  $67.50
