Description

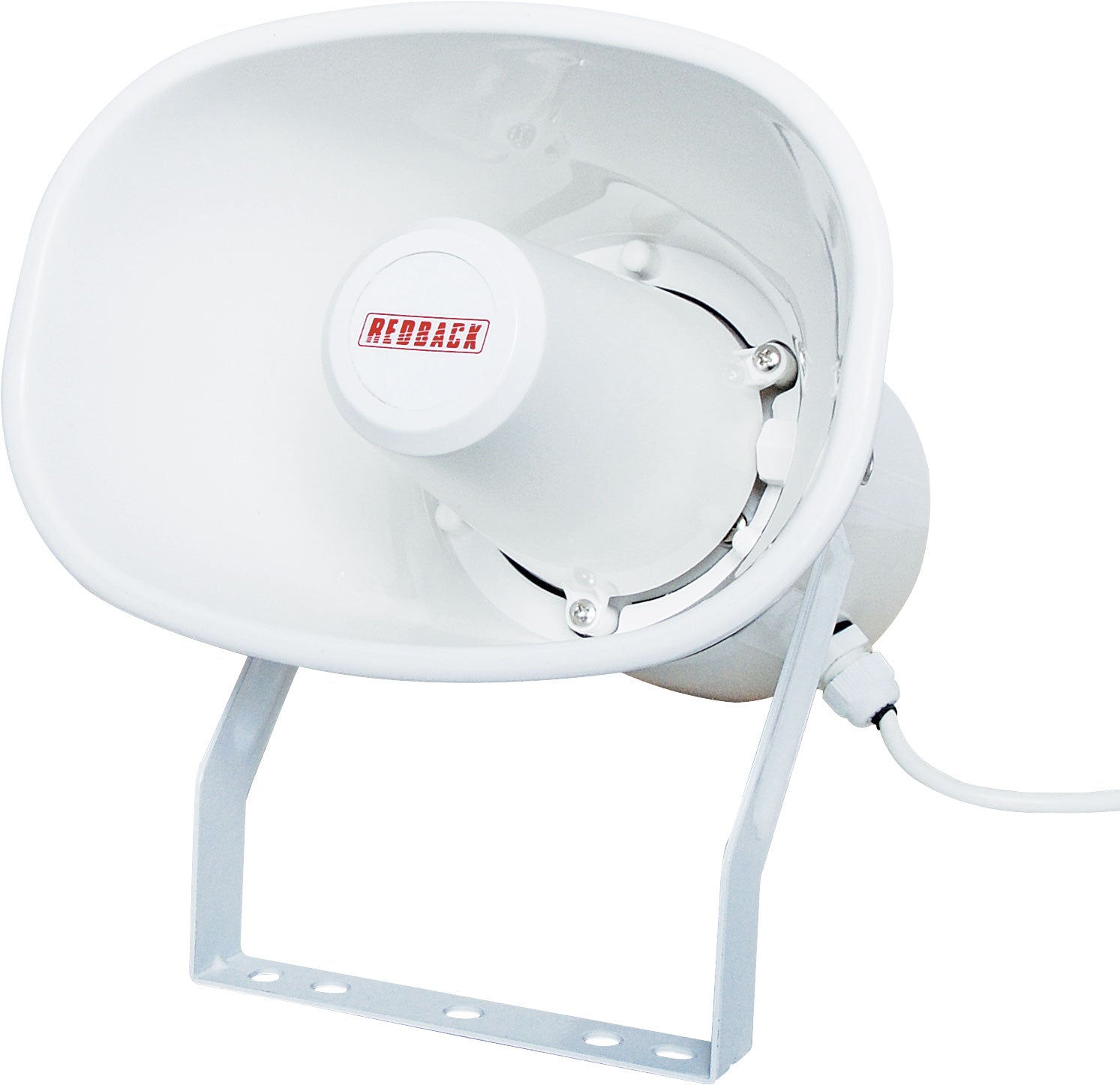

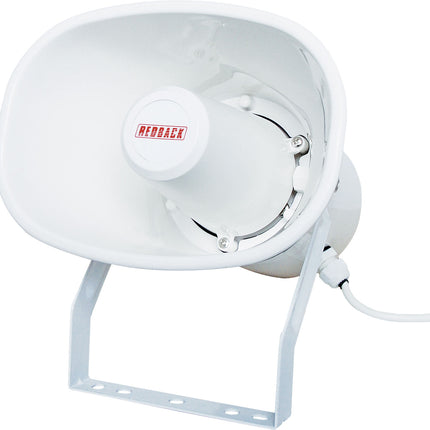

Redback 10W 100V EWIS IP66 PA Horn Speaker – White
Weatherproof 100V Line Paging Horn with Fast-Install Dog Leg Bracket
Clear, Reliable Paging for Commercial & Public Spaces
The Redback 10W 100V EWIS IP66 PA Horn Speaker is engineered for high intelligibility paging and background audio in demanding commercial environments. Designed for distributed PA systems, it delivers clear speech reproduction and excellent sound dispersion, making it ideal for schools, transport hubs, car parks, factories, and public facilities.

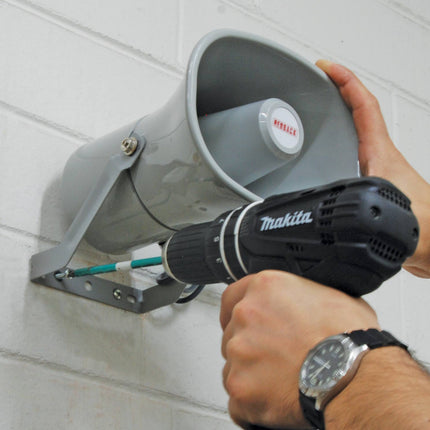

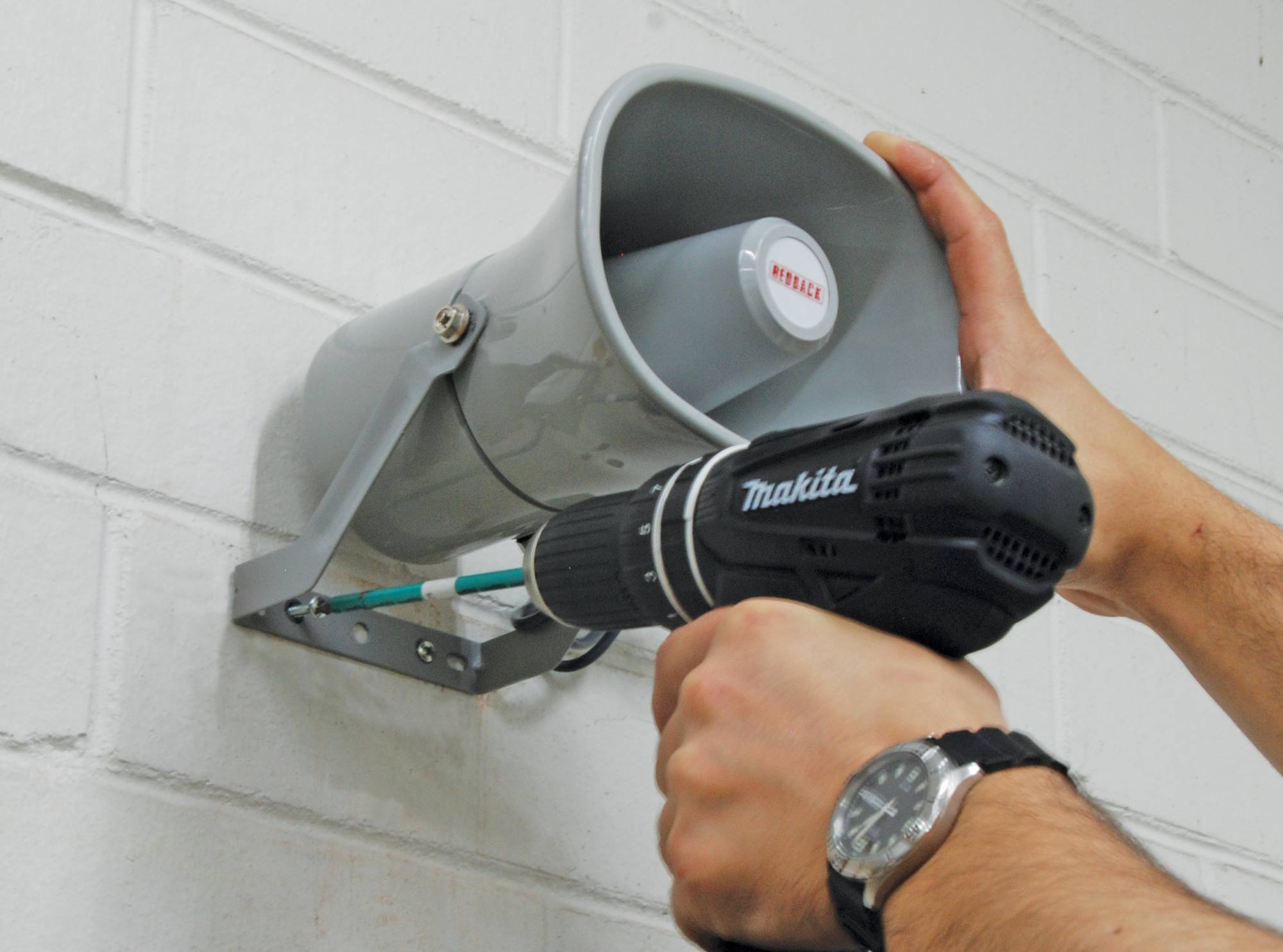

Its innovative dog leg mounting bracket simplifies installation, allowing installers to secure the bracket without removing the horn body, saving valuable installation time and effort.
Key Features
-
Exclusive Dog Leg Mounting Bracket
Eliminates the need to detach the horn from its bracket during installation, speeding up setup.
-
Weatherproof IP66 Rating
Built to withstand outdoor environments, including rain, dust, and harsh weather conditions.
-
UV-Stabilised ABS Construction
Durable white housing designed for long-term exposure to sunlight.
-
Excellent Speech Intelligibility
Ideal for paging and announcement systems.
-
Wide Sound Dispersion
Provides consistent coverage across large areas.
-
Selectable Power Taps
Rear switch allows easy adjustment between 1.25W, 2.5W, 5W, 7.5W, and 10W.
-
EWIS Compatible
Includes 22µF bipolar capacitor for emergency warning system line monitoring.
-
Loop-Through Wiring
Supplied with 4-core fly lead for simple installation.
-
Corrosion-Resistant Hardware
Nickel-plated chrome mounting hardware for durability.
- 5-Year Manufacturer Warranty
Ideal Applications
- Schools & educational facilities
- Train & bus stations
- Airports & transport terminals
- Car parks & outdoor areas
- Industrial plants & warehouses
- Public address and emergency warning systems
Technical Specifications
-
Power Taps: 1.25W / 2.5W / 5W / 7.5W / 10W
-
SPL (1W @ 1m): 104 dB @ 1kHz (±2 dB)
-
Max SPL: 114 dB @ 1kHz (±2 dB)
-
Frequency Response: 340Hz – 10kHz
-
Dispersion Angle:
- 160° vertical
- 130° horizontal
-
Connection: 4-core fly lead
-
EWIS Monitoring: 22µF bipolar capacitor fitted
-
Driver Construction: Aluminium voice coil former
-
Mounting Depth: 255mm
-
Weight: 1.2kg
-
Operating Temperature: -20°C to +55°C
-
Relative Humidity: <95%
-
Construction: UV-stabilised ABS housing
Why Choose the Redback PA Horn Speaker?
The Redback EWIS PA Horn Speaker combines durability, clarity, and installer-friendly design. With its weatherproof housing, high speech intelligibility, and quick-install bracket system, it’s an excellent choice for reliable paging and emergency communication systems in commercial and public environments.
