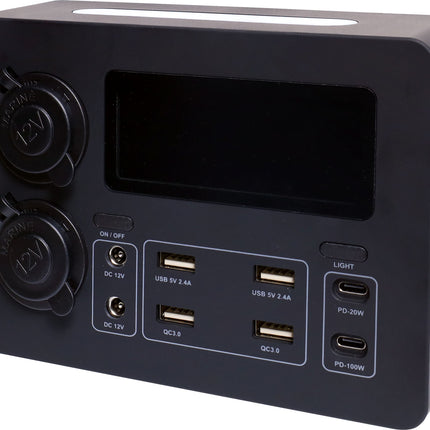

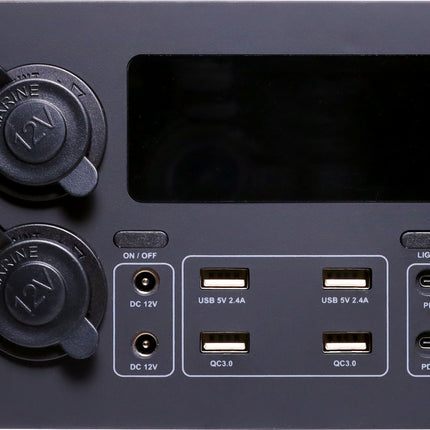

Powerhouse 12V DC Power Control Hub with Power Meter Display
High-Capacity 12/24V Power Distribution Hub for Caravans, 4WDs & Off-Grid Systems
Centralised Power Control for All Your 12/24V Needs
The Powerhouse 12V DC Power Control Hub is a complete, pre-wired power distribution solution for your auxiliary battery. Designed for caravans, 4WDs, camper trailers, boats, and motorhomes, it allows you to power up to 13 devices simultaneously through a wide range of connection types—including USB, DC jacks, car accessory sockets, and high-capacity Anderson-style plugs.

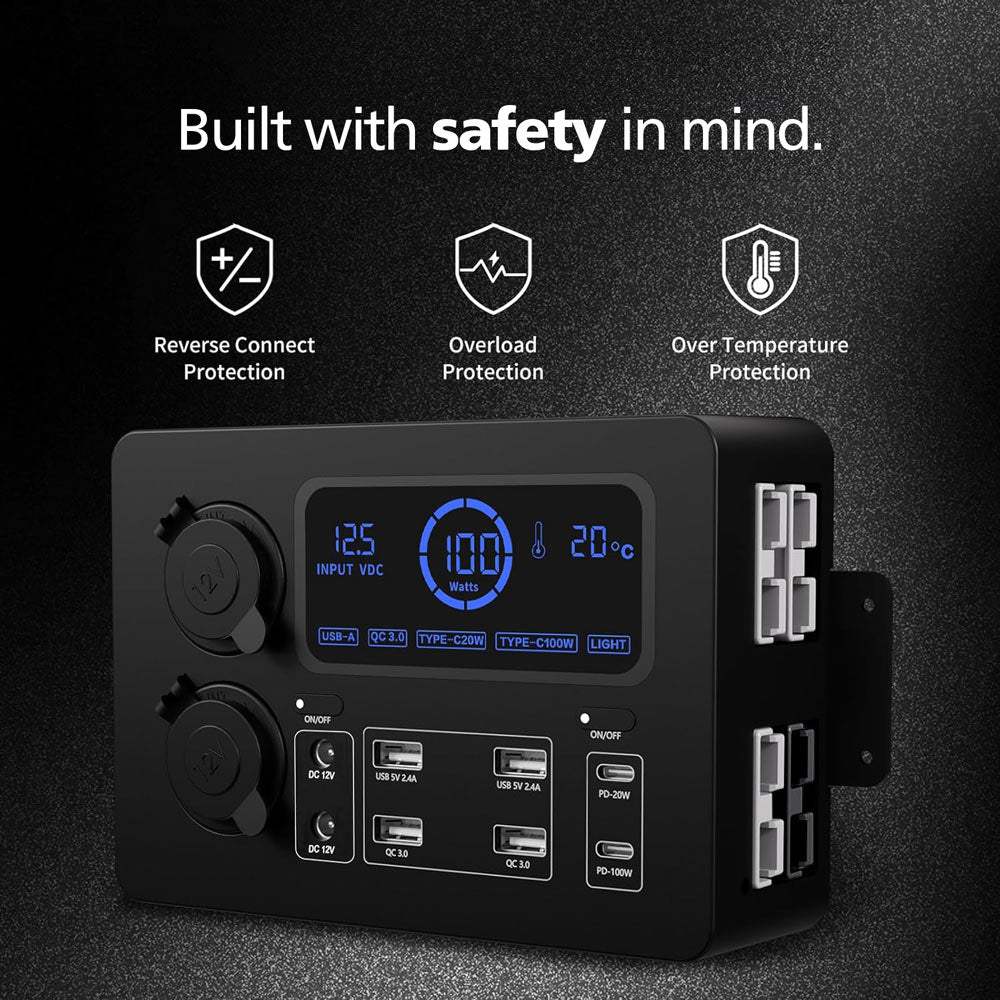

With a backlit meter display showing voltage, temperature, wattage, and connection status, this hub gives you full control and visibility over your portable power system. It is fully compatible with AGM, LiFePO₄, Wet, Gel, and Calcium deep-cycle batteries, making it a versatile and reliable part of any off-grid or touring setup.
Key Features
-
Complete 12/24V Power Distribution Hub – pre-wired and ready to install
- Supports up to 13 devices at once
-

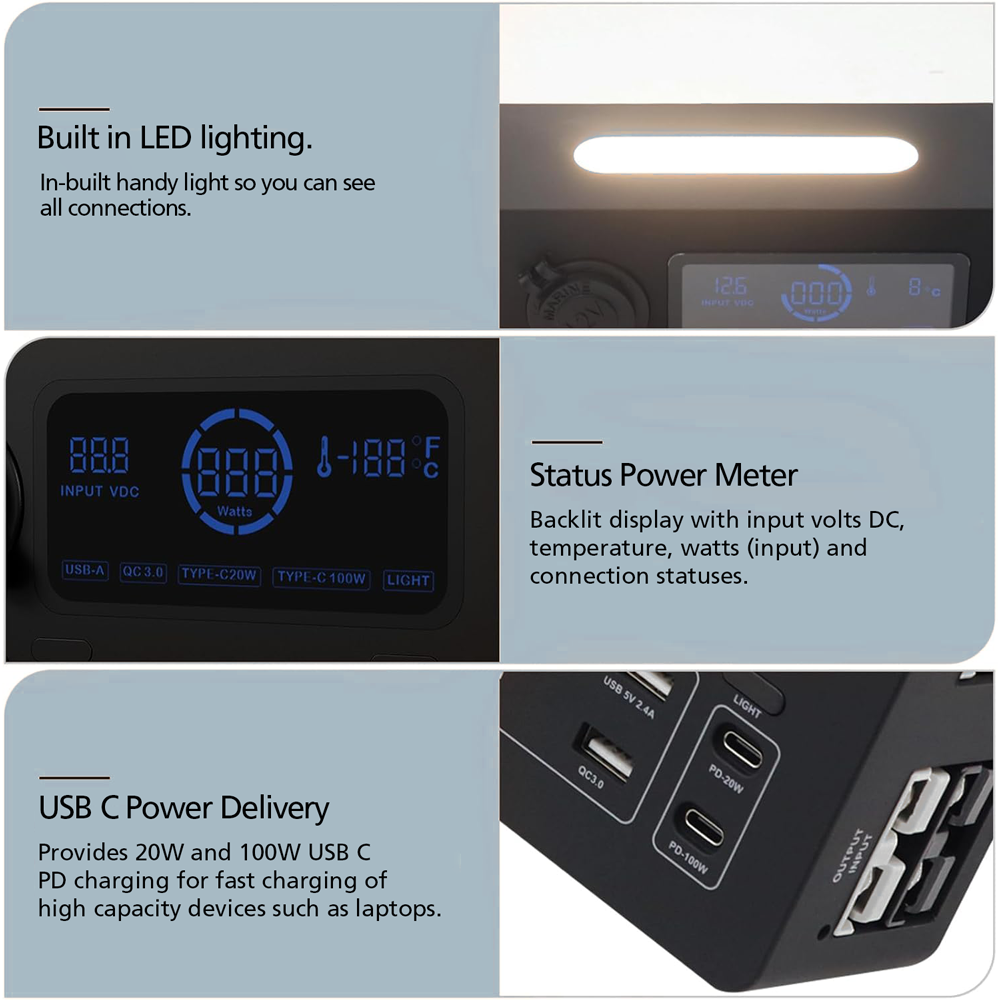

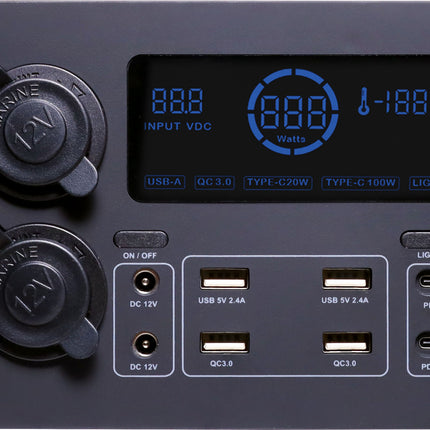

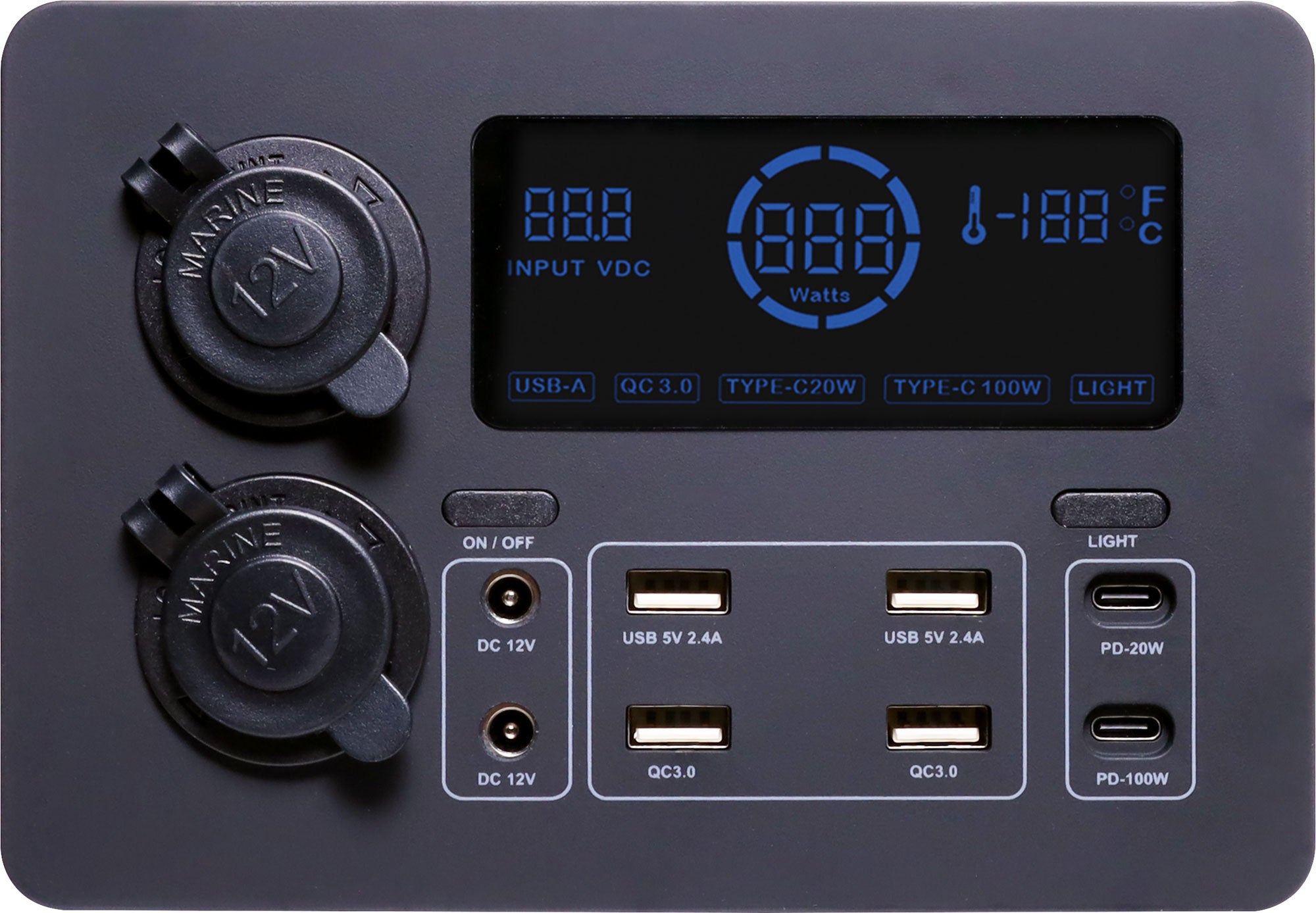

Backlit Power Meter Display showing:
- Input Voltage (VDC)
- Temperature
- Input Wattage
- Connection indicators
-

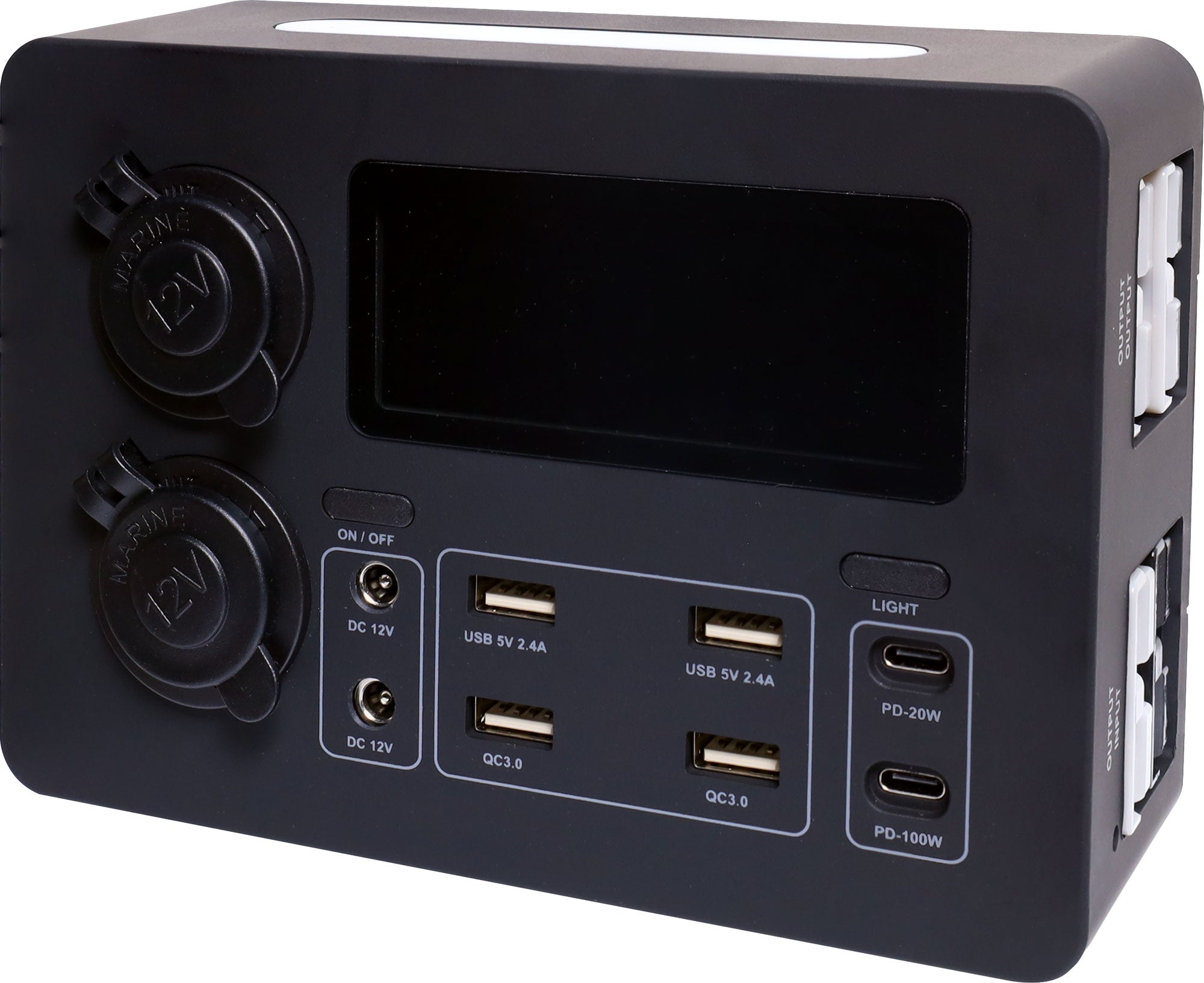

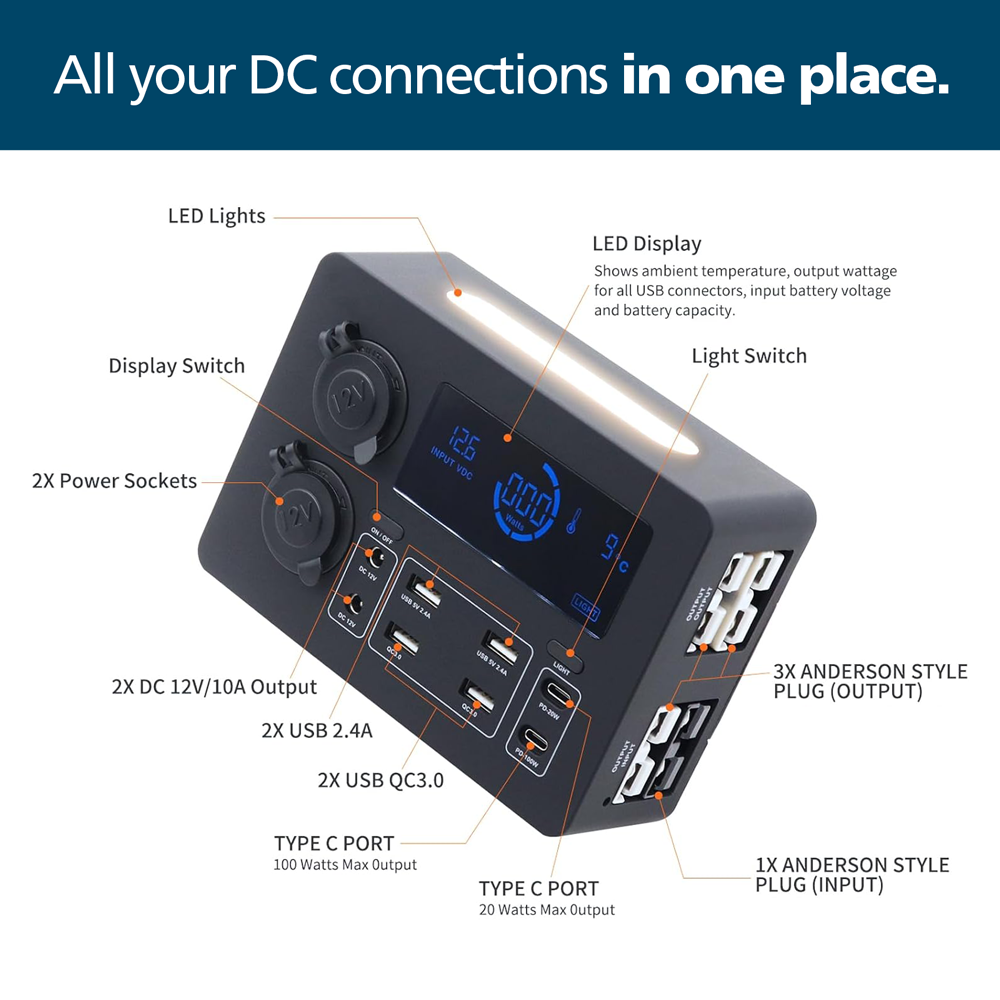

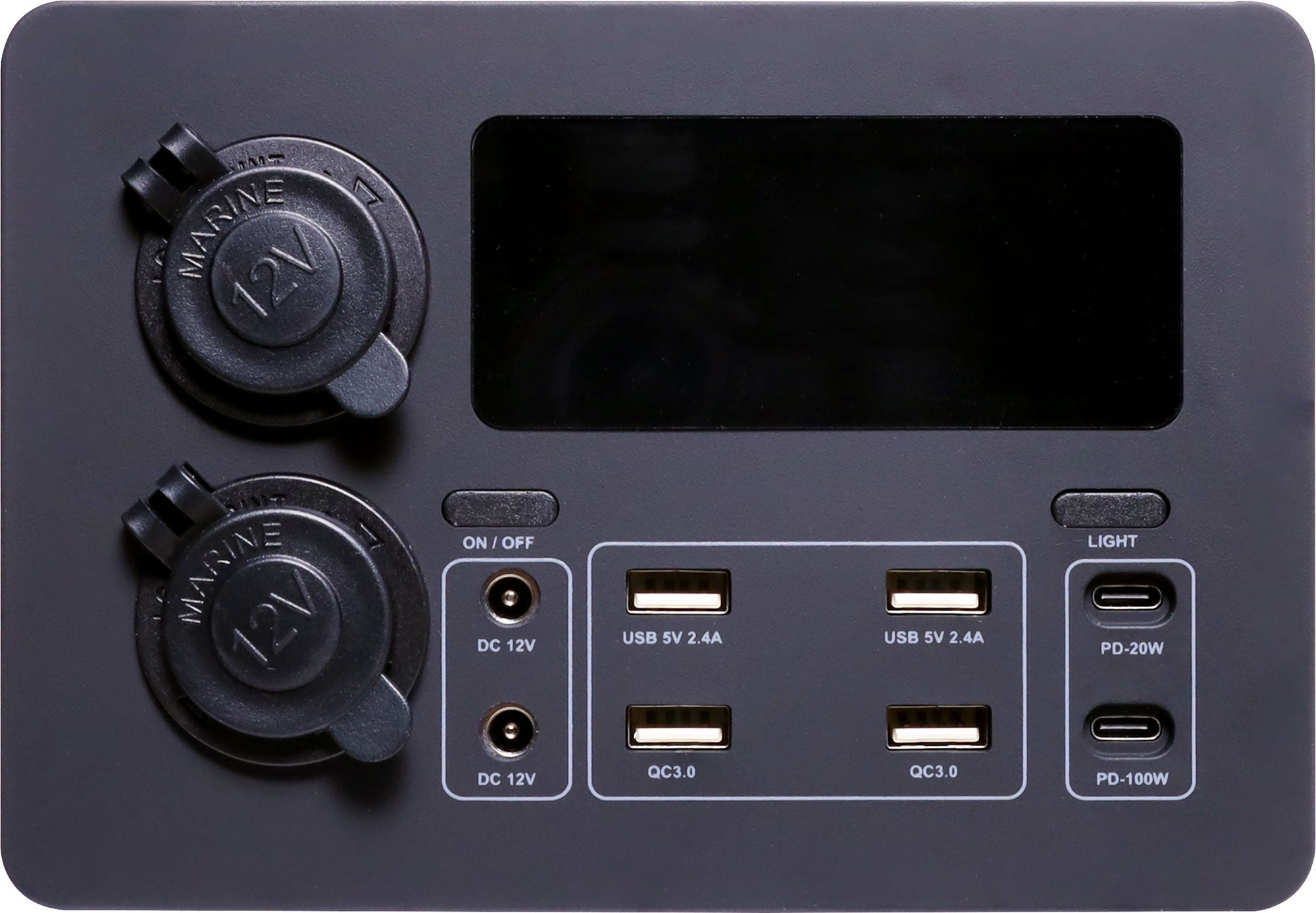

Multiple Output Options:
- 2 × USB-A (2.4A)
- 2 × USB-A QC3.0 fast-charge (up to 18W)
- 1 × USB-C Power Delivery (20W)

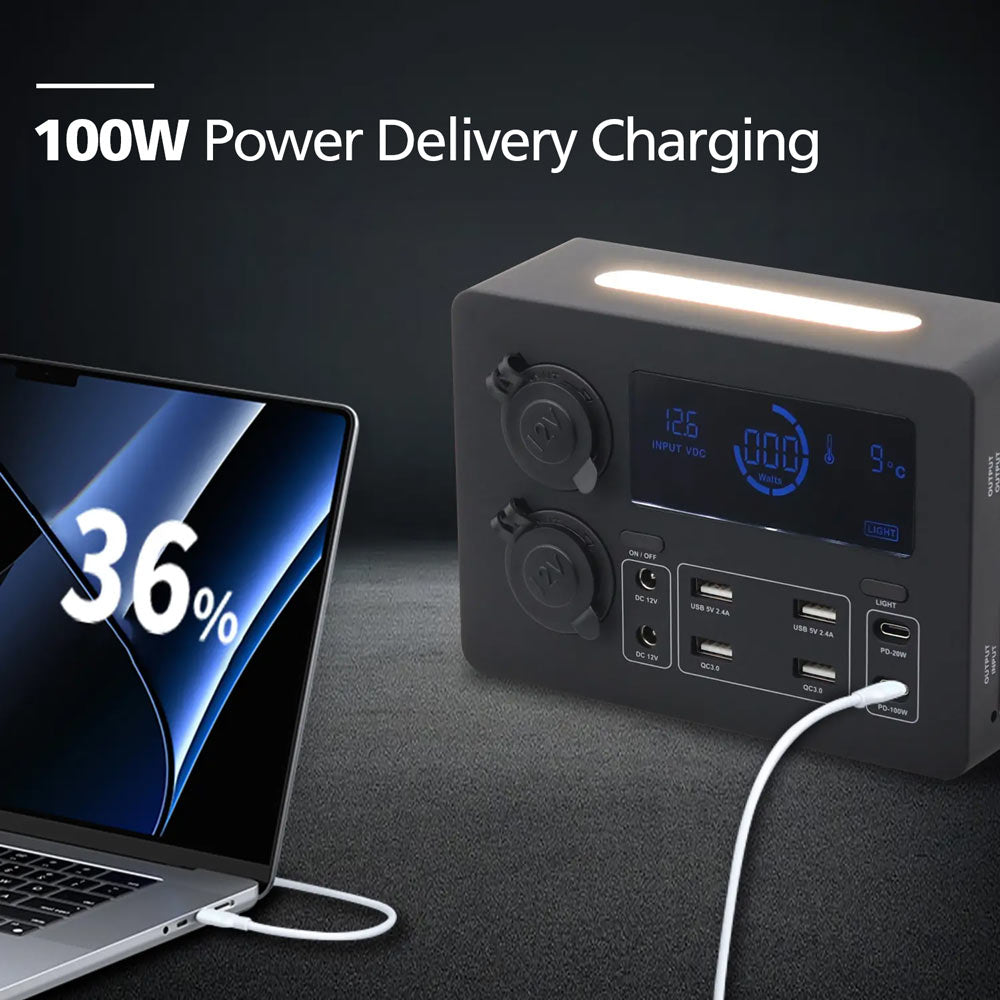

- 1 × USB-C Power Delivery (100W, PD 3.0)
- 2 × Car accessory sockets (12V/20A or 24V/10A)
- 2 × DC jack outputs (5.5 × 2.1mm, 12V/10A)
-

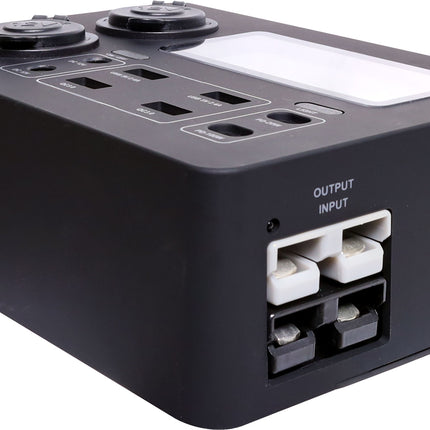

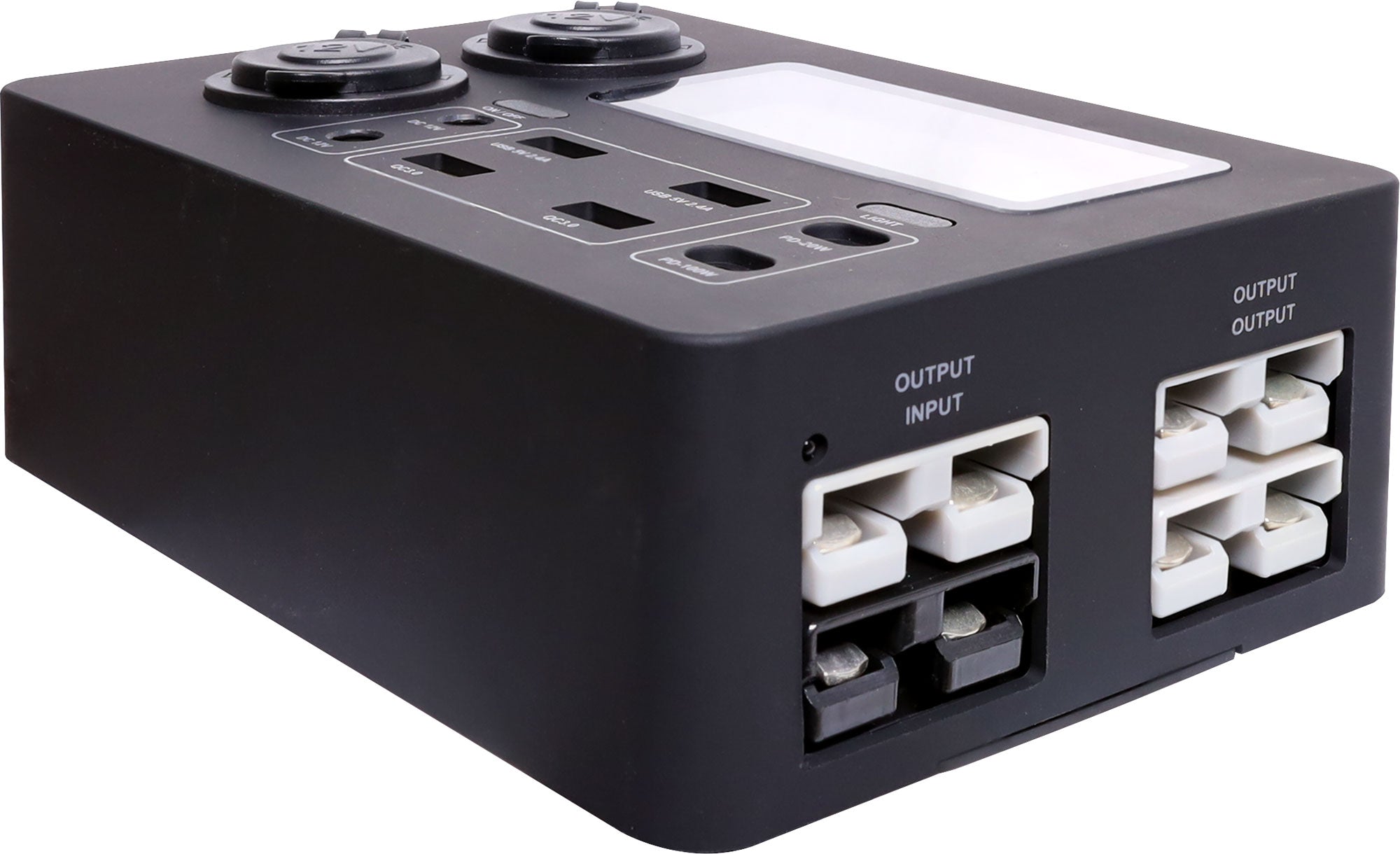

Four 50A Anderson Style Ports
- 1 × input
- 3 × output
- Auto-reset 50A circuit protection
- Top-Mounted LED Torch Light
-
Durable Housing: Made from UL94V-0 fire-rated ABS plastic
- Surface Mounting Brackets Included
Ideal For
- Caravans, camper trailers & motorhomes
- 4WD touring and dual-battery setups
- Marine & boating power systems
- Camping power distribution
- Off-grid cabins & portable workstations
Technical Overview
-
Materials: ABS plastic
-
Dimensions: 170 × 120 × 64 mm
-
Weight: 600g
-
Battery Types Supported: LiFePO₄, AGM, Calcium, Wet, Gel
-
USB-A Ports: 5V/2.4A
-
USB-A QC3.0 Ports: 5V/3A, 9V/2A, 12V/1.5A (18W)
-
USB-C PD (100W): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
-
USB-C PD (20W): 5V/3A, 9V/2.22A, 12V/1.67A
-
Car Accessory Sockets: 12V/20A or 24V/10A
-
DC Jack Outputs: 12V/10A (5.5 × 2.1mm)
-
Anderson Style Ports: 50A total (with auto-reset circuit breaker)
-
Operating Temperature: –5°C to +55°C
Why Choose the Powerhouse DC Power Hub?
If you want maximum convenience, flexibility, and safety when managing your 12/24V power system, this hub is the ultimate solution. With high-speed USB charging, multiple accessory outputs, and Anderson connectivity, it gives you professional-grade power distribution in a compact, rugged design—perfect for off-grid living and serious touring.
