Lightweight 12.8V 6Ah LiFePO4 replacement battery with integrated BMS, IP65 housing, 20A continuous discharge, and 5-year warranty

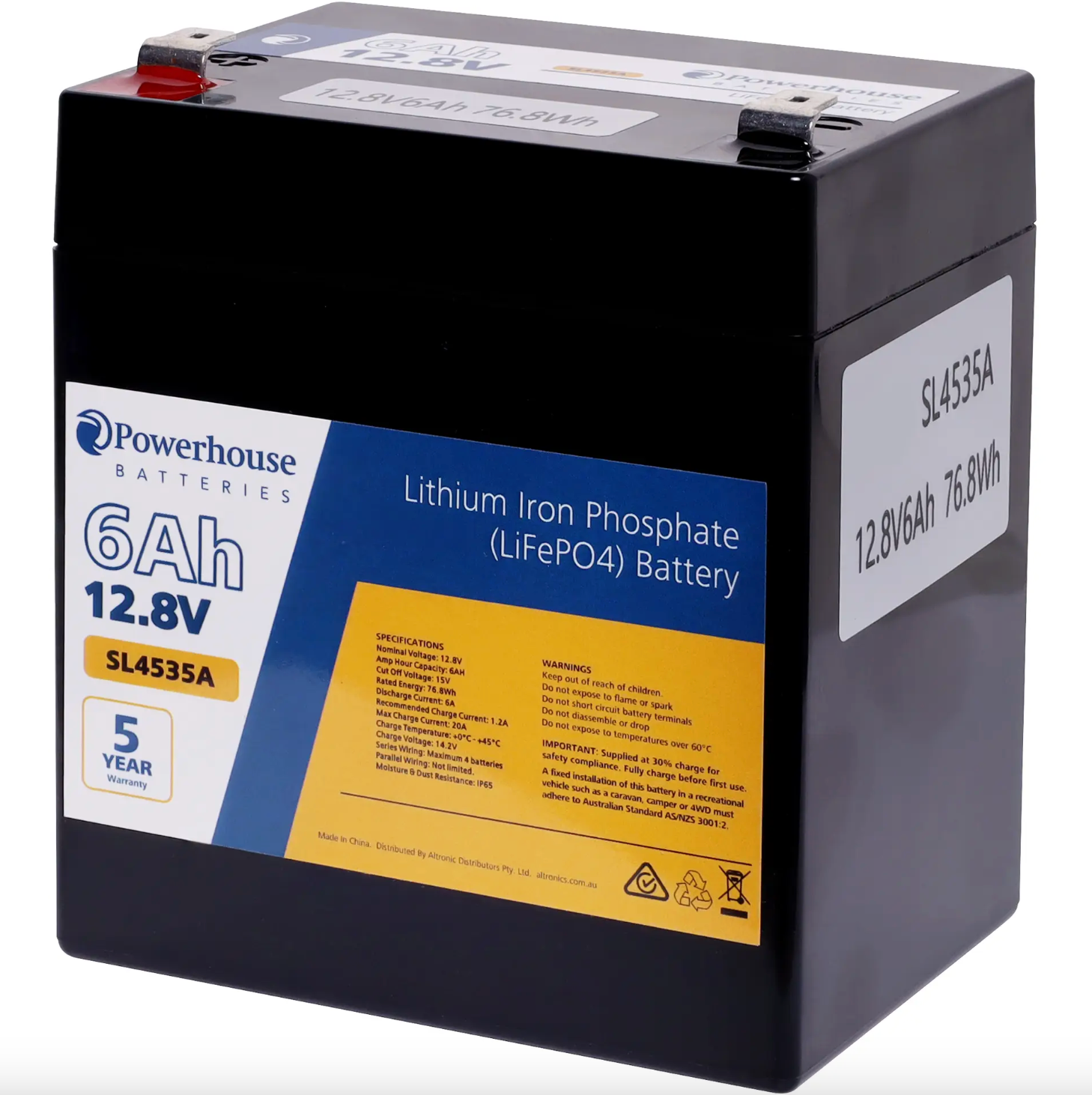

The Powerhouse 12V 6Ah LiFePO4 Lithium Battery is a modern replacement for similarly sized sealed lead-acid (SLA) batteries, offering significantly reduced weight, longer service life, and greater usable capacity per charge cycle.
Weighing just 0.7kg, this LiFePO4 battery is less than half the weight of many comparable SLA batteries. Its lithium iron phosphate chemistry maintains a higher operating voltage throughout the discharge cycle, providing longer usable runtime while also offering excellent charge retention during storage.
An integrated Battery Management System (BMS) provides protection against short circuits, excessive temperature, over-voltage, and under-voltage conditions. The battery can also be configured in series or parallel for applications requiring increased voltage or capacity.
Key Features
-
12.8V 6Ah LiFePO4 Technology
Modern lithium iron phosphate chemistry for dependable power and extended service life
-
Integrated Battery Management System (BMS)
Provides internal protection during charging and discharging
-
Lightweight 0.7kg Design
Less than half the weight of many equivalent lead-acid batteries
-
20A Maximum Continuous Discharge
Suitable for applications requiring substantial current from a compact battery
-
Excellent Storage Performance
Retains approximately 80–90% charge during storage
-
Longer Usable Runtime
Maintains a higher voltage deeper into the discharge cycle compared with traditional SLA batteries
-
Series & Parallel Compatible
Up to four batteries can be connected in series, with parallel configurations also supported
-
IP65-Rated ABS Housing
Durable enclosure for demanding applications
-
Maintenance-Free Operation
No routine electrolyte maintenance required
-
5-Year Warranty
Long-term warranty coverage for added peace of mind
Applications
Ideal for:
- SLA battery replacement
- Portable electronics
- Backup power systems
- Alarm and security equipment
- Communications equipment
- Camping and portable power
- Electronics projects
- Low-voltage power systems
Specifications
General
-
Brand: Powerhouse
-
Battery Chemistry: LiFePO4 Lithium Iron Phosphate
-
Nominal Voltage: 12.8V
-
Capacity: 6Ah
-
Terminal Type: F1 / 4.8mm
-
Dimensions: 90mm (L) × 70mm (W) × 107mm (H)
-
Weight: 0.7kg
-
Case Material: ABS
-
Case Rating: IP65
-
Certification: CB / CE
-
Shipping Classification: UN3480, Class 9
Charging
- Maximum Charging Voltage: 14.2V
- Recommended Charging Voltage: 13.8V
- Maximum Charging Current: 6A
- Recommended Charging Current: 1.2A
Discharging
- Discharge Voltage: 11.2V
- Maximum Continuous Discharge: 20A
Battery Configuration
- Maximum Series Configuration: 4 batteries / 51.2V
- Parallel Configuration: No specified limit
Battery Management System Protection
The integrated BMS provides protection against:
- Short circuits
- Over-temperature conditions
- Over-voltage
- Under-voltage
- Unsafe charging and discharging conditions
Important Usage Information
The battery is factory supplied at approximately 30% charge for transportation and safety compliance and must be fully charged before first use.
When connecting multiple batteries, it is recommended that each battery be individually charged to 100% using the same charger before connection to ensure balanced terminal voltages.
Important: Temperatures above 65°C can affect the ABS enclosure. Ensure adequate ventilation in warm environments. This battery is not suitable for installation inside engine bays.
Why Choose the Powerhouse 12V 6Ah LiFePO4 Battery?
Compared with traditional SLA batteries, the Powerhouse LiFePO4 offers lower weight, longer service life, improved storage performance, greater usable capacity, and integrated BMS protection, making it an excellent upgrade for compatible 12V applications.
Warranty
5-Year Warranty
This Powerhouse LiFePO4 battery is backed by a 5-year warranty for long-term reliability and peace of mind.
