Description

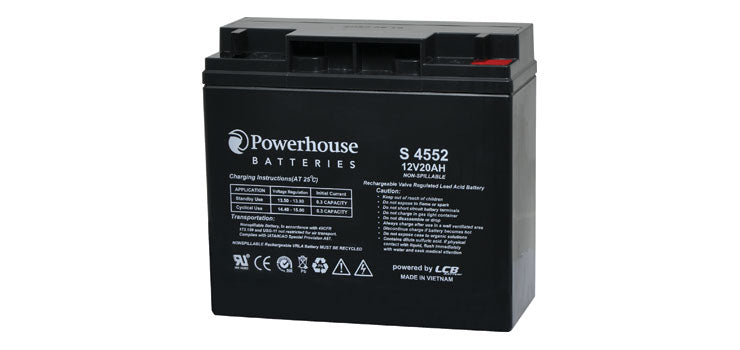

The 12V 20Ah SLA battery is a versatile option for powering 12V equipment, making it ideal for battery backup, alarm and communications systems, and UPS units. With M5 bolt and nut terminals, these batteries are easily user-replaceable in most equipment. They are also fully sealed to prevent any electrolyte leakage, and meet UN Number UN 2800 Non-Spillable - Hazard Class 8 standards.
Specifications
- General
- Dimensions: 181L x 77W x 167H mm (including tabs)
- Weight: 5.9kg
- Shipping Weight: 6.20000Kg
- Capacity
- 20 Hour Rate (10.5V): 20Ah
- 10 Hour Rate (10.5V): 18.7Ah
- 1 Hour Rate (9.6V): 13Ah
- Capacity Affected by Temperature
- 40°C: 102%
- 25°C: 100%
- 0°C: 85%
- Charging
- Internal Resistance: Approximately 14MΩ
- Float Charging Voltage: 13.6 - 13.8V @ 25°C (temperature compensation: -18mV/°C)
- Cyclic Charging Voltage: 14.50 - 15V @ 25°C (temperature compensation: -30mV/°C)
- Maximum Charging Current: 6A
- Maximum Discharging Current: 300A (5 sec.)
- Designed Floating Life: 5 years.
ActivFire Listed (afp3824). Conforms to IEC 60896-21:2004 and IEC 60896-22:2004.
