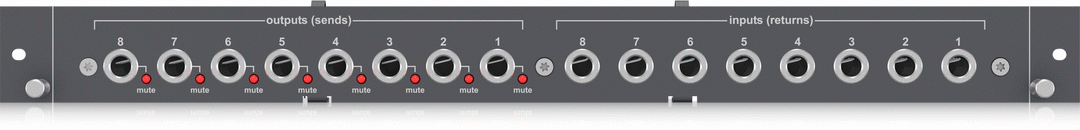

MIDAS DL443 8IN/8OUT CARD WITH TRS CONNECTORS

Description

Analogue 8 Input, 8 Output Card with 1/4" TRS Connectors

DL443 is a modular 8 analogue line level input and output card for MIDAS PRO Series control centres and modular I/O boxes Premium low latency 24 bit 96 kHz ADC and DAC converters are used to minimise distortion and noise artefacts, and DL443 features balanced inputs and outputs on _ " TRS connectors high common mode input noise rejection and high output current drive capability for long cable runs. It also features an automatic output mute facility if the audio signal path is muted via the PRO Series control centre.

  • 8 electronically balanced line inputs and outputs on 1/4" TRS connectors
  • Low latency 24 bit 96 kHz ADC and DAC converters
  • High common mode rejection line inputs
  • High output current drive for long cable runs
  • Output mute LEDs per channel
  • Compatible with Midas PRO3, PRO6, PRO9, PRO X, DL351 and DL451
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

Read more

Product form

$499.00

    ⏰ Order now, ships today!
    • Free shipping Australia-wide on orders over $99.
    • Secure checkout. Your payment is encrypted and protected.

    Analogue 8 Input, 8 Output Card with 1/4" TRS ConnectorsDL443 is a modular 8 analogue line level input and output... Read more

    • Secure & safe checkout

      paypal
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa
    🇦🇺 Aussie Owned 📦 44,000+ Products Sold

    Description

    Analogue 8 Input, 8 Output Card with 1/4" TRS Connectors

    DL443 is a modular 8 analogue line level input and output card for MIDAS PRO Series control centres and modular I/O boxes Premium low latency 24 bit 96 kHz ADC and DAC converters are used to minimise distortion and noise artefacts, and DL443 features balanced inputs and outputs on _ " TRS connectors high common mode input noise rejection and high output current drive capability for long cable runs. It also features an automatic output mute facility if the audio signal path is muted via the PRO Series control centre.

    • 8 electronically balanced line inputs and outputs on 1/4" TRS connectors
    • Low latency 24 bit 96 kHz ADC and DAC converters
    • High common mode rejection line inputs
    • High output current drive for long cable runs
    • Output mute LEDs per channel
    • Compatible with Midas PRO3, PRO6, PRO9, PRO X, DL351 and DL451
    • 10-Year Warranty Program*
    • Designed and engineered in the U.K.
