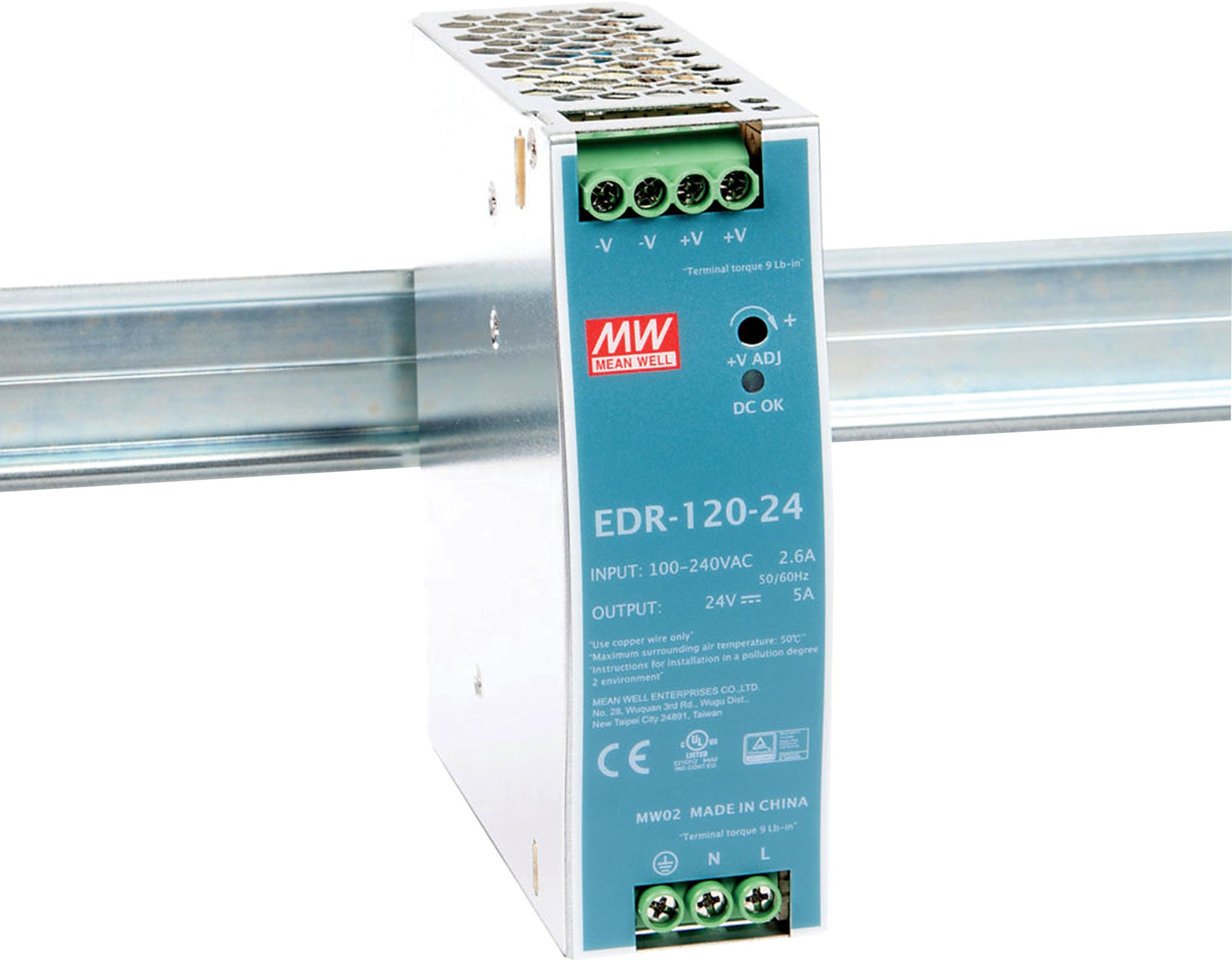

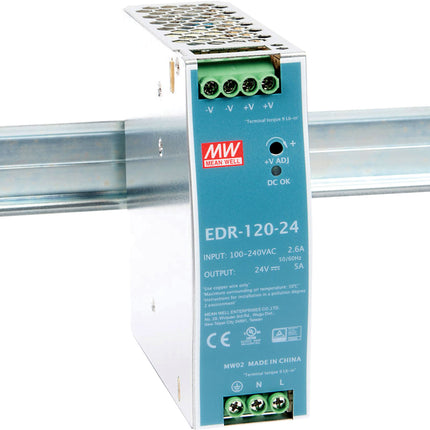

Mean Well EDR-120-24 120W 24VDC 5A DIN Rail Power Supply M8410a

Description

The Mean Well EDR-120-24 offers a 24VDC 5A output and a rated power output of 120W. Its compact enclosure features recessed terminals for easy wiring. Additionally, each Mean Well power supply includes protection against short circuit, over load, and over voltage to prevent damage to the supply and connected equipment. This power supply is suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switching power supplies have numerous benefits over conventional linear transformer power supplies. They are significantly more efficient and lighter due to the lack of power or mains transformers. Additionally, their smaller size makes them a more compact option.

Features

  • 120W rated power
  • 24V DC 5A output
  • Vented metal enclosure
  • Universal AC input / Full range.
  • Protections: Short circuit, overload, over voltage, and over temperature.
  • Cooling by free air convection.
  • Can be installed on TS-35/7.5 or TS-35/15 DIN rail.
  • High quality and economical.
  • Narrow profile to optimise space on the DIN rail.
  • LED ‘power on’ indicator.
  • DC output adjuster to increase the rated output voltage to +15%.
  • Wide ambient temperature range from –20°C to +60°C.
  • 100% full load burn-in test.
  • UL 508 (industrial control equipment) approved.
  • EN 61000-6-2 (EN 50082-2) industrial immunity level.

Specifications

Output
  • DC Voltage: 24V
  • Rated Current: 5A
  • Current Range: 0 ~ 5A
  • Rated Power: 120W
  • Ripple & Noise: 120mVp-p
  • Voltage Range: 24 ~ 28V
  • Voltage Tolerance: ±1.0%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1.0%
  • Setup, Rise Time: 1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load
  • Hold up time: 16ms/230VAC 10ms/115VAC at full load
Input
  • Voltage Range: [DC input operation possible by connecting AC/L (+), AC/N (-)]
  • Frequency Range: 47 ~ 63Hz
  • Efficiency: 87.5%
  • AC Current: 2.25A/115VAC 1.3A/230VAC
  • Inrush Current: 20A/115VAC 35A/230VAC
  • Leakage Current: <1mA / 240VAC
Protection
  • Overload: 105 ~ 130% rated output power
  • Over Voltage: 29 ~ 33V, Protection type : Shut down o/p voltage, re-power on to recover
  • Over Temperature: Shut down o/p voltage, re-power on to recover
Environment
  • Working temperature: -20 ~ +60°C(Refer to "Derating Curve")
  • Working Humidity: 20 ~ 95% RH non-condensing
  • Storage Temperature, Humidity: -40 ~ +85°C, 10 ~ 95% RH
  • Temperature Coefficient: ±0.03%/°C(0 ~ 50°C)
  • Vibration: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
  • Mounting: Compliance to IEC60068-2-6
Safety & EMC
  • Safety standards: Ul508, TUV EN60950-1 approved;(meet EN60204-1)
  • Withstand voltage: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
  • Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
  • EMC Emission: Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,-3
  • EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
Other
  • MTBF: 474.6K hrs min. MIL-HDBK-217F (25°C)
  • Dimension: 40 x 125.2 x 113.5mm
