Description

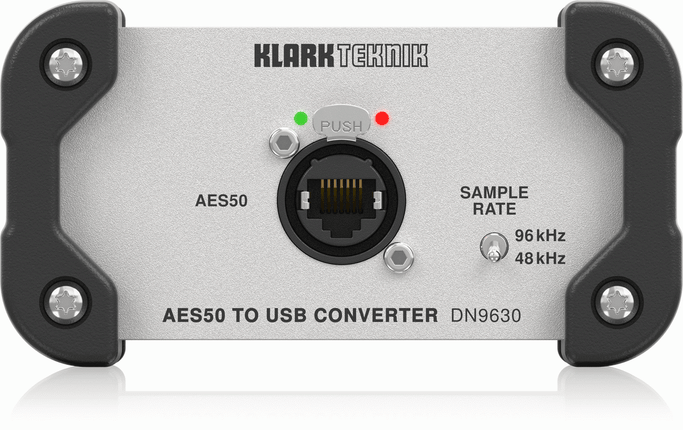

Klark Teknik DN9630 | AES50 to USB 2.0 Converter (48 x 48 Channels @ 48 kHz)
Seamless AES50 Integration for High-Channel Audio Workflows
The Klark Teknik DN9630 is the ultimate bridge between AES50 digital audio networks and your DAW. Offering up to 48 bidirectional channels at 48 kHz (or 24 channels at 96 kHz), it’s the perfect companion for Midas digital consoles and any AES50-equipped hardware. Whether you're recording multitrack audio, running virtual soundchecks, or simply syncing your stage box to a digital audio workstation, the DN9630 makes setup effortless.
Key Features:
-
AES50 to USB 2.0 Conversion – Enables simultaneous multichannel recording/playback
-
High Channel Capacity:
- 48 In/Out @ 48 kHz
- 24 In/Out @ 96 kHz
-
Switchable Sample Rate – 48 kHz or 96 kHz support
-
USB-Powered – No external PSU required
-
LED Indicators – Display AES50 network status and speed
-
Operates from AES50 Clock – Ensures tight sync with your audio system
-
Mac & PC Compatible:
-
Mac OS X: Native Core Audio, no drivers needed
-
Windows: ASIO drivers available
-
Rugged Design – Aluminium extrusion casing, compact and durable
-
10-Year Warranty Program – Built for reliability on tour or in the studio
Ideal Use Cases:
-
Live Sound Engineers using Midas Pro Series or M32/X32
- Studio Recording with AES50 stage boxes
-
Broadcast Environments needing robust multichannel interfaces
-
Theatre or Installations with digital routing requirements
- Virtual Soundchecks or DAW Integration
Pair With:
