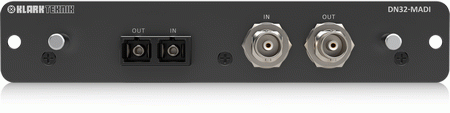

KLARK TEKNIK DN32MADI MADI EXPANSION MODULE

Description

MADI Expansion Module with up to 32 Bidirectional Channels

MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.

  • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
  • Up to 32 bidirectional channels @ 48 kHz sample rate
  • Operates up to 500 m over optical fibre link and 100 m over coaxial copper link
  • Optical transmission on SC-Duplex* connector
  • Copper transmission on 75 ohm coaxial BNC connectors
  • Dual-redundant operation with failover from optical to copper connections
  • Operates as either MADI clock master or MADI clock slave
  • Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

Read more

Product form

$629.00

    📦 Order now, ships next business day
    • Free shipping Australia-wide on orders over $99.
    • Secure checkout. Your payment is encrypted and protected.

    MADI Expansion Module with up to 32 Bidirectional ChannelsMADI devices are widely used in a broad range of pro audio... Read more

    • Secure & safe checkout

      paypal
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa
    🇦🇺 Aussie Owned 📦 44,000+ Products Sold

    Description

    MADI Expansion Module with up to 32 Bidirectional Channels

    MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.

    • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
    • Up to 32 bidirectional channels @ 48 kHz sample rate
    • Operates up to 500 m over optical fibre link and 100 m over coaxial copper link
    • Optical transmission on SC-Duplex* connector
    • Copper transmission on 75 ohm coaxial BNC connectors
    • Dual-redundant operation with failover from optical to copper connections
    • Operates as either MADI clock master or MADI clock slave
    • Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
    • 10-Year Warranty Program*
    • Designed and engineered in the U.K.

    Read more
