Description

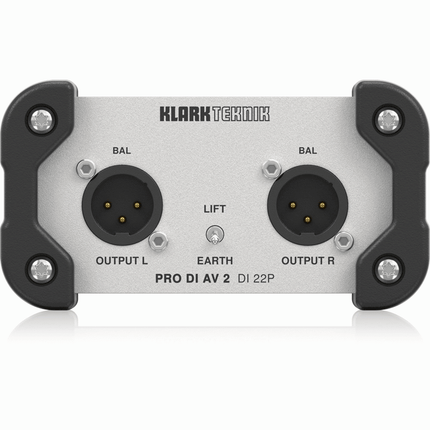

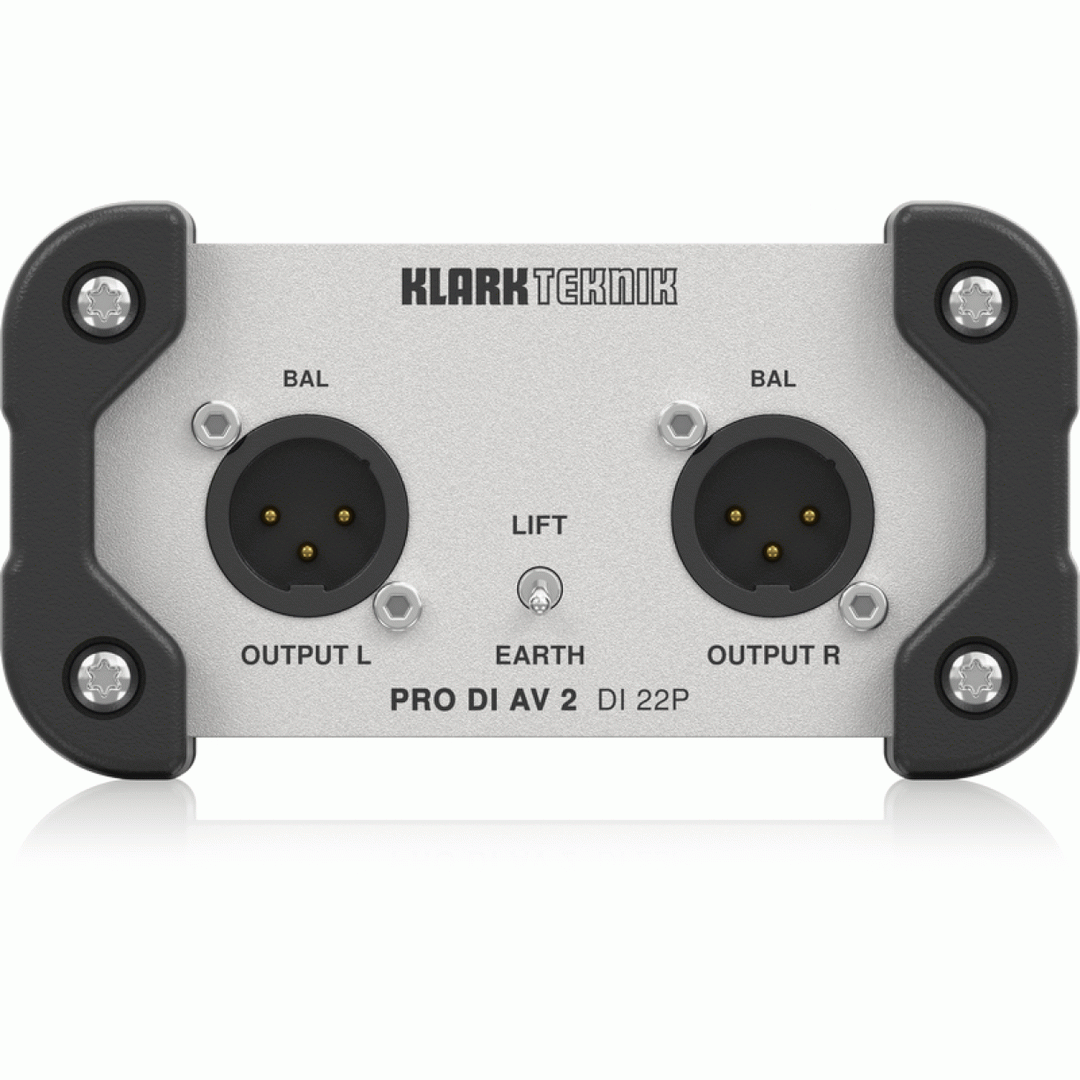

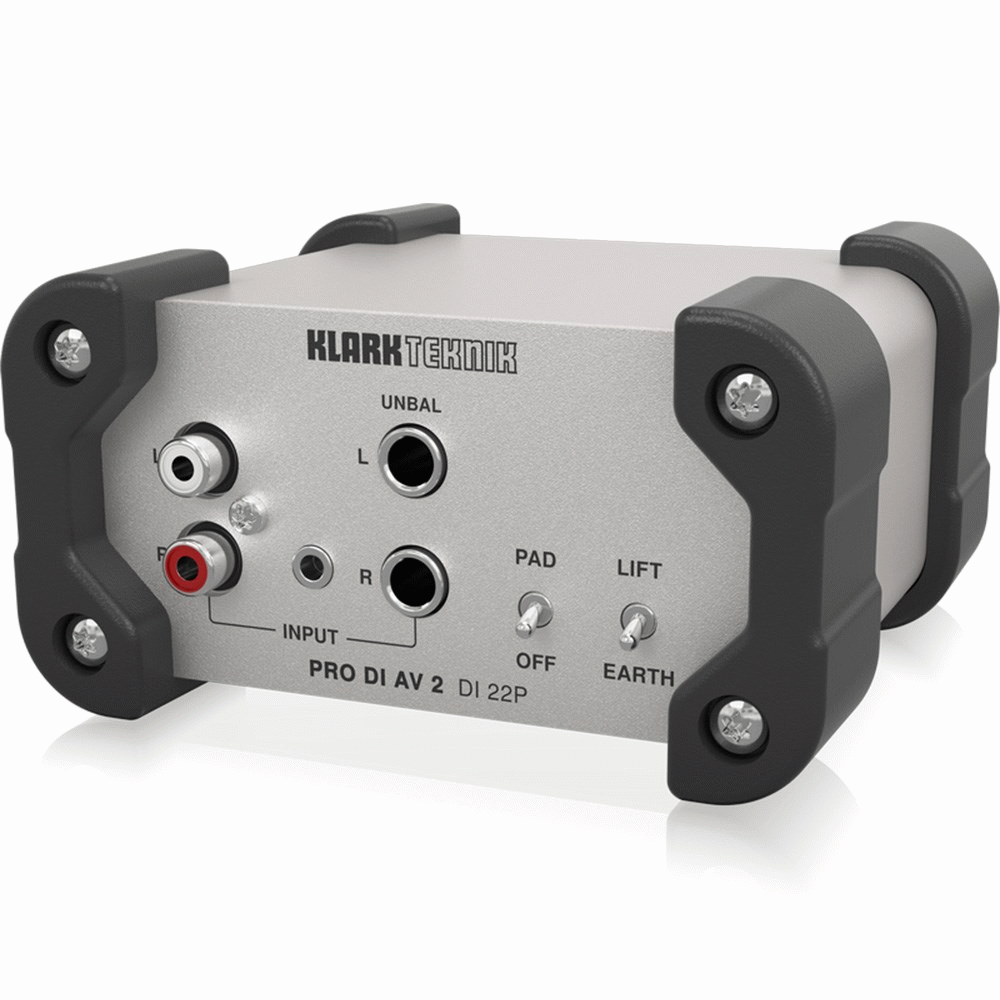

The DI 22P PRO DI AV 2 from KLARK TEKNIK delivers exceptional direct injection with superior headroom, dynamic response, and sonic clarity. It combines the best features of the DI 20P and DI 10P direct boxes, making it a valuable tool for audio engineers.
The DI 22P is a highly adaptable tool that can handle dual instrument, line, and speaker levels. It can also connect to MP3 and CD players, keyboards, drum submixers, and various other stereo sources. With its faithful reproduction of both electric and acoustic instruments, it can capture more details of musical performances. This passive device operates without the need for external power, thanks to its custom-built MIDAS transformers and switchable input pads. For professional-grade audio and multimedia applications, the DI 22P is an excellent choice.
A custom instrumentation-grade input circuit was designed for the DI 22P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra-low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (±1 dB).

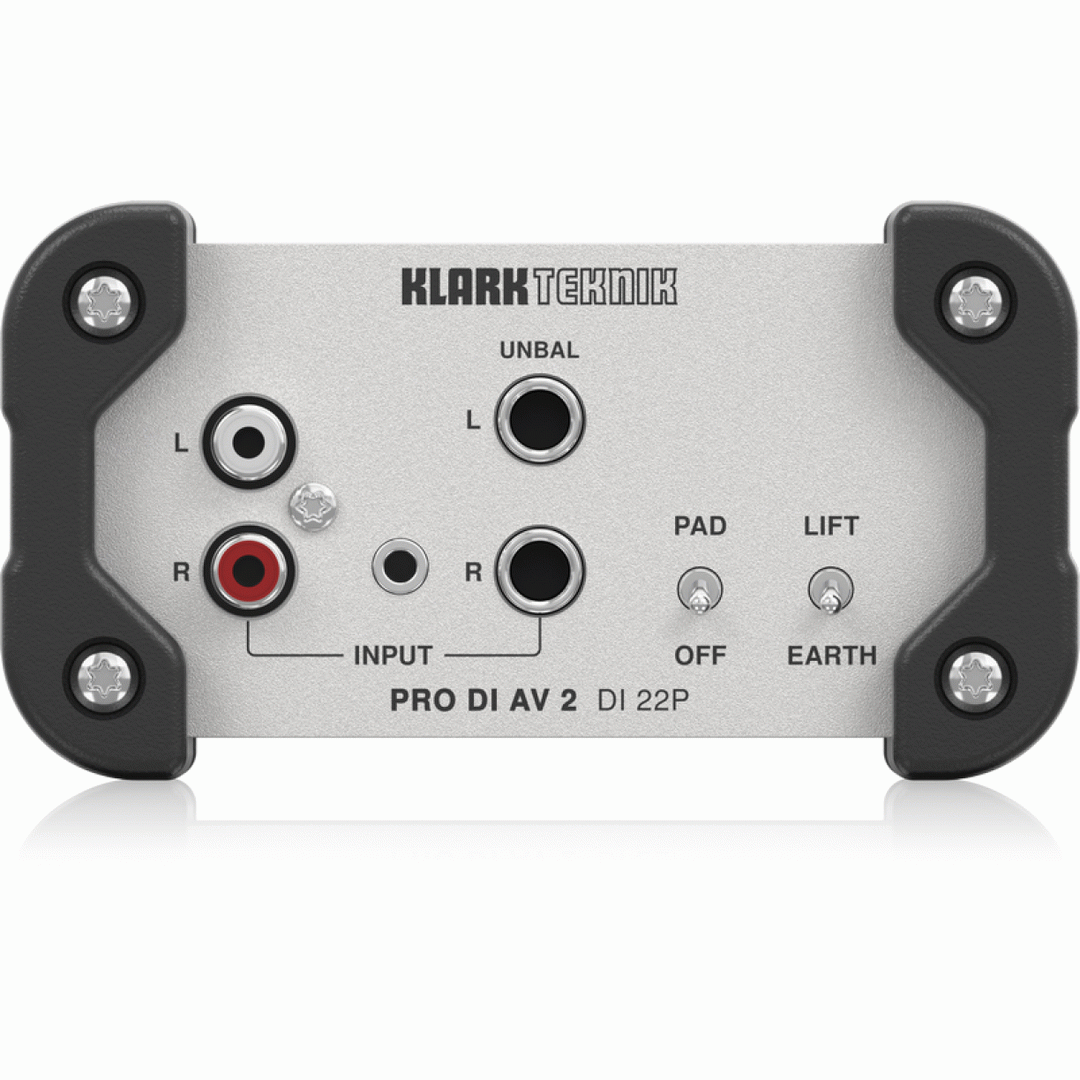

The DI 22P PRO DI AV 2 Inputs have a variety of connectors including 2 x 1/4" TS, 2 x RCA, and 1 x 1/8" TRS. These connectors are designed to accommodate any type of signal, making them highly versatile. Additionally, the genuine Neutrik* Output XLR jacks provide balanced versions of the input signals, ensuring high-quality output to your mixing board or other processing devices.
- Passive Stereo DI Box for general-purpose and multimedia applications
- Custom-built MIDAS transformers for highest signal integrity
- High headroom design offers superior sound quality
- Passive design does not require any power supply
- Stereo input on 1/4Ó, 1/8Ó TRS and RCA connectors
- Switchable input attenuation for guitar, line and speaker levels
- High-quality Neutrik* XLR connectors
- Earth Lift switches for input and output eliminate ground loop problems
- Fully transformer-isolated design ensures electrical separation
- Ultra-low noise and ultra-linear system for highest signal integrity
- Aluminium extrusion casing with protective rubber corners
- Compact and rugged design
