High-gain weatherproof masthead amplifier with 4G/LTE filtering, separate VHF/UHF inputs, and F-Type connectors for superior TV signal reception

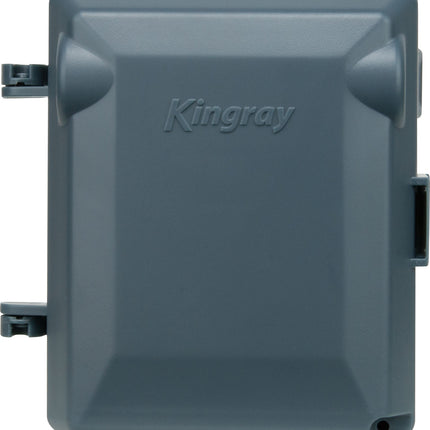

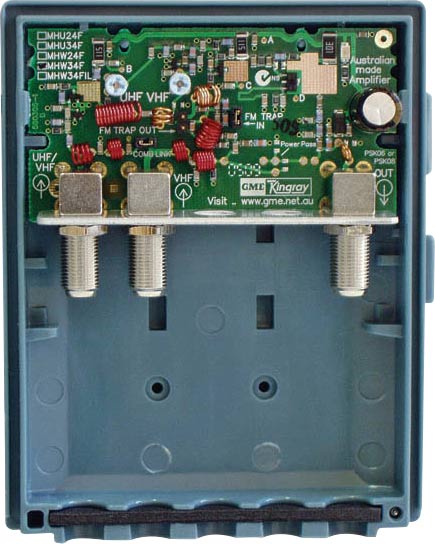

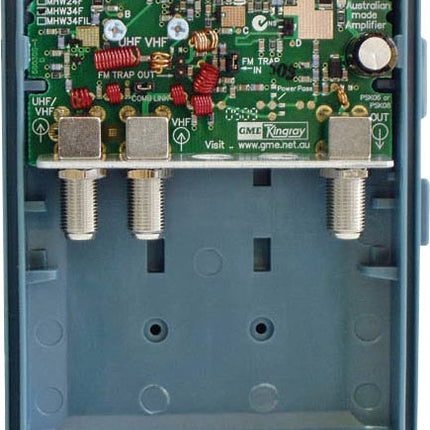

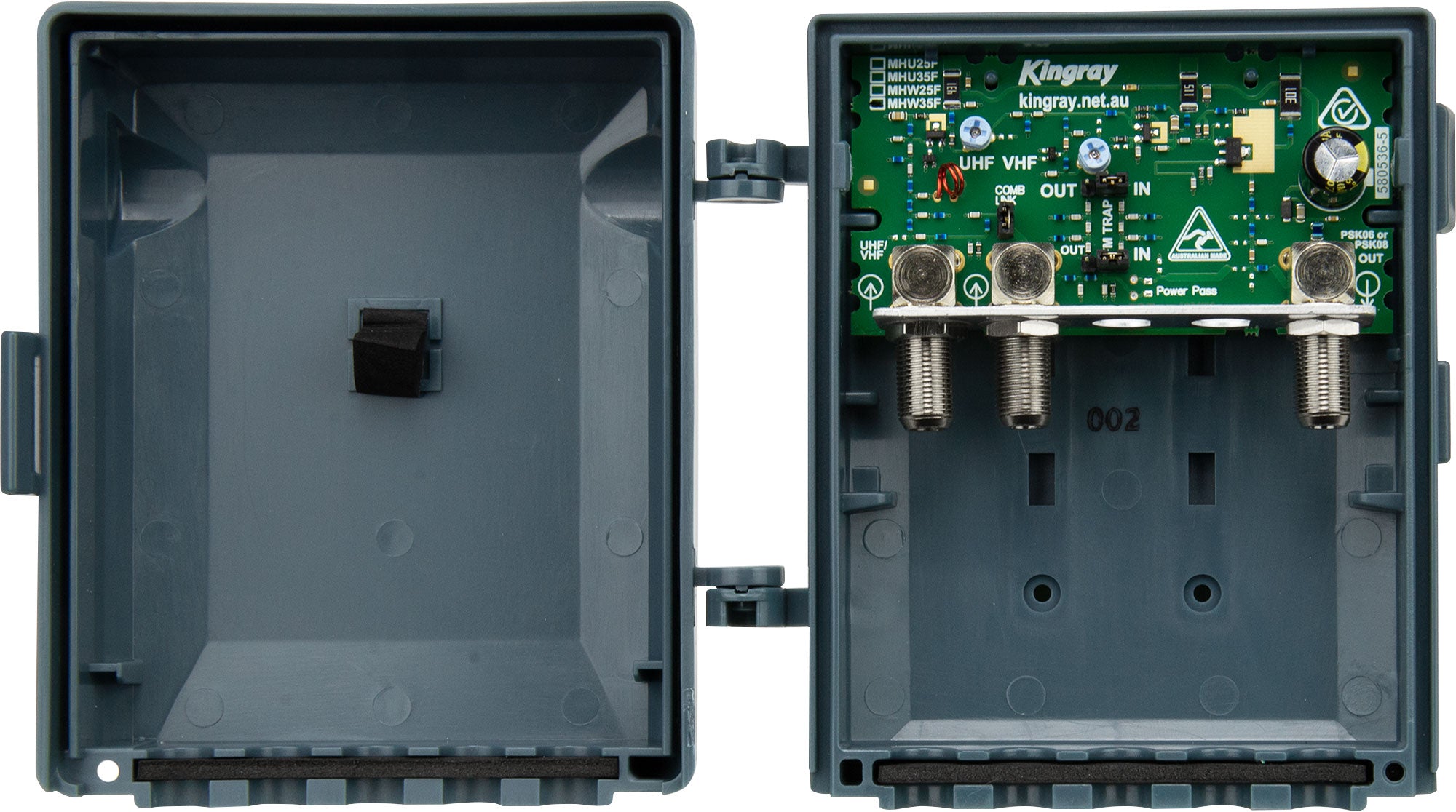

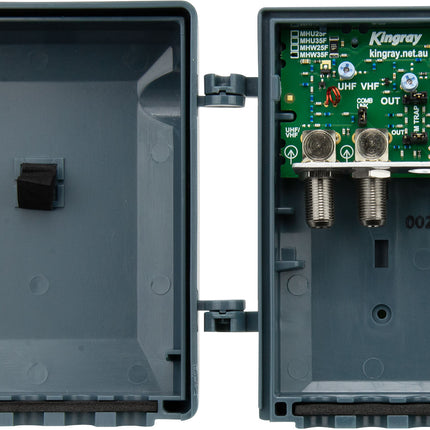

The Kingray MHW35F Masthead Antenna Amplifier is a professional-grade VHF/UHF masthead amplifier designed to maximise television signal strength while minimising interference.
Supporting both combined and separate VHF/UHF antenna inputs, the MHW35F delivers up to 35dB UHF gain and 26dB VHF gain, making it ideal for installations where weak signal levels require amplification before distribution.
Advanced filtering removes unwanted 4G/LTE mobile interference, while integrated low-band filtering reduces interference from services below 174MHz. The amplifier also features a selectable FM radio pass-through, allowing FM reception when required.
Designed for Australian conditions, the MHW35F features a durable weatherproof housing and is remotely powered using a compatible Kingray PSK06 or PSK08 power supply (sold separately).
Key Features
-
Professional Masthead TV Amplifier
Designed for VHF and UHF television antenna systems
-
High Gain Performance
- Up to 35dB UHF gain
- Up to 26dB VHF gain
-
Separate or Combined Inputs
Supports either individual VHF/UHF antennas or a combined antenna feed
-
Integrated 4G/LTE Filtering
Reduces interference from mobile broadband transmissions above 694MHz
-
Low Band Filtering
Minimises unwanted signals below 174MHz for cleaner TV reception
-
Selectable FM Radio Pass-Through
Allows FM signals (88–108MHz) to pass when required
-
Gain & Tilt Controls
Adjustable UHF gain and VHF tilt control for system optimisation
-

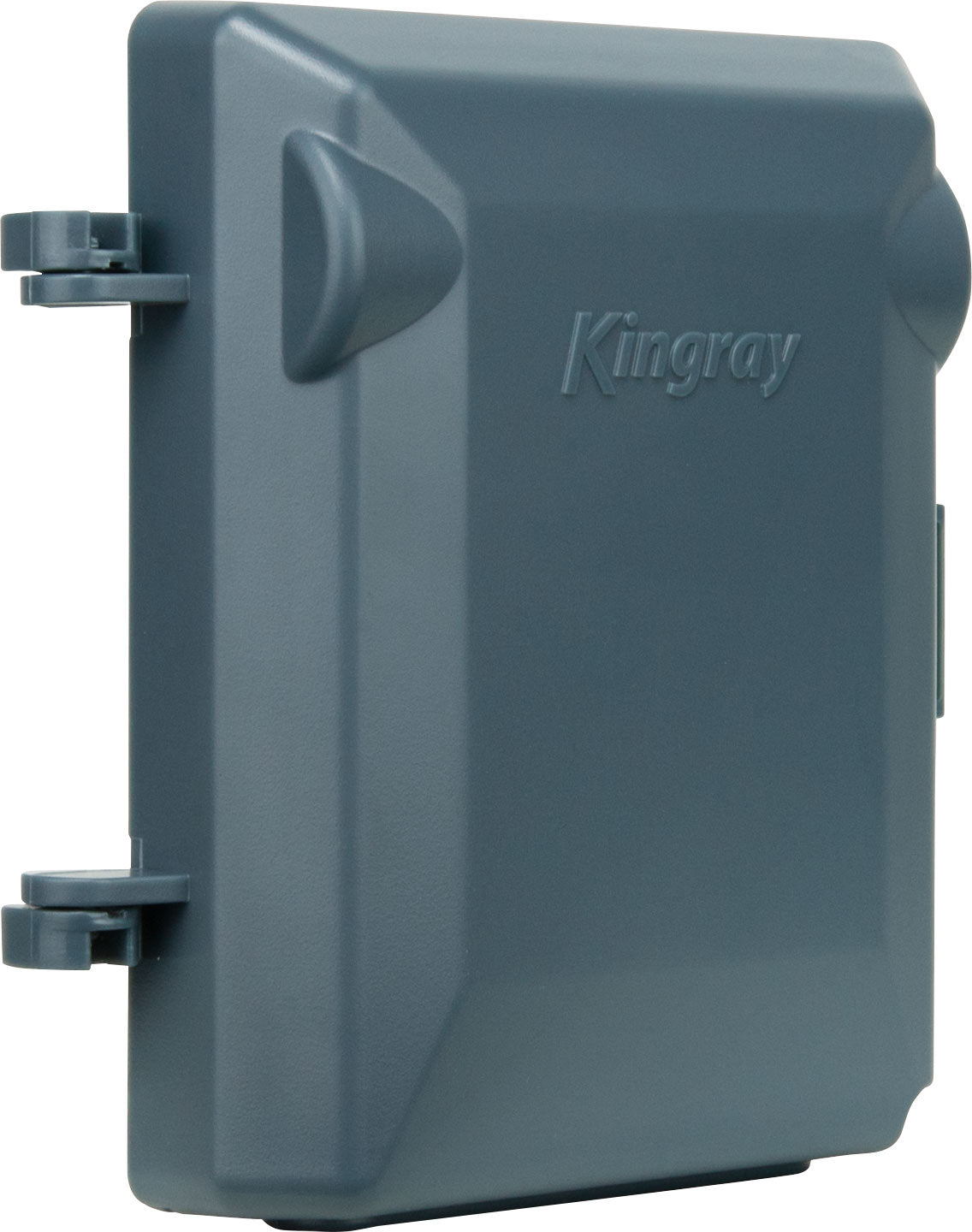

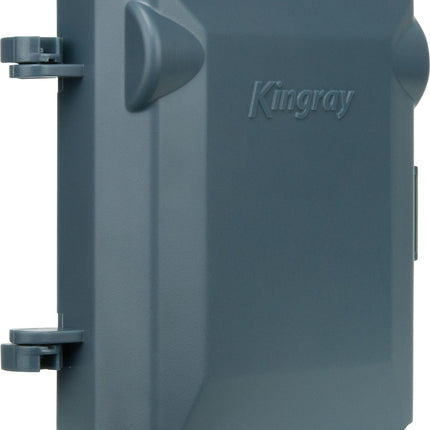

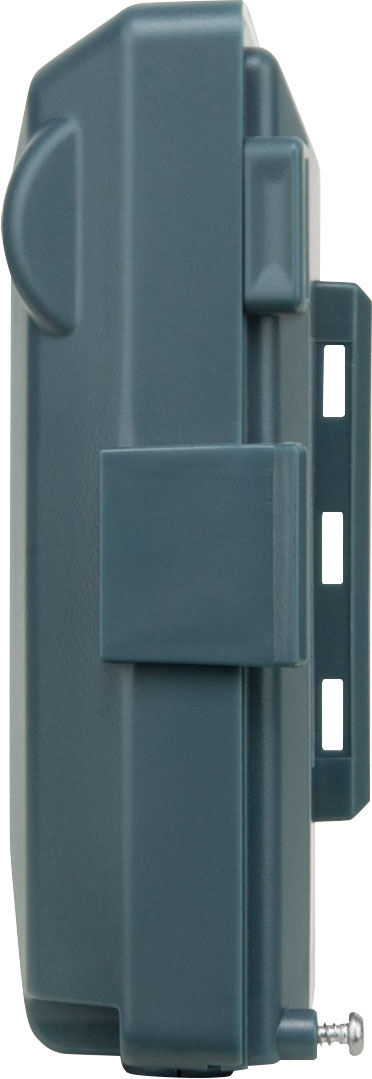

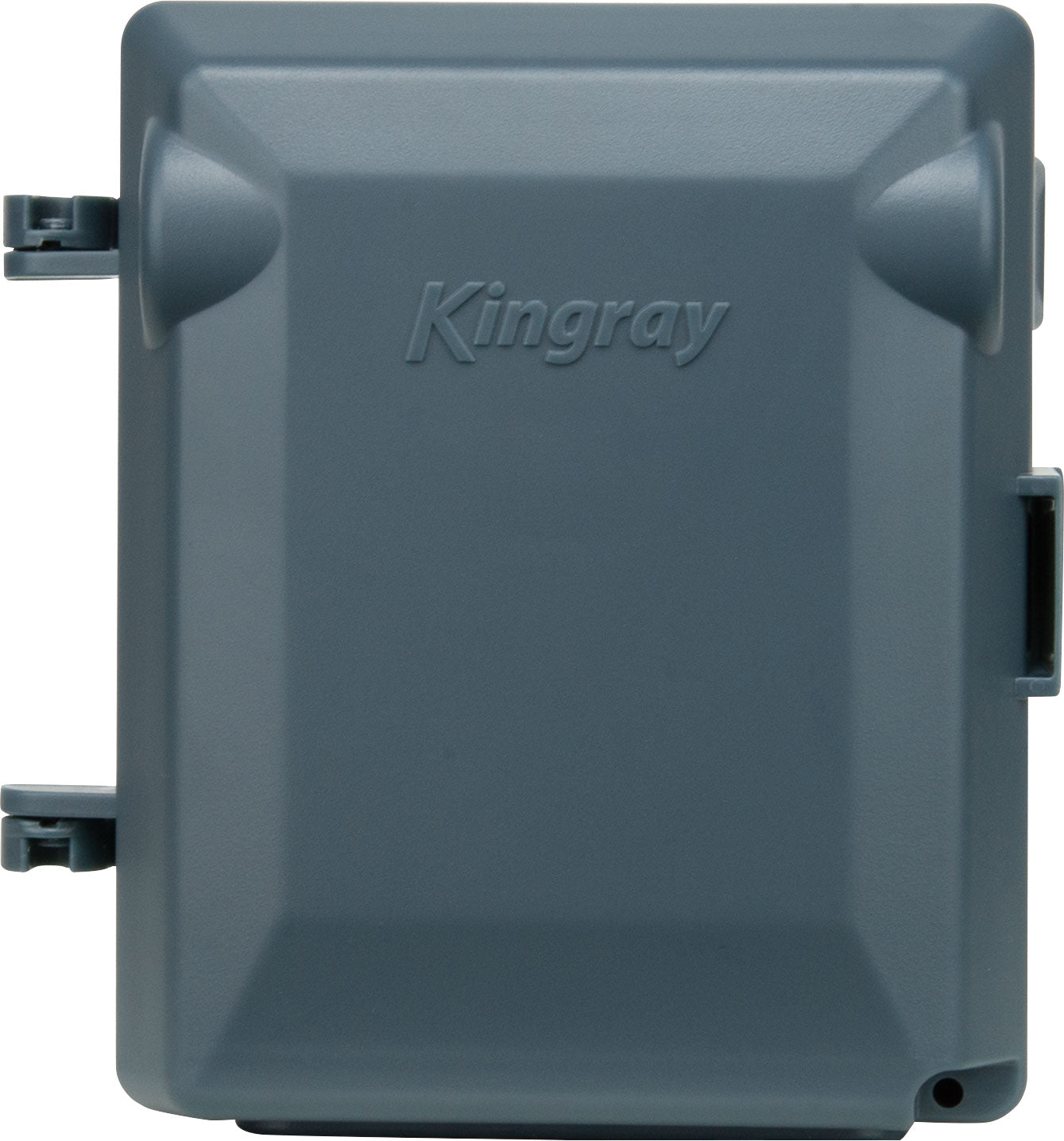

Weatherproof Housing
Suitable for outdoor antenna installations
-
High Output Capability
108dB IMR3 output for excellent signal handling performance
-
F-Type Connectors
Secure, professional-quality RF connections
Applications
Perfect for:
- Digital TV antenna systems
- Residential antenna installations
- Commercial MATV systems
- Rural and fringe reception areas
- Apartment and multi-dwelling installations
- TV distribution systems requiring masthead amplification
Specifications
-
Brand: Kingray
-
Model: MHW35F
-
Type: Masthead antenna amplifier
Frequency Range
-
VHF: 174–230 MHz
-
UHF: 520–694 MHz
Gain
-
UHF: Up to 35dB
-
VHF: 22–26dB
Gain Controls
-
UHF Gain Control: 15dB
-
VHF Tilt Control: 16–12dB
Performance
- Output Level: 108dB IMR3 (DIN45004B @ -60dB IMR)
- Noise Figure:
Filtering
- 4G/LTE Filter
- Pager Filter: -25dB @ 148MHz & 158MHz
- FM Filter: -25dB @ 88–108MHz
- Band 1 Filter: -30dB @ 44MHz
Connections
Power
- Power Consumption: 80mA
- Compatible Power Supplies:
- Kingray PSK06 Series
- Kingray PSK08 Series
(Sold separately)
What's Included
- 1 × Kingray MHW35F Masthead Antenna Amplifier
- 1 × Cable Tie
- 1 × Installation Manual
Why Choose the Kingray MHW35F?
The MHW35F provides powerful, low-noise amplification with advanced interference filtering, making it an ideal solution for improving digital TV reception in demanding installations.
Warranty
3-Year Manufacturer's Warranty
This product is backed by a 3-year warranty from the date of purchase. Under the manufacturer's warranty terms, defective products may be repaired, replaced, or refunded.
