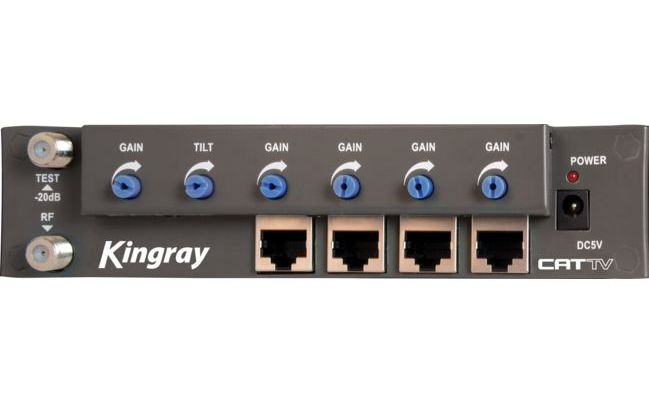

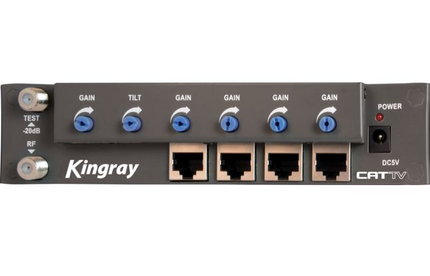

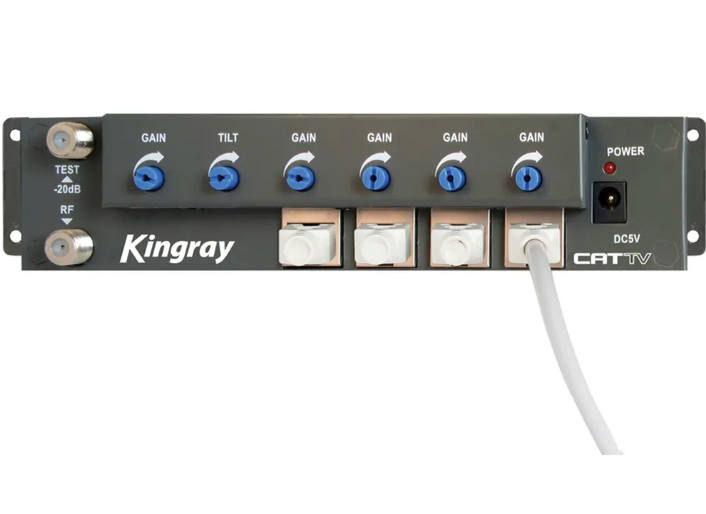

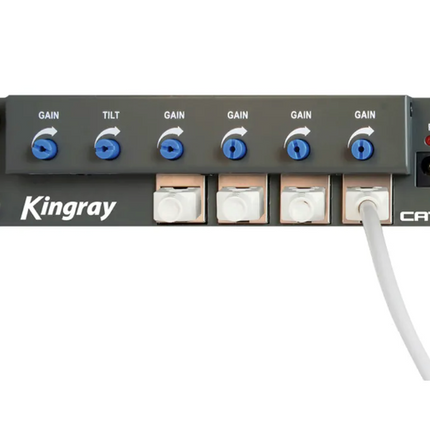

Kingray CAT01 4-Way RF over CAT5 Amplifier
High-Output Distribution Amplifier with Gain & Tilt Controls
Reliable Signal Distribution for Multiple TVs
The Kingray CAT01 4-Way RF over CAT5 Amplifier is the powerhouse of the Kingray CATTV™ system, engineered to deliver quality RF signals to up to four television receivers. With master gain and tilt controls plus individual outlet gain controls, it ensures balanced output levels regardless of cable length or setup.
Key Features
-
High Output Performance – supplies a strong signal to up to 4 TVs
-
Maximum Gain: 35dB with adjustable controls
-
Individual Outlet Control: Fine-tune each output for cable runs
-
Tilt Control: 0–15dB for frequency balancing
-
Wide Bandwidth: Supports frequencies from 47–862MHz
-
Test Point: –20dB for accurate system measurements
Ideal For
- Homes and businesses distributing TV signals to multiple rooms
- Installations requiring an equal signal across varying cable lengths
- Professional installers needing precise control over signal strength
- CATV systems requiring balanced, high-quality RF distribution
Technical Overview
-
Model: CAT01
-
Amplifier Type: RF Distribution (CAT5 compatible)
-
Gain: 35dB max | Input Gain Control: 0–20dB
-
Tilt Control: 0–15dB
-
Noise Figure: –8dB
-
Return Loss: –13dB
-
Isolation (Port-to-Port): –20dB
-
Frequency Range: 47–862MHz
-
Test Point: –20dB
-
Current Draw: 800mA @ 5V DC
-
Power: Mains powered
-
Packaged Dimensions: 31.0 × 22.5 × 5.5 cm
Why Choose Kingray CAT01?
Built for reliability, precision, and professional-grade performance, the Kingray CAT01 Amplifier makes distributing RF signals across multiple televisions simple and effective. With adjustable gain, tilt, and outlet controls, it ensures perfect balance and high-quality viewing in any setup.
