Description
Heavy-duty 12W mono amplifier module with overload protection, moisture-resistant construction, and no external heatsink required

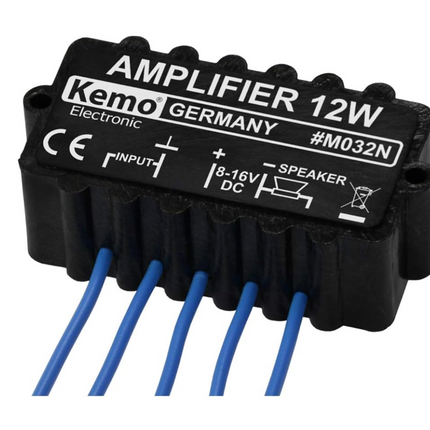

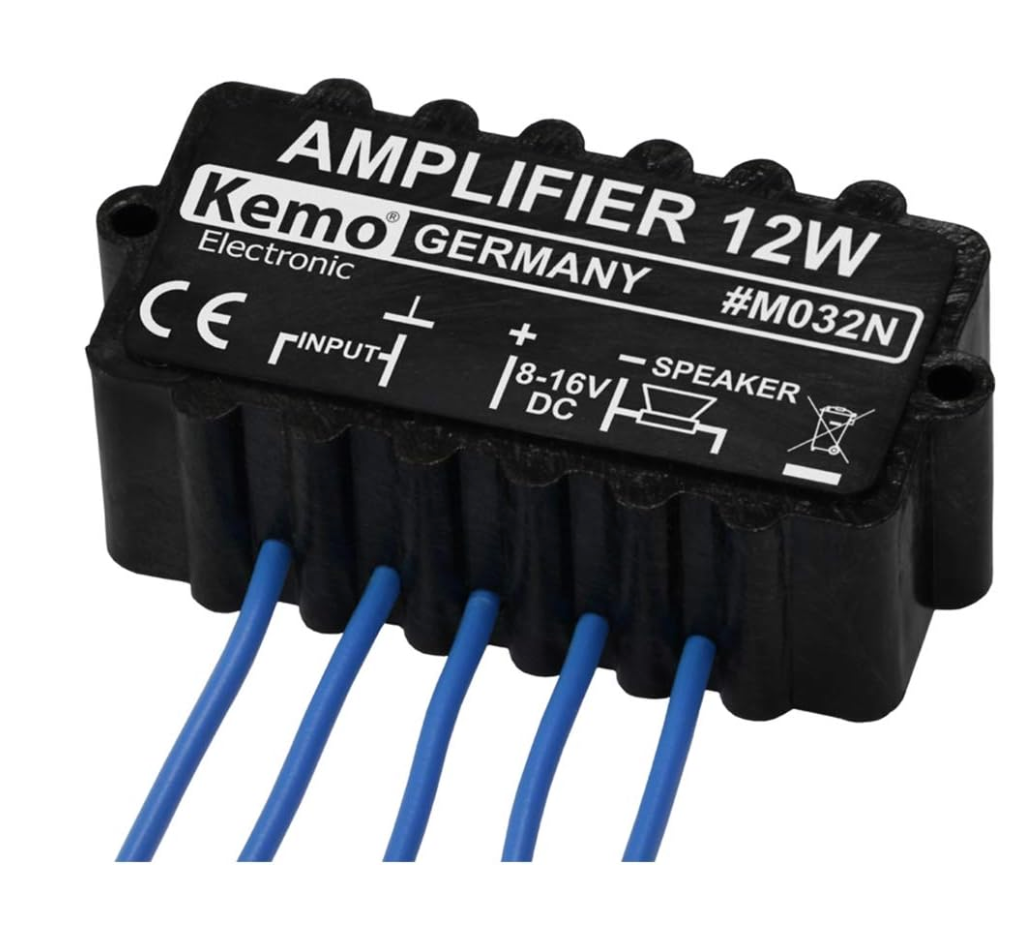

The Kemo M032N Universal Amplifier Module is a compact yet powerful 12W mono amplifier designed for reliable performance in demanding DIY, embedded, and industrial audio applications.
Engineered in Germany, the M032N features a unique heat-conductive sealed enclosure that eliminates the need for external heatsinks while providing excellent protection against moisture, vibration, overheating, and overload conditions. Its robust design makes it ideal for installations where reliability and durability are critical.
With support for a wide range of supply voltages and speaker impedances, the M032N offers a flexible and cost-effective solution for custom audio projects.
Key Features
-
12W Maximum Output Power
Delivers strong and reliable audio amplification
-
No External Heatsink Required
Heat-conductive enclosure efficiently dissipates heat
-
Electronic Overload Protection
Built-in protection against overheating and overload conditions
-
Moisture & Vibration Resistant
Fully sealed construction for demanding environments
-
Compact Installation Size
Easy integration into custom projects and embedded systems
-
Wide Speaker Compatibility
Supports 4Ω to 16Ω speaker loads
-
German Engineered Design
Reliable performance with proven industrial-grade construction
Applications
Perfect for:
- DIY audio projects
- Custom speaker systems
- Industrial audio installations
- Intercom and communication systems
- Portable audio equipment
- Embedded electronics applications
Specifications
-
Brand: Kemo
-
Model: M032N
-
Amplifier Type: Mono amplifier module
-
Output Power: 12W
-
Number of Channels: 1
Electrical Specifications
- Operating Voltage: 8V – 16V DC
- Speaker Impedance: 4Ω – 16Ω
- Frequency Response: 40Hz – 20kHz
Protection Features
- Electronic overload protection
- Electronic overheating protection
Construction
- Heat-conductive sealed plastic enclosure
- Moisture resistant
- Vibration resistant
Physical Specifications

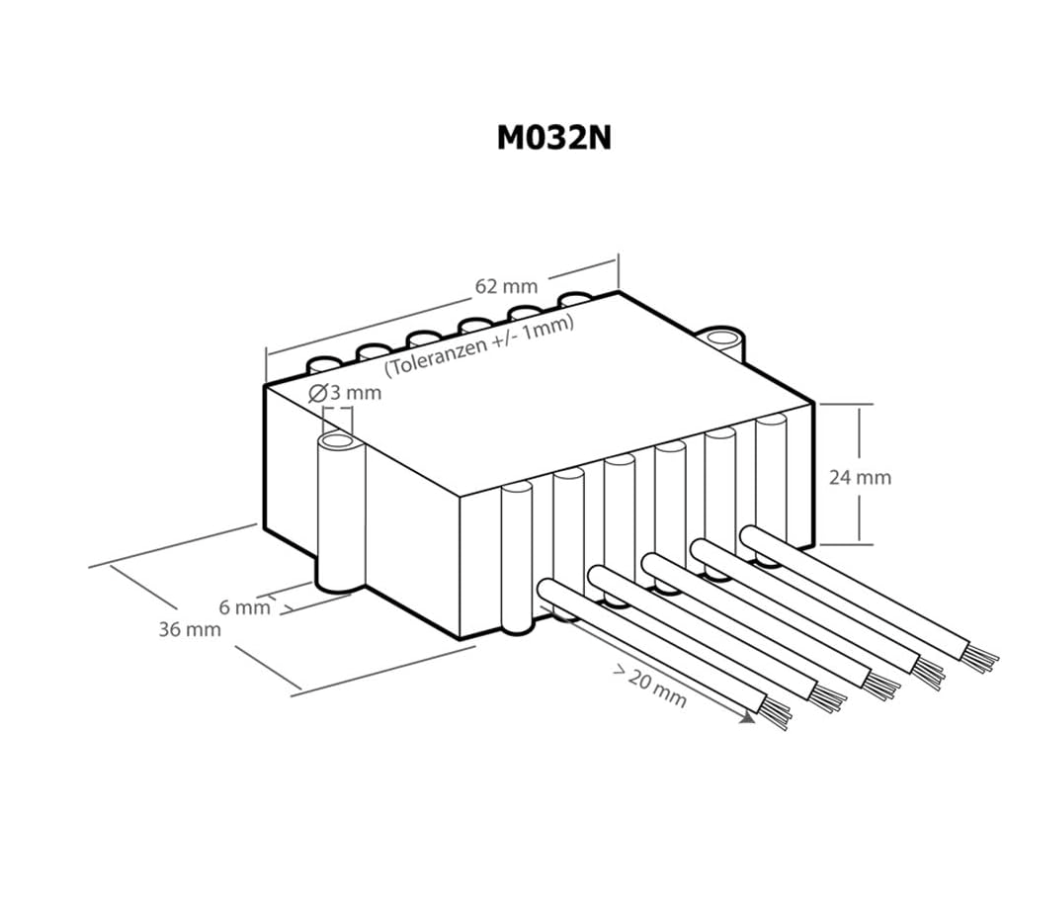

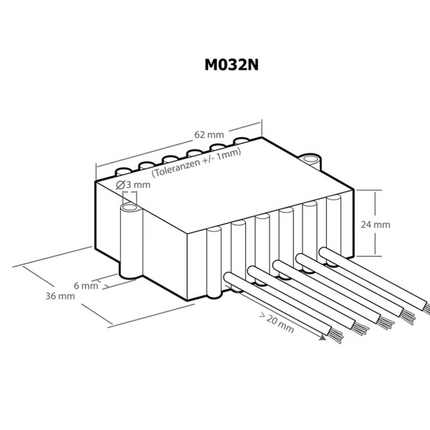

- Dimensions: 70 × 36 × 23 mm
- Weight: 100g
- Mounting Type: Through-hole mount
Certifications
Why Choose the Kemo M032N?
The Kemo M032N offers a unique combination of compact size, robust protection, and reliable audio performance. Its sealed, heat-conductive housing eliminates the need for additional cooling while providing long-term durability in harsh operating environments.
