Description

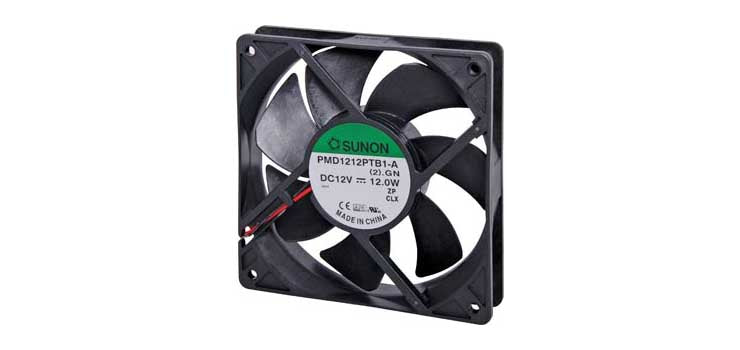

Efficiently cool your electronic equipment with the F 1164 12V DC 120mm Sunon Ball Bearing Cooling Fan. Its thermoplastic frame ensures long-lasting use and minimal noise. This fan meets CSA and UL standards, making it a reliable choice for your cooling needs. Designed with a thermoplastic frame, this fan guarantees durability and quiet operation. Stay confident in your cooling system with our fans, built to meet CSA and UL standards. We are a trusted distributor of Sunon products, providing you with top-of-the-line cooling solutions.
Specifications
- Mechanical Characteristics
- Motor Design: 4 poles brushless DC motor
- Bearing System: Precision ball bearing system
- Frame Material: Thermoplastic PBT of UL94V-0
- Blade Material: Thermoplastic PBT of UL94V-0
- Bobbin Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the fan blade

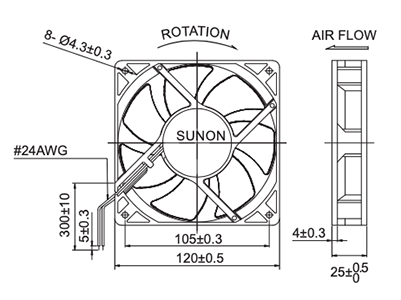

- Mounting Holes: 8x 4.3mm holes
- Weight: 220g
- Shipping Weight: 0.26000Kg
- Dimensions: 120 x 120 x 25mm
- Electrical Characteristics
- Rated Voltage: 12V DC
- Rated Current: 1000mA
- Rated Power: 12.0W
- Operating Voltage Range: 6~13.8V DC
- Starting Voltage: 6V DC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
- Performance Characteristics
- Rated Speed: 4500 RPM ±10%
- Air Flow: 150 CFM
- Static Pressure: 0.62 Inch-H2O
- Noise Level: 54dB(A)
- Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
- Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
- Protection: Automatic restart
