Description
Expand Your Mesh Coverage with Seamless Connectivity

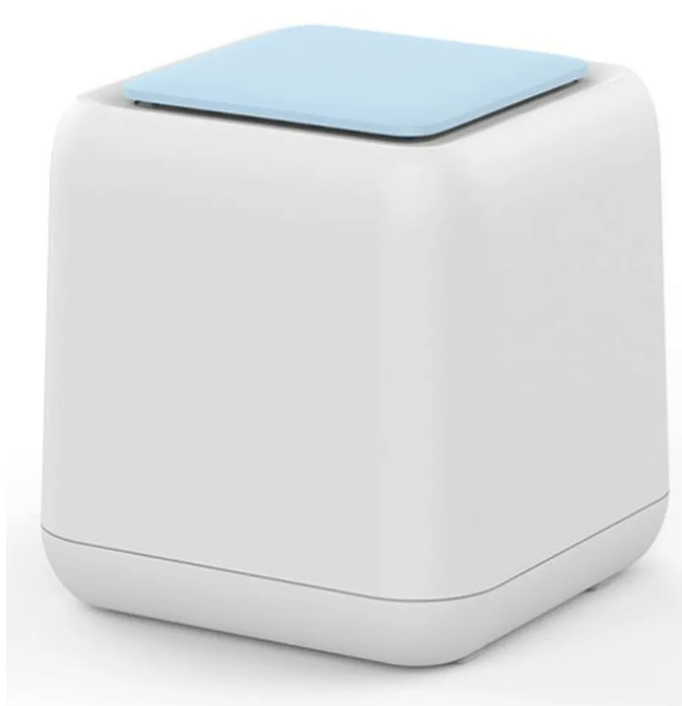

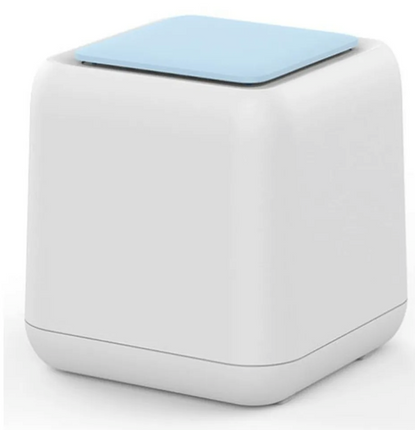

The AC1200 Mesh Network Extra Satellite Module is the perfect addition to your existing mesh Wi-Fi setup. Designed to work with the AC1200 Base and Satellite Kit (model YN8564), this unit helps eliminate dead zones and extend your wireless network coverage with strong dual-band performance across your home or office.
Key Features:
-
Expands Your Mesh Network – Adds coverage to hard-to-reach areas
-
Dual-Band Performance – 300Mbps on 2.4GHz + 867Mbps on 5GHz
-
Supports WPA/WPA2 Encryption – Secure connections for all devices
-
Internal Antennas – 4 x 3dBi omni-directional antennas for reliable signal strength
-
Plug and Play Setup – Simple integration with your existing AC1200 mesh base
Technical Specifications:
-
Frequency Bands: 2.4GHz & 5GHz
-
Transmission Speed: Up to 867 Mbps
-
Transmit Power: 20 dBm max
-
Sensitivity:
- 802.11b: –93 dBm
- 802.11g: –73 dBm
- 802.11a: –76 dBm
-
Encryption Standards: WPA / WPA2, WPA-PSK / WPA2-PSK
-
Internal Antennas: 4 x 3dBi omni-directional
-
Ports:
- 2 x 10/100/1000 Mbps LAN
- 1 x 10/100 Mbps LAN
-
Memory: 64MB Flash / 512MB DDR2 RAM
-
Power Supply: 5V DC plugpack included
-
AC Input Voltage: 100V – 240V
-
Device Dimensions: 90 x 90 x 95 mm
-
Weight: 291g
Ideal For:
- Extending Wi-Fi to additional rooms, garages, or outdoor areas
- Creating a stable, high-speed home or office mesh network
- Users of the YN8564 AC1200 Mesh Base Kit needing more coverage
Note: This satellite module requires the YN8564 Base Router (sold separately) to function.
