Description

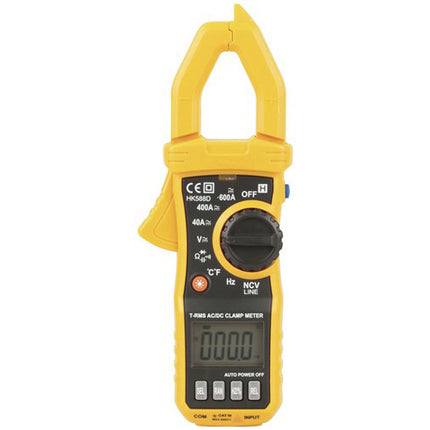

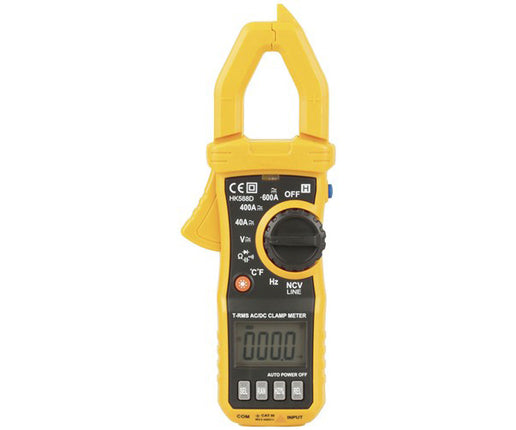

The Digitech QM1632 is a powerful clamp meter, capable of accurately measuring AC/DC current up to 600A, and voltage up to 600V with high precision. It features a True RMS for more accurate readings and quick response times. This reliable clamp meter will make measuring easier and more efficient.
Features:
- True RMS
- Non contact voltage testing
- Relative measurement
- Frequency measurement
- Capacitance
- Data hold
- Temperature
- Resistance
- Display: 6000 count
- Measurement Category: 600V Cat III
- Basic VDC Accuracy: 0.5%
- AC Rectification: True RMS
- Special Features: Non contact voltage, LINE test, data hold, backlight, relative measurement.
Specifications
- Capacitance Ranges: 10nF, 100nF, 1µF, 10µF, 100µF, 1mF, 10µF, 100mF
- AC Current Ranges: 40A, 400A, 600A
- DC Current Ranges: 40A, 400A, 600A
- Frequency Ranges: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10Hz
- Resistance Ranges: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40Ω
- Outdoor / Exterior Scale: -20°C, 1000°C
- Outdoor / Exterior Scale: 0°F, 1800°F
- AC Voltage Ranges: 400mV, 4V, 40V, 400V, 600V
- DC Voltage Ranges: 400mV, 4V, 40V, 400V, 600V
- Data Hold: true
- Display Type: LCD
- Display Backlight: White LED Backlit
- Safety Rating Cat: Cat III
- Safety Rating Max Volt: 600V
- Count Maximum Reading: 4000 count
- True RMS: true
- Autorange: true
- Measures duty cycle: true
- Width: 72mm
- Height: 194mm
- Depth: 35mm
- Weight: 230g
- Size / Shape: AAA
- Battery quantity: 3pc
- Batteries included: true
- Compartment location: Back
- How is battery compartment kept closed: Screw
- Packaged Volume: 1.8l
- Packaged Weight: 0.49kg
- Packaged Length: 23.5cm
- Packaged Width: 15.6cm
- Packaged Height: 4.9cm
- Measurement Range Count: 4000 count
- Meter Input Impedence: 10MΩ
- Non-contact Voltage Indicator: true
- Measures diode: true
