Compact 0–16V DC adjustable laboratory power supply with 25A output, digital voltage and current displays, and efficient switchmode regulation

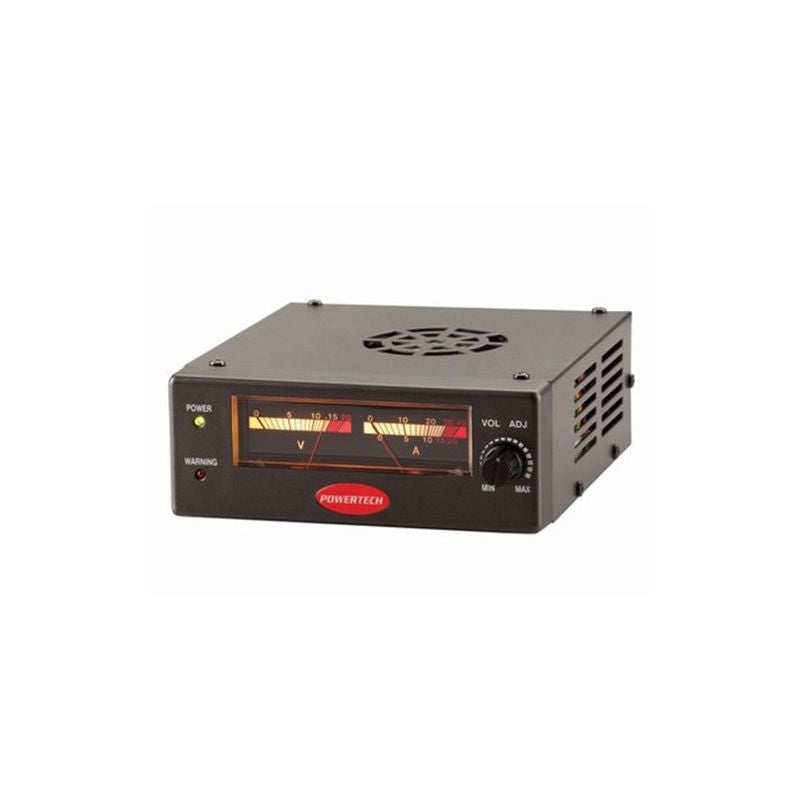

The Powertech MP3802 Compact Switchmode Laboratory Power Supply is a high-current adjustable DC power supply designed for electronics testing, development, servicing, automotive electronics, and workshop applications.
Providing an adjustable 0–16V DC output with up to 25A current capacity, the MP3802 offers plenty of power for demanding low-voltage equipment while maintaining a remarkably compact footprint.
Its efficient switchmode power supply (SMPS) design provides stable regulated output with reduced heat and power loss compared with traditional linear supplies. Dedicated voltage and current displays allow easy monitoring, while standard 4mm banana/binding post terminals provide convenient connection to test equipment and projects.
Key Features
-
Adjustable 0–16V DC Output
Flexible voltage control for a wide variety of electronics applications
-
High 25A Current Capacity
Suitable for demanding low-voltage devices and high-current testing
-
Switchmode Regulation
High-efficiency SMPS design with reduced heat and power dissipation
-
Voltage & Current Displays
Clearly monitor output voltage and current during operation
-
Low Output Ripple
Just 9mV ripple for stable DC power
-
4mm Banana / Binding Post Outputs
Convenient connections for test leads and equipment
-
Compact Bench Design
Delivers substantial output power while occupying minimal workspace
-
Australian 230V Mains Compatible
Supplied with mains lead for convenient bench installation
Applications
Perfect for:
- Electronics development
- Laboratory testing
- Electronics servicing and repair
- Automotive electronics
- 12V equipment testing
- Communications equipment
- DIY electronics projects
- Workshop bench power
Specifications
-
Brand: Powertech
-
Model: MP3802
-
Power Supply Type: Laboratory
-
Regulation: Switchmode (SMPS)
-
Number of Outputs: 1
DC Output
- Output Voltage: 0–16V DC
- Maximum Current: 25A
- Ripple Voltage: 9mV

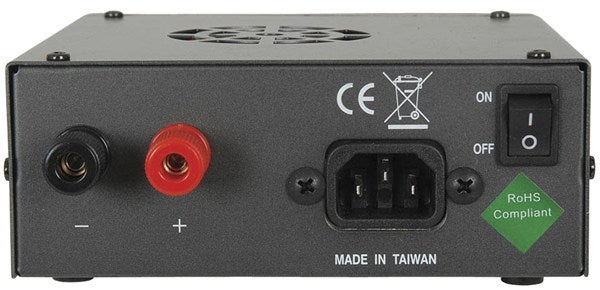

- Output Connection: 4mm Banana / Binding Post Terminals
Display
- Voltage Display: Yes
- Current Display: Yes
AC Input
- Mains Voltage: 230V AC
- Frequency: 50Hz
- Australian Mains Rated: Yes
- Auto-Select Mains Voltage: No
- Mains Connection: Standard IEC
- Mains Lead: Included
Dimensions
- Width: 148mm
- Height: 62mm
- Depth: 162mm
Packaged Specifications
- Packaged Weight: 1.59kg
- Packaged Dimensions: 20.5 × 19.5 × 6.5cm
- Packaged Volume: 2.6L
What's Included
- 1 × Powertech MP3802 Laboratory Power Supply
- 1 × Mains Power Lead
Why Choose the Powertech MP3802?
The MP3802 combines a wide 0–16V adjustment range, substantial 25A output, digital monitoring, and efficient switchmode technology in a compact package, making it an excellent bench supply for technicians, electronics enthusiasts, and workshops.
