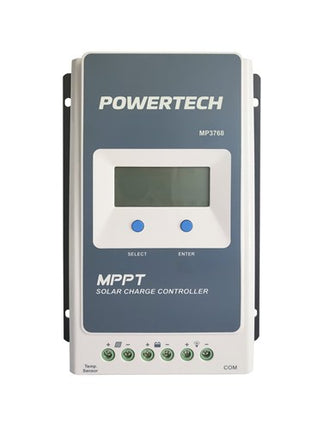

Powertech 12V/24V 30A MPPT Solar Charge Controller with LCD display for lead acid and Lithium batteries MP3768

Description

MP3768 is a 12V/24V 30A MPPT solar charge controller with an LCD display, designed for rechargeable lead-acid and lithium batteries. It features dual-level MPPT technology and a wide range of input voltage for optimal power utilization and improved system efficiency up to 99%. Get reliable, efficient charging for the ultimate solar power harvesting.

Features:
  • Advanced MPPT control technology
  • High tracking and conversion efficiency
  • Supports Sealed, Gel or flooded lead acid and Lithium batteries
  • 3-stage intelligent charging
  • Multiple load work modes
  • Extensive electronic protection
  • Backlit LCD display
  • RS485 communication
  • Common negative grounding
  • A intelligent 3 stage compact MPPT solar charge controller.
  • Supports 390W at 12V or 24VDC arrays up to 780W.
Specifications:
  • Compatible Battery Bank Voltages 12 / 24VDC Selectable
  • Solar Input Voltage: 16 - 100VDC
  • Maximum Solar Array Size: 580W/12VDC , 1170W / 24VDC
  • Maximum Charge Output: 30A
  • Maximum Load Current: 30A
  • Dimensions: 228(H) x 164(W) x 55(D)mm, 1.26kg
Battery support:
  • Sealed, gel or flooded Lead-acid (8~17V/12V; 18~32V/24V)
  • LiFePO4 (12V/24V)
  • LiNiCoMnO2 (12V/24V)
  • LiFePO4 (12V/24V)
  • LiNiCoMnO2 (12V/24V)

Specifications

Packaged Volume : 3.65l
Packaged Weight : 1.44kg
Packaged Length : 25.5cm
Packaged Width : 18.6cm
Packaged Height : 7.7cm
Length : 228mm
Width : 164mm
Height : 55mm
Weight : 1260g
Max Solar Panel Array : 390W, 780W
Max PV Open Circuit Voltage : 100V
Max Charging Current : 30A
Charge Controller Technology : Maximum Power Point Tracking (MPPT)
Product form
💰 You save $24.05 (8% off RRP)

$269.00  $244.95

  • Shipped today? Order within: Oct 11, 2026 14:00:00 +1100
Free pickup in our shop(s)
    📦 Order now, ships next business day
    • Free shipping Australia-wide on orders over $99.
    • Secure checkout. Your payment is encrypted and protected.

    MP3768 is a 12V/24V 30A MPPT solar charge controller with an LCD display, designed for rechargeable lead-acid and lithium batteries.... Read more

    • Secure & safe checkout

      paypal
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa
    🇦🇺 Aussie Owned 📦 44,000+ Products Sold

    Description

    MP3768 is a 12V/24V 30A MPPT solar charge controller with an LCD display, designed for rechargeable lead-acid and lithium batteries. It features dual-level MPPT technology and a wide range of input voltage for optimal power utilization and improved system efficiency up to 99%. Get reliable, efficient charging for the ultimate solar power harvesting.

    Features:
    • Advanced MPPT control technology
    • High tracking and conversion efficiency
    • Supports Sealed, Gel or flooded lead acid and Lithium batteries
    • 3-stage intelligent charging
    • Multiple load work modes
    • Extensive electronic protection
    • Backlit LCD display
    • RS485 communication
    • Common negative grounding
    • A intelligent 3 stage compact MPPT solar charge controller.
    • Supports 390W at 12V or 24VDC arrays up to 780W.
    Specifications:
    • Compatible Battery Bank Voltages 12 / 24VDC Selectable
    • Solar Input Voltage: 16 - 100VDC
    • Maximum Solar Array Size: 580W/12VDC , 1170W / 24VDC
    • Maximum Charge Output: 30A
    • Maximum Load Current: 30A
    • Dimensions: 228(H) x 164(W) x 55(D)mm, 1.26kg
    Battery support:
    • Sealed, gel or flooded Lead-acid (8~17V/12V; 18~32V/24V)
    • LiFePO4 (12V/24V)
    • LiNiCoMnO2 (12V/24V)
    • LiFePO4 (12V/24V)
    • LiNiCoMnO2 (12V/24V)

    Specifications

    Packaged Volume : 3.65l
    Packaged Weight : 1.44kg
    Packaged Length : 25.5cm
    Packaged Width : 18.6cm
    Packaged Height : 7.7cm
    Length : 228mm
    Width : 164mm
    Height : 55mm
    Weight : 1260g
    Max Solar Panel Array : 390W, 780W
    Max PV Open Circuit Voltage : 100V
    Max Charging Current : 30A
    Charge Controller Technology : Maximum Power Point Tracking (MPPT)
