Description

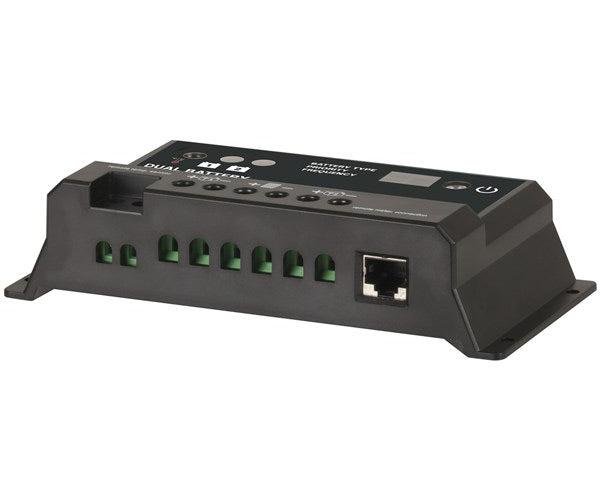

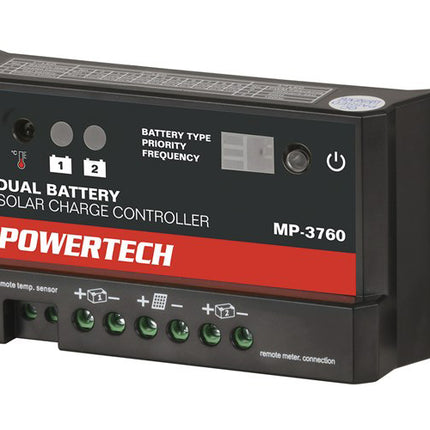

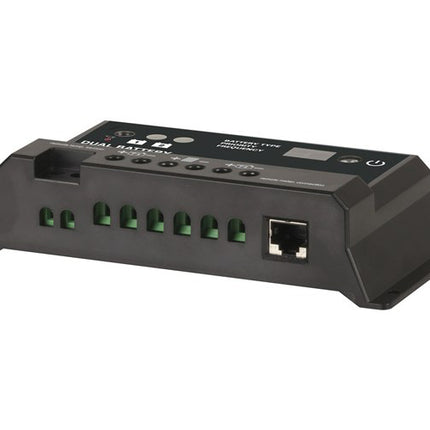

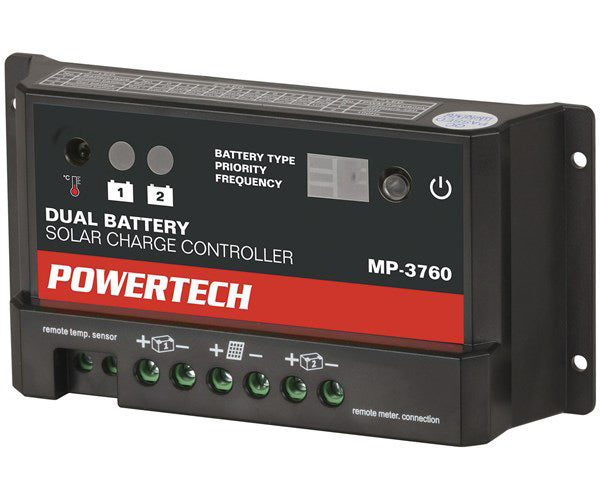

Powertech MP3760 – 12/24V 10A Dual Battery PWM Solar Charge Controller
The Powertech MP3760 is a reliable and efficient dual battery PWM solar charge controller, designed to manage and optimise power delivery in both 12V and 24V solar systems. With advanced PWM technology and support for dual battery charging, this controller helps maintain battery health and system safety in off-grid, mobile, or RV solar setups.
Perfect for large solar arrays and demanding environments, this charge controller features LED status indicators, built-in electronic protections, and a low overnight self-consumption rate to maximise energy efficiency.
Key Features:
- Dual battery charging – charge 2 separate battery banks simultaneously
- Supports both 12V and 24V systems
- Highly efficient PWM charging technology
- Electronic protection against overcharging, short circuits, and reverse polarity
- LED indicators for easy monitoring of charge and battery status
- Low standby current draw – only 4mA overnight
- Recommended panel: ZM9065 14.1A (controller output is panel-limited)
- Max solar input voltage: 30V (12V) / 55V (24V)
- Battery voltage range: 8–15V (12V) / 8–30V (24V)
Ideal For:
- Solar power systems with dual battery banks
- Off-grid cabins and battery backup installations
- RVs, campervans, and marine systems
- Remote monitoring setups and mobile solar power systems
Product Specifications:
- Technology: PWM (Pulse Width Modulation)
- Voltage Support: 12V / 24V systems
- Max Current Draw: 10A
- Dimensions: 153 mm (W) x 76 mm (H) x 37 mm (D)
- Packaged Weight: 0.23 kg
- Packaged Volume: 0.71 L
- Self-Consumption: 4mA (overnight)
