Description

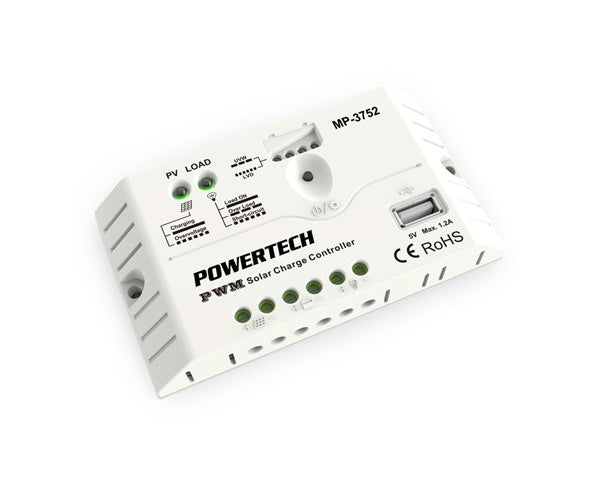

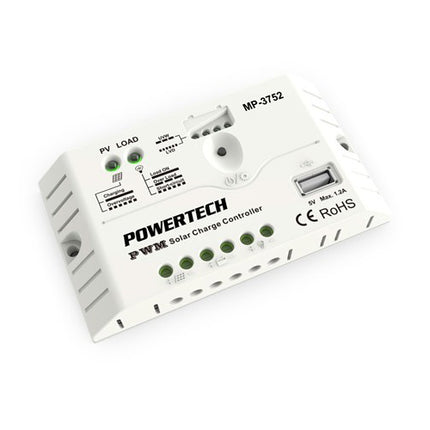

This lightweight controller employs Pulse Width Modulation (PWM) to optimize battery charging. You don't have to check on the system--its autonomous operation assures maximum charging. It can cover up to 320W solar panels, safeguarding against overload, short-circuit, over-discharge, and reverse-polarity. The front panel also contains a USB port, supplying up to 1.2A charging--very helpful in emergencies. It automatically adjusts to the most efficient charging mode, with bulk, equalize, and float options. It is suitable for both sealed lead acid and Gel/flooded cells.
Features:
- Automatic charge mode selection
- Suitable for 12V and 24V battery banks
- USB charging port on front panel
- Charging Modes: Bulk, Equalise, Float
- Supports: Sealed, Gel and Flooded
- USB Output: 5V @ 1.2A
- Terminals to suit cable up to 6mm2.
Specifications
| Packaged Volume : 0.8l |
| Packaged Weight : 0.21kg |
| Packaged Length : 16.1cm |
| Packaged Width : 10.1cm |
| Packaged Height : 4.9cm |
| Length : 148mm |
| Width : 86mm |
| Height : 35mm |
| Weight : 160g |
| Operating Temperature : -35°C, 55°C |
| Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects |
| Liquid/Moisture Ingress Protection : 0 - Not protected |
| IP Rating : IP20 |
| DC Voltage : 12V, 24V |
| DC current rating : 20A |
| Total Current Rating : 1.2A |
| Number of Ports : 1pc |
| Input Type : Screw Terminal |
| Output Type : Screw Terminal |
| Max Solar Panel Array : 240W, 480W |
| Max PV Open Circuit Voltage : 50V |
| Max Charging Current : 20A |
| Max Load Current : 20A |
| Charge Controller Technology : Pulse Width Modulated (PWM) |
