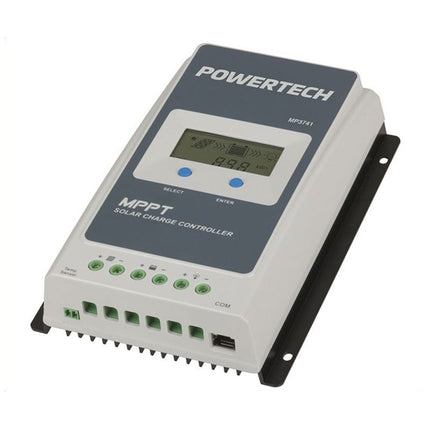

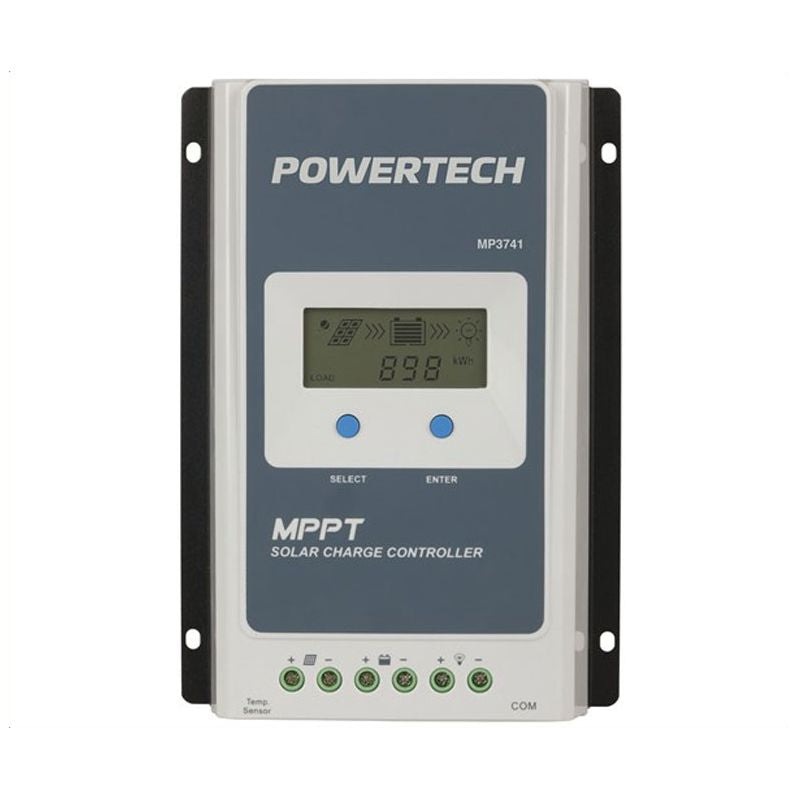

Powertech 20A MPPT Solar Charge Controller, Lithium/SLA Batteries MP3741

Description

Leverages advanced Maximum Power Point Tracking (MPPT) for optimal efficiency and charging capacity. Accommodates 8-32V lead-acid (sealed, gel, or flooded) or lithium battery banks, and supports 12V solar arrays up to 260W or 24V DC arrays up to 520W. Boasts quick, efficient, and secure charging via bulk, constant, and float charge stages, with vital current, voltage, and charge status feedback illuminated on the LCD. Durable construction and heavy-duty screw terminals permit cabling of up to 10AWG for permanent installation.

Note: For Lithium 12.8v batteries, MP3741 has pre-programmed Charge Mode F04 and for 25.6v lithium batteries, Charge Mode F08 is available! Can't find the right Charge Mode for your battery? Not a problem - just get MP3746 and program the controller with data from your battery specs sheet.


Features:

  • Advanced MPPT control technology
  • High tracking and conversion efficiency
  • Supports Sealed, Gel, or flooded lead acid and Lithium batteries
  • 3-stage intelligent charging
  • Multiple load work modes
  • Extensive electronic protection
  • Backlit LCD display
  • RS485 communication
  • Common negative grounding

Specifications:

  • Compatible Battery Bank Voltages 12 / 24VDC Selectable
  • Maximum Input Power 520W (24VDC System) / 260W (12VDC System)
  • Input Voltage 16 - 100VDC
  • Max Load Current 20A
  • Dimensions 221(H) x 155(W) x 52(D)mm, 940g

Battery support:

  • Sealed, gel or flooded Lead-acid (8~17V/12V; 18~32V/24V)
  • LiFePO4 (12V/24V)
  • LiNiCoMnO2 (12V/24V)

Specifications

Packaged Volume : 3.35l
Packaged Weight : 1.1kg
Packaged Length : 24.7cm
Packaged Width : 17.6cm
Packaged Height : 7.7cm
Width : 155mm
Height : 221mm
Depth : 52mm
Weight : 940g
DC Voltage : 12V, 24V
Max Solar Panel Array : 520W
Max PV Open Circuit Voltage : 100V
Max Charging Current : 22.5A
Max Load Current : 20A
Charge Controller Technology : Maximum Power Point Tracking (MPPT)
