Description

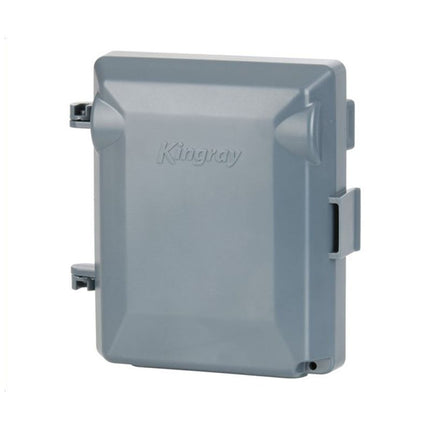

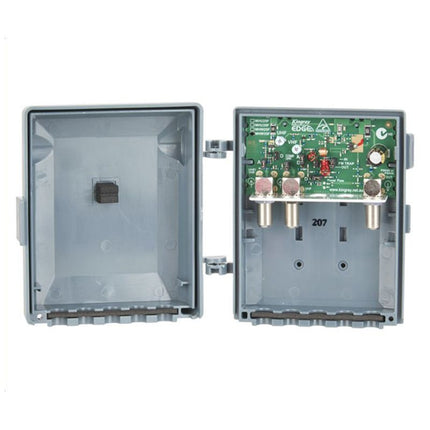

Kingray VHF/UHF Masthead Amplifier with LTE/4G Filters – TDE446 LT3251 MHW35F
Australian-Made High-Gain TV Masthead Amplifier with Selectable Filters
Reliable Signal Boost for Digital TV
As Australia’s broadcast spectrum shifts toward 4G/LTE mobile services, the Kingray VHF/UHF Masthead Amplifier ensures strong, interference-free TV reception. With high VHF & UHF gain and user-selectable filters for FM radio, fixed pagers, and LTE/4G signals, it’s built to deliver crystal-clear performance.
Key Features
-
High Gain Amplifier: UHF gain up to 35dB, VHF gain up to 26dB
-
Selectable Filters: Block interference from FM radio, LTE/4G, and pagers
-
Dual Inputs: Combination or separate VHF & UHF antenna inputs
-
FM Pass Option: Maintain FM reception when required
-
Australian-Made: Quality design and build for local broadcast conditions
-
Complete Kit: Includes AC power injector + F-Type to PAL adaptors
-
Compatible Power Supplies: LT-3256, LT-3258, LT-3259
Ideal For
- Boosting weak VHF/UHF TV signals
- Reducing interference from LTE/4G mobile networks
- Homes in regional or fringe reception areas
- Installers requiring high-quality, locally made amplification
Technical Overview
-
Amplifier Type: Masthead
-
UHF Gain: 35dB (adjustable 15dB)
-
VHF Gain: 22–26dB (adjustable 12–16dB)
-
UHF Frequency Range: 520–694MHz
-
VHF Frequency Range: 174–230MHz
-
Noise Figure: UHF 2.1dB | VHF 3.5dB
-
Packaged Weight: 0.58kg
-
Packaged Dimensions: 27.8 × 14.5 × 6cm
Why Choose Kingray?
Built in Australia, the Kingray Masthead Amplifier is designed to withstand local broadcast challenges. With powerful gain, selectable filtering, and robust build quality, it ensures reliable digital TV reception in even the most demanding environments.
