Description

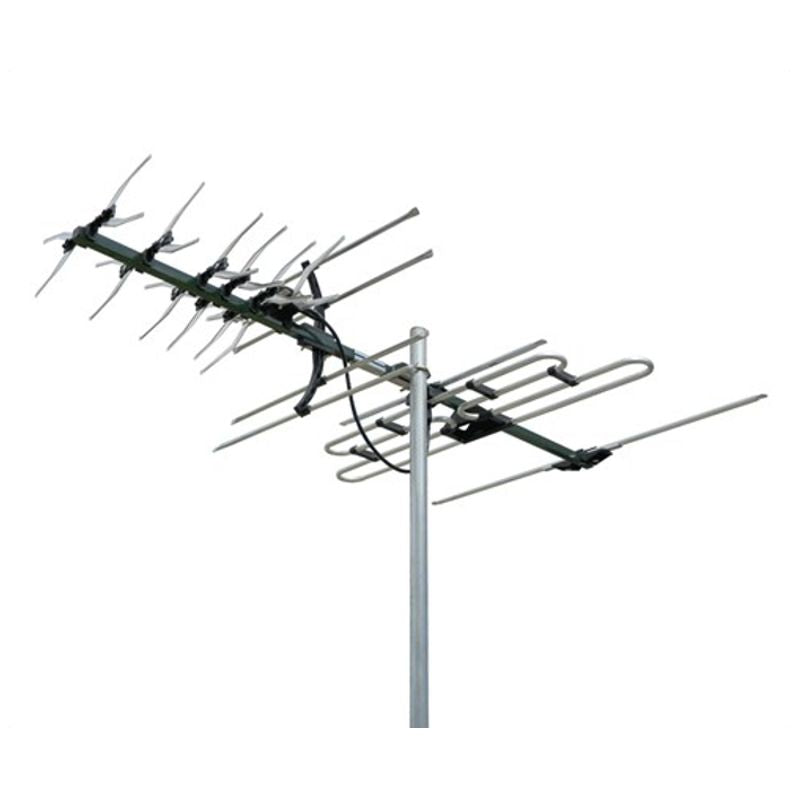

This Digimatch UHF X-type Colinear antenna offers superior signal reception for free-to-air television channels 6-12 and 28-46. Its 27 element design produces a gain of up to 9.5dB, allowing you to watch uninterrupted with maximum clarity. This high-performance UHF X-type Colinear antenna, with its 27 elements and 9.5 dB gain, ensures reliable, clear reception for free-to-air television channels across Band 3, 4, and 5. Enjoy superior image quality without any interruptions.
Features:
• Gain - VHF 7dB, UHF 11dB
• Avg. VSWR - 1.9:1
• Avg. F/B Ratio - VHF 12dB, UHF 18dB
• Channels - 6-12, 28-46 (Now includes 4G Filter)
• Boom Length - 1320mm
Specifications
Width : 900mm |
Mounting Method : Pole MountExterior Roof |
Attachment / Securing Method : U-Bolt |
Packaged Volume : 22.5l |
Packaged Weight : 2kg |
Packaged Length : 100cm |
Packaged Width : 25cm |
Packaged Height : 9cm |
Antenna Type : Yagi |
Usage Location : Outdoor |
Number of elements : 27pc |
Reception Bands : TV Band 3: 174-230MHzTV Band 4: 526-582MHzTV Band 5: 582-694MHz |
UHF Channel Range : 21ch, 46ch |
UHF Gain : 11dB |
VHF Channels Covered : 6ch, 12ch |
VHF Gain : 7dB |
Boom Length : 1305mm |
Antenna Assembly : Bolt Together |
