Description

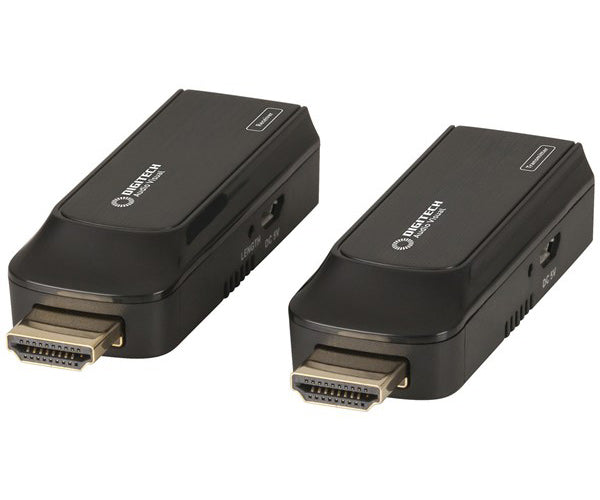

The Digitech 1080p Mini HDMI Cat5e/6 Extender, 50m AC1726 comes with powerful features. It supports high definition resolutions up to 1080p and can extend a signal to a maximum of 50 meters. This reliable device is perfect for digital signage, office presentations, and other applications. It also offers low latency and supports 3D video for the best quality visuals. Made with top level components, this extender is designed for reliable performance and is easy to set up.
Features:
- 50m(Cat6), 40m (Cat5e) Transmission Range
- Power Over Cat5e/Cat6 Cable (PoC)
- HDCP and 3D Support
- Adjustable Equaliser
Specifications:
- Transmission Distance: Up to 50m (Cat6) and up to 40m (Cat5e)
- HDMI: 1.3a
- HDCP: 1.4
- Resolution: Up to 1080p (1920 x 1080) at 50/60Hz
- Video Bandwidth: 4.95Gbps
- Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
- Colour Depth: 8-bit
- Power: 5VDC at 1A (Transmitter)
- Dimensions: 62(L) x 25(W) x 15(H)mm (Each)
Length : 62mm |
Width : 25mm |
Height : 15mm |
PSU Powers : Main Product |
DC Plugpack Voltage : 5V, 5V |
DC Current Draw : 600mA, 1A |
Packaged Volume : 0.74l |
Packaged Weight : 0.16kg |
Packaged Length : 14cm |
Packaged Width : 10.2cm |
Packaged Height : 5.2cm |
Supported Display Resolution : 1080p (1920 x 1080) |
HDMI Version : 1.3a |
HDCP Version : 1.4 |
Switcher/Converter Type : Balun Extender |
Input type : HDMI |
Input Connection : HDMI Type-A |
Output Type : HDMI |
Output Connection : HDMI Type-A |
Power Requirement : External Power Required |
