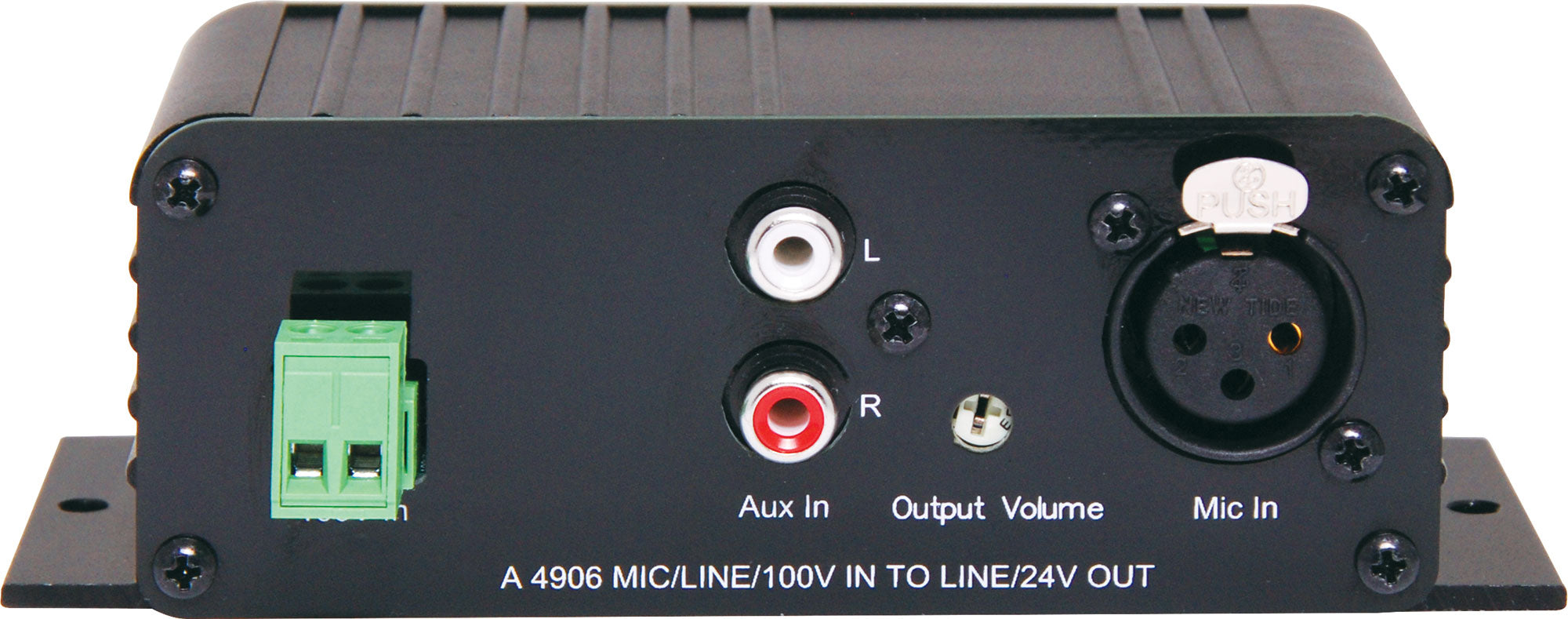

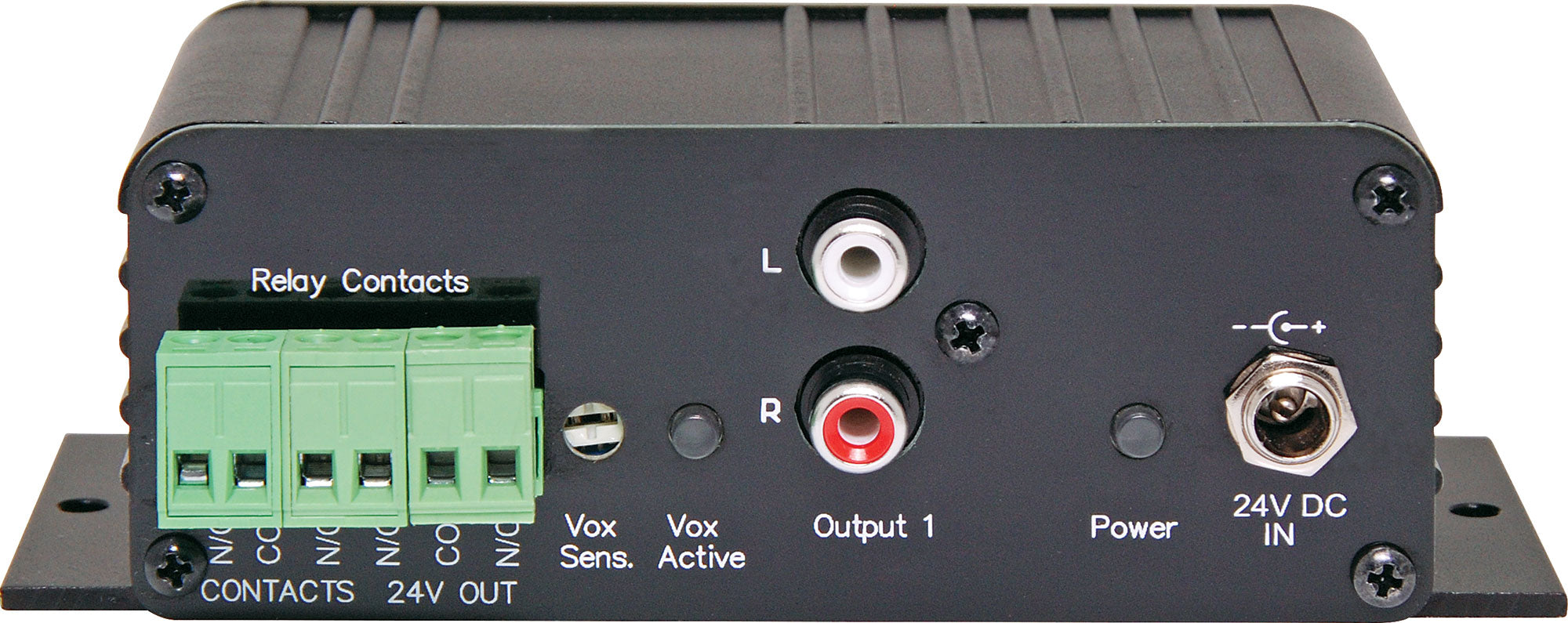

REDBACK Mic/Line/100V Input To Line +24V Switched Outputr A4906

Description

The A4906 is a multifaceted device that can accommodate a line-level signal, balanced microphone signal, or 100V input signal. Its output is a line level signal that can be easily connected to an amplifier. The microphone input offers phantom power and a VOX circuit with adjustable sensitivity, which activates output relays.

The device runs on a 24V DC power source. Covering all your needs, the A4906 allows you to easily connect to an amplifier with its versatile input options and line-level output signal. With features like phantom power and adjustable sensitivity, this device is a reliable and powerful tool powered by a 24V DC power source.

This unit does not come with a power supply. It needs a 24V DC input and can support up to 500mA. A suitable plugpack is necessary such as the M 8968C.

Features

  • Mic, line or 100V input level.
  • Line level output.
  • Phantom power to Mic Input (12V DC).
  • Controls for master volume and VOX sensitivity.
  • VOX operated relay outputs.
  • 24VDC switched output. (120mA Max).
  • VDC operation via 2.1mm DC power jack.
  • Dimensions 133W x 30H x 80D mm.
  • Weight: 0.28 Kg
