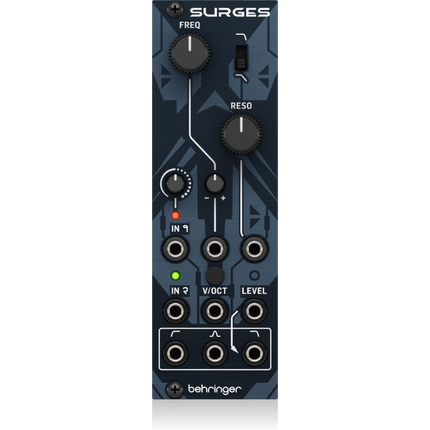

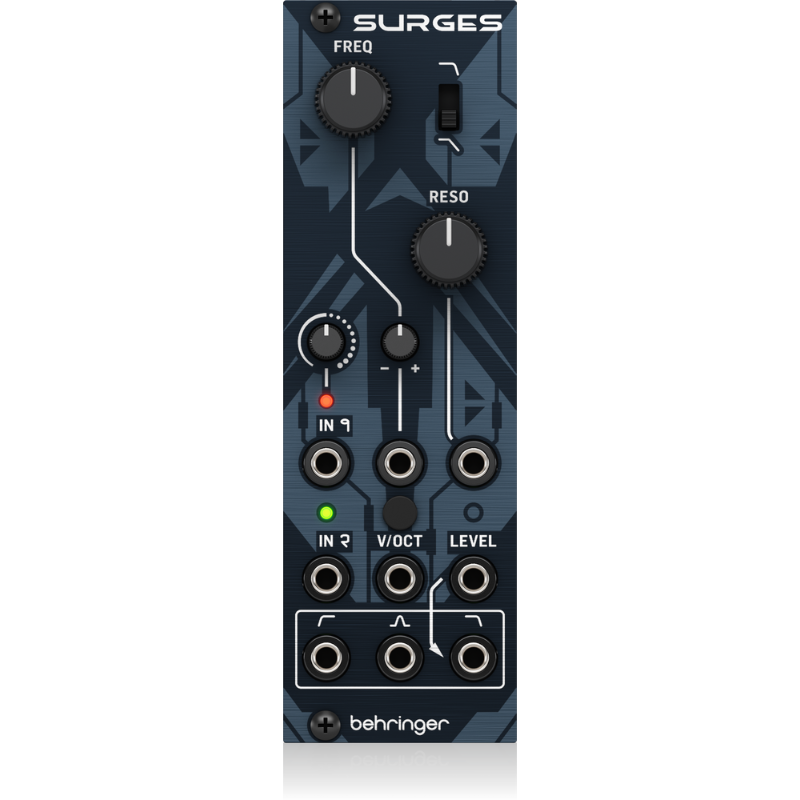

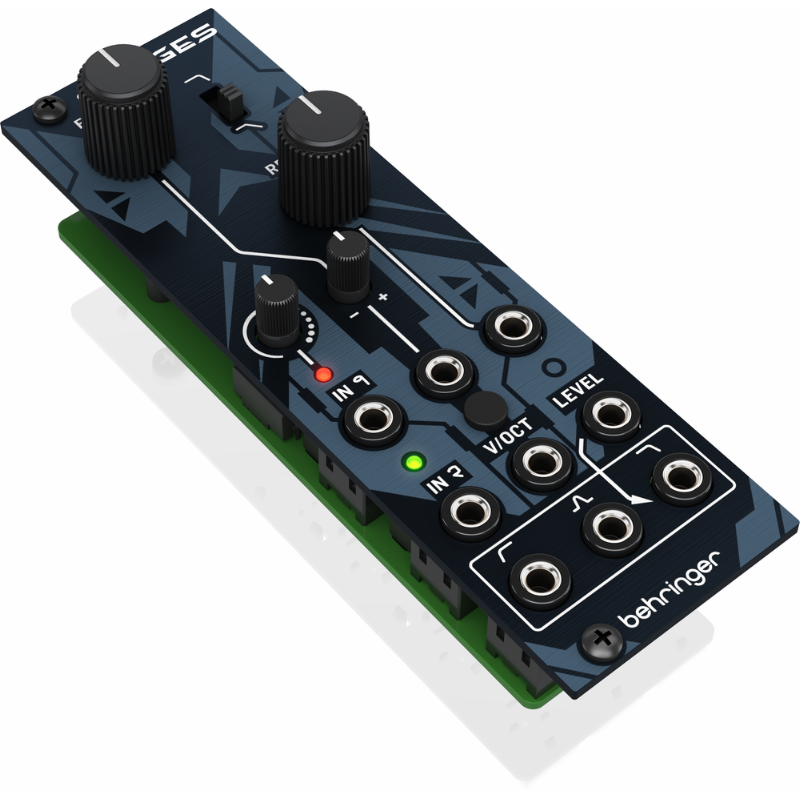

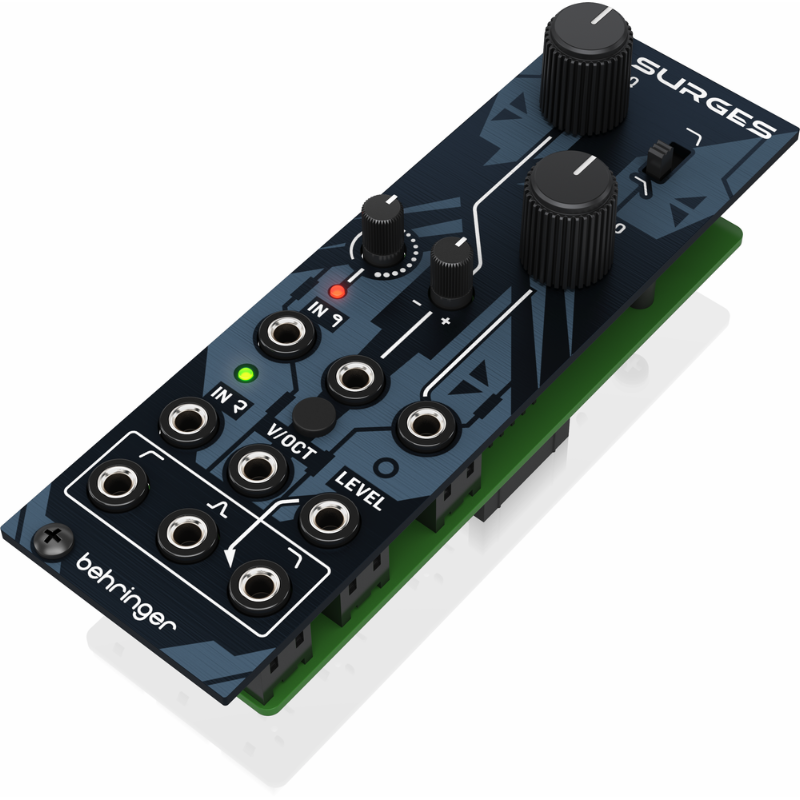

BEHRINGER SURGES LIQUID MULTIMODE FILTER EURORACK MODULE: Versatile Sound Shaping for Modular Synths
Voltage Controlled Multimode Filter for Musical Precision
The Behringer Surges Liquid Multimode Filter is designed to provide exceptional sound shaping capabilities for your Eurorack synthesizer setup. With its voltage-controlled functionality, this module offers high-pass, band-pass, and low-pass filtering options, allowing you to explore a wide sonic landscape. Its design is inspired by Mutable Instruments Ripples, delivering a “liquid” and musical tone coloration reminiscent of classic synthesizers like the SH and Jupiter filters.
Enhanced Control and Performance
This filter module features loudness compensation that increases resonance, ensuring your sounds remain rich and engaging at any frequency. With a frequency range of 18 Hz to 18 kHz, the Surges is capable of creating everything from subtle tonal adjustments to bold, resonant sweeps, making it an essential tool for any sound designer or performer.
Key Features
- Voltage-controlled multimode filter: High-pass, band-pass, and low-pass options for flexible sound shaping.
- Based on Mutable Instruments Ripples: Delivers high-quality sound with a musical tone coloration.
- Loudness compensation: Enhances resonance for a more dynamic audio experience.
- Wide frequency range: Operates from 18 Hz to 18 kHz, suitable for a variety of audio applications.
- Switchable filter slope: Choose between 2-pole or 4-pole for tailored filtering effects.
Why Choose the Behringer Surges Multimode Filter?
The Behringer Surges is an exceptional choice for musicians and sound designers looking to expand their modular synth capabilities. Its analog circuitry, based on renowned 2164 and 13700 semiconductors, ensures high fidelity and reliable performance. With easy integration into Eurorack setups, this filter module is perfect for those seeking to enhance their sound with a professional edge.
Specifications
Inputs:
- Audio Input 1: 3.5 mm TS jack, impedance 100 kΩ
- Audio Input 2: 3.5 mm TS jack, impedance 100 kΩ
- Frequency CV: 3.5 mm TS jack, range -8 V to +8 V
- Resonance CV: 3.5 mm TS jack, range -8 V to +8 V
- Volt/octave: 3.5 mm TS jack, range -3 V to +7 V
- LPF output level: 3.5 mm TS jack, range 0 V to +7 V
Outputs:
- High Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
- Band Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
- Low Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
Controls:
- Frequency
- Resonance
- Frequency CV Anteverted
- Input 1 Gain
- Switches for Filter Slope
Power Requirements:
- Power supply: Eurorack
- Current draw: 35 mA on both +12 V and -12 V rails
Physical:
- Operating Temperature: 5° C - 45° C (41° F - 113° F)
- Dimensions (H x W x D): 129 x 40 x 41 mm (5.06 x 1.59 x 1.62")
- Rack units: 8 HP
- Weight: 0.19 lb
