Description

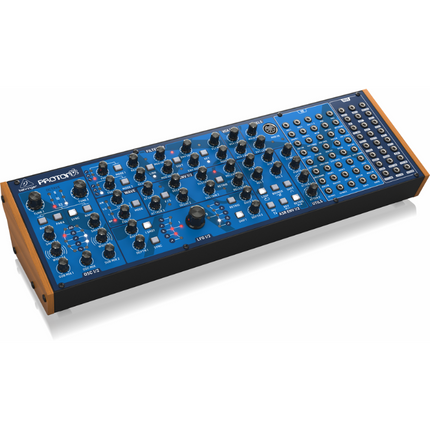

This semi-modular synthesizer is the nucleus of any setup, with intuitive controls and two VCOs, multi-mode VCFs, and many patch points for customized sound. No patching needed - just self-oscillation and MIDI/USB connection to explore the world of analogue music synthesis. With two self-oscillating, multi-mode VCFs, two ASR envelopes, two analogue ADSR generators, and a multi-mode wave folder, the sound possibilities are endless. The design also features two flexible LFOs, MIDI clock sync, key, sync, phase, and depth controls, and a noise generator. Optional external audio summing into VCFs adds even more options.
Features
- Analog synthesizer with dual VCO design for insanely fat music creation
- Paraphonic mode allows both oscillators to be independently controlled for multi-timbral sounds
- Semi-modular design requires no patching for immediate performance
- Pure analog signal path based on authentic VCO, VCF and VCA designs
- Dual oscillators with 5 waveforms, oscillator sync, pulse width modulation and individual sub-oscillators
- Oscillator waveform control blends seamlessly between 5 shapes (tone mod, pulse, sawtooth, triangle and sine)
- 2 self-oscillating, multi-mode VCFs can be configured in parallel or series with linkable CVs
- 2 ASR envelopes with reverse/ inverse/loop/bounce options to control VCAs and wave folder
- 2 analog ADSR generators for modulating the VCFs for unique sound performance
- Multi-mode wave folder adds rich harmonic content and massive flexibility to the LFOs
- 2 flexible LFOs with 5 waveforms, MIDI clock sync, key sync, phase and depth controls
- Noise generator dramatically expands waveform generation
- External audio can be summed into one or both VCFs to massively enhance sound generation
- Utility functions include attenuverters, multiples, signal/CV mixer and summer for creative patching
- External audio input with level control and soft clipping circuit for processing external sound sources
- 64 patch points for advanced modular connection and integration with external equipment
- 68 controls give you direct and real-time access to all important parameters
- Complete Eurorack solution – main module can be transferred to a standard Eurorack case
- Comprehensive MIDI implementation with MIDI channel and Voice Priority selection
Specifications
- Height - 9.3cm
- Width - 42.4cm
- Length - 13.6cm
- Weight - 1.73kg
