Behringer CP3A-M Analog Mixer Module, Vintage Analog Sound for Your Eurorack Setup 🎛️🎶

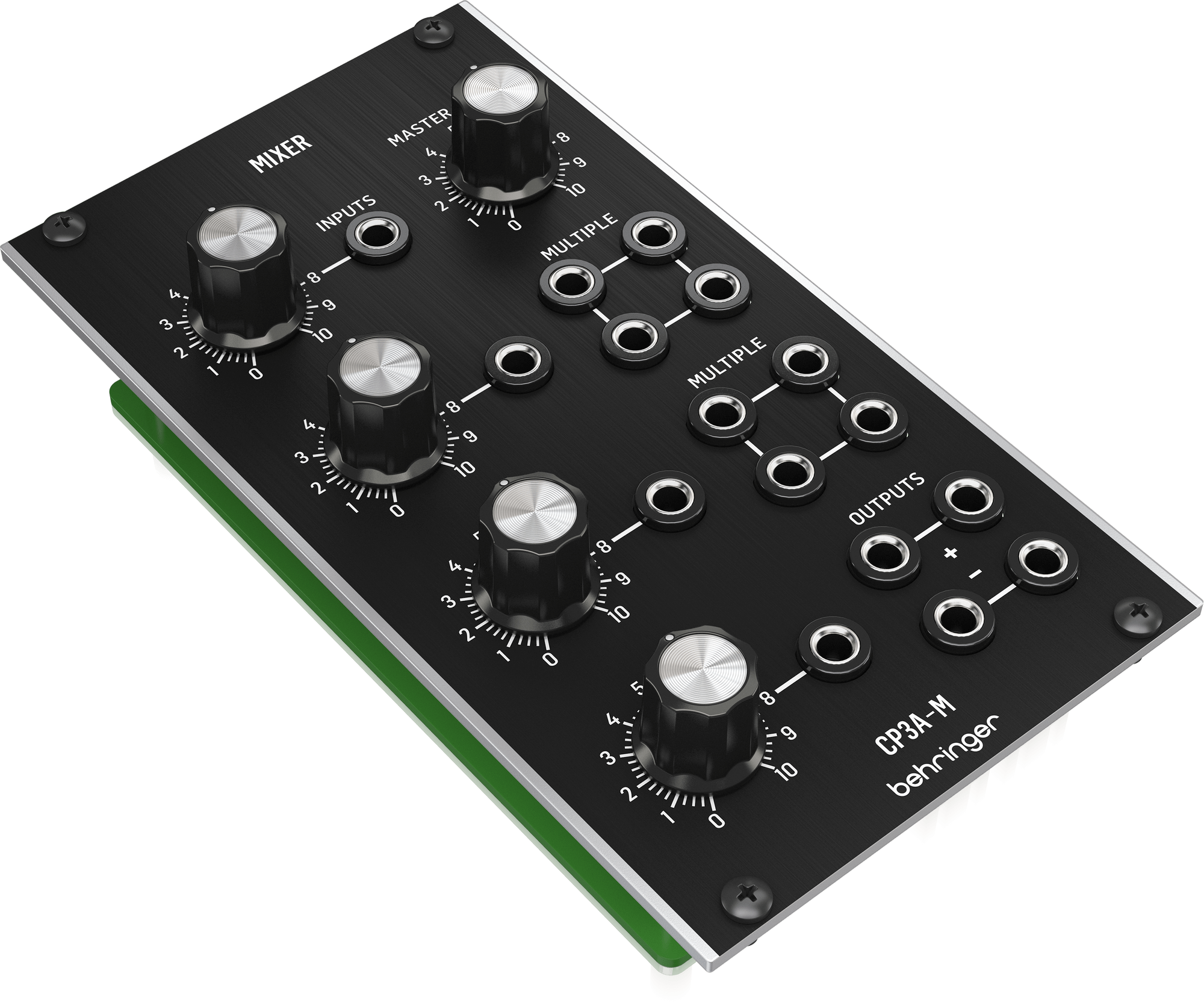

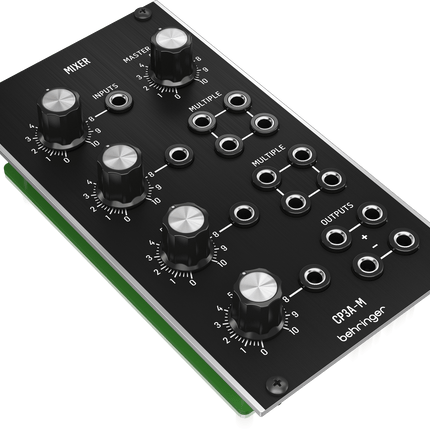

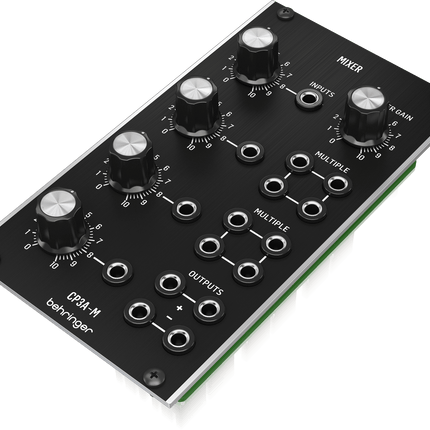

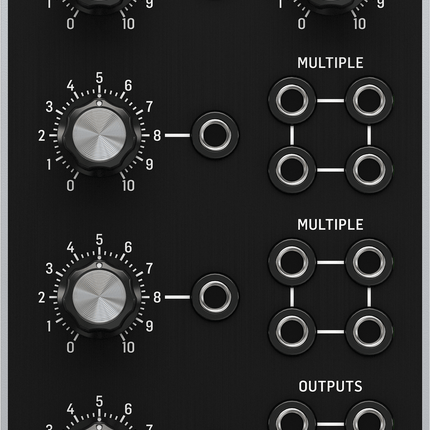

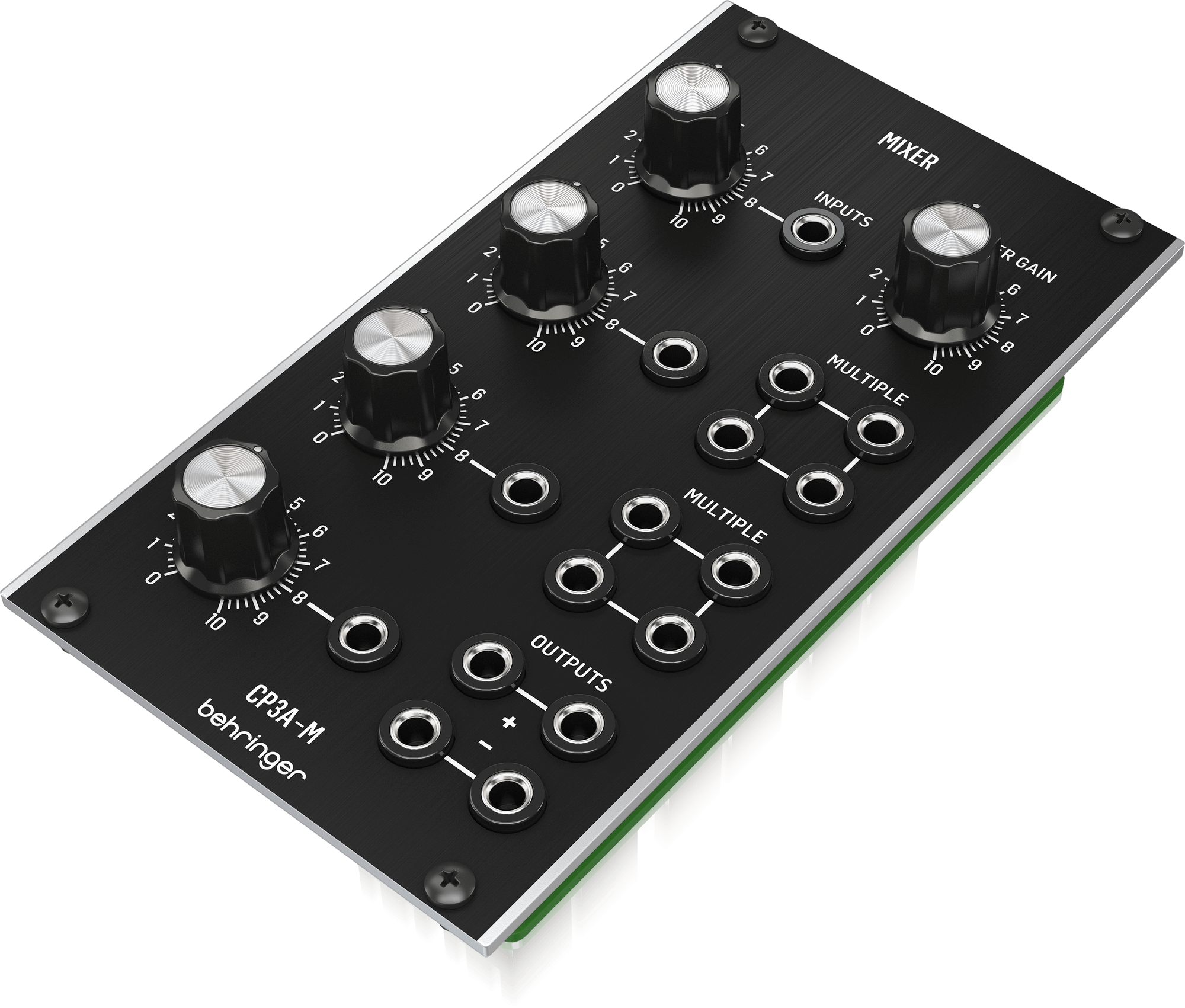

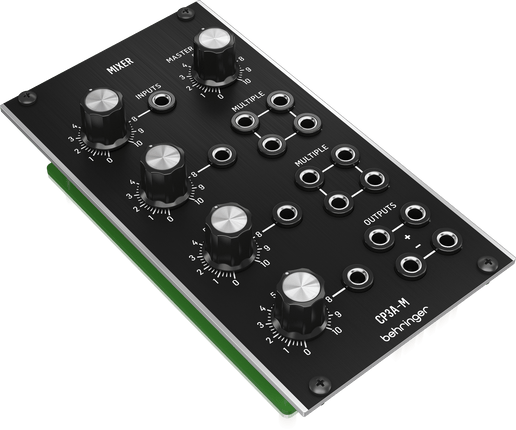

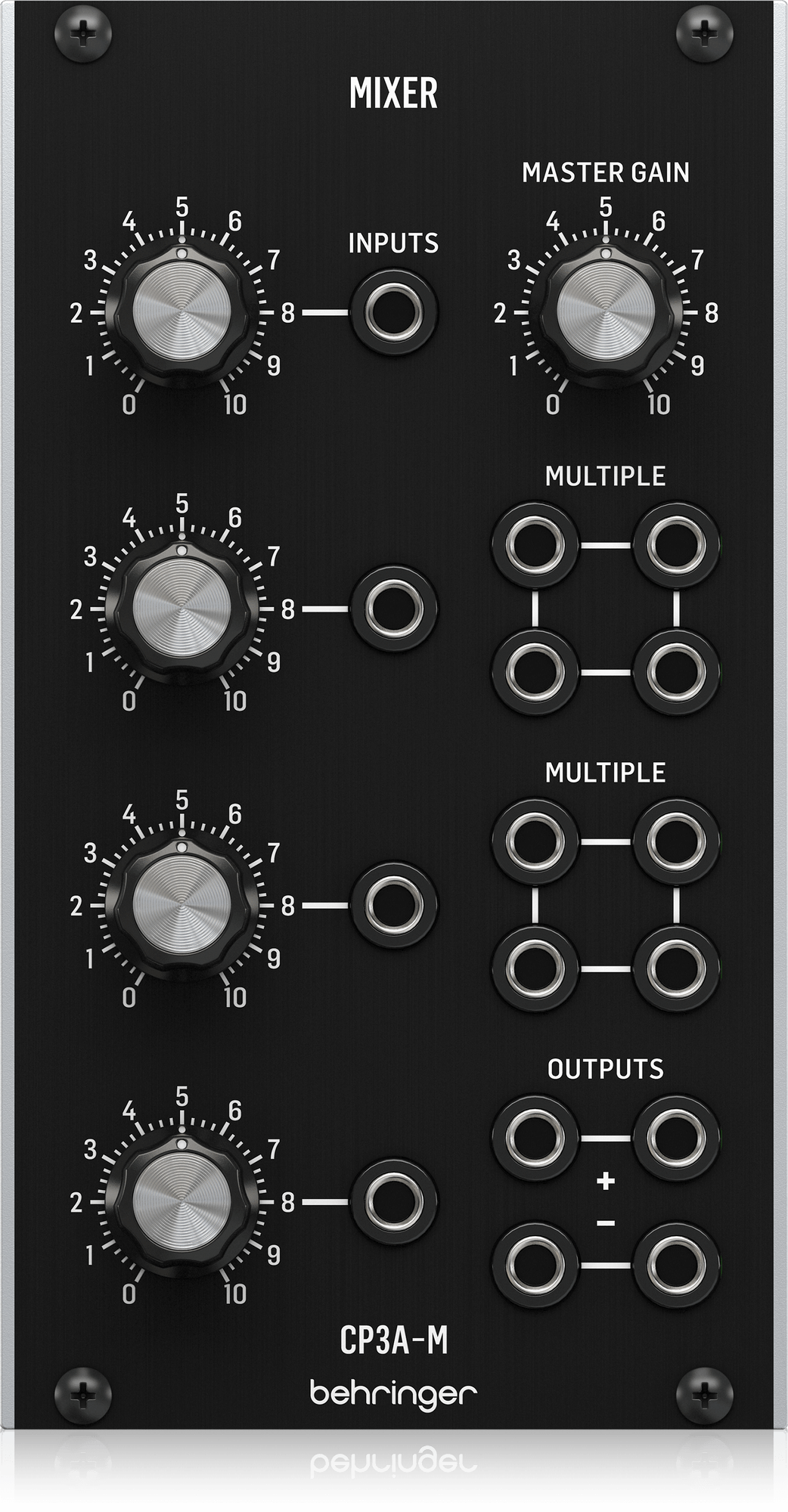

The Behringer CP3A-M Analog Mixer Module is a reproduction of the analog mixers from the Modular 55, 35, and 15 series, made for Eurorack setups. This budget-friendly module has four input channels, dual output sets and a 4-point multiple circuit for signal routing and mixing.
Whether you're layering complex sounds, fine-tuning levels, or shaping your modular workflow, the CP3A-M delivers authentic, analog performance in a compact, Eurorack-compatible format.
Key Features & Benefits:
✅ Classic Modular Design: Based on the 55, 35, and 15 modular series.
✅ Four Independent Input Channels: Each has its own volume control for mixing multiple sources.
✅ Dual Output Sets: Two sets of dual outputs for routing within your system.
✅ Master Gain Control: A dedicated master knob sets the overall volume.
✅ 4-Point Multiple Circuit: For patching, with parallel signal distribution.
✅ Hands-on Analog Controls: Five knobs for real-time sound adjustments.
✅ Compact & Lightweight: Fits a Eurorack setup.
Technical Specifications:
✔ Module Type: Analog Mixer
✔ Input Channels: 4 independent with dedicated volume controls
✔ Outputs: Dual output sets (2 x 2)
✔ Multiple Circuit: 4-point multiple for signal splitting and routing
✔ Power Requirements: +12V: 30 mA / -12V: 30 mA
✔ Eurorack Size: 14 HP
✔ Dimensions:
-
Height: 129 mm
-
Width: 71 mm
-
Depth: 35 mm
✔ Weight: 0.16 kg
Perfect For:
🎛 Modular Synth Enthusiasts, Add vintage warmth & precision control to your system.
🎼 Live Performers & Studio Producers, Mix and blend signals with ease & flexibility.
🎵 Sound Designers, Experiment with layering, routing, and analog sound sculpting.
About the Behringer CP3A-M
The Behringer CP3A-M Analog Mixer Module brings the modular sound of the '70s to a Eurorack system.
