Description

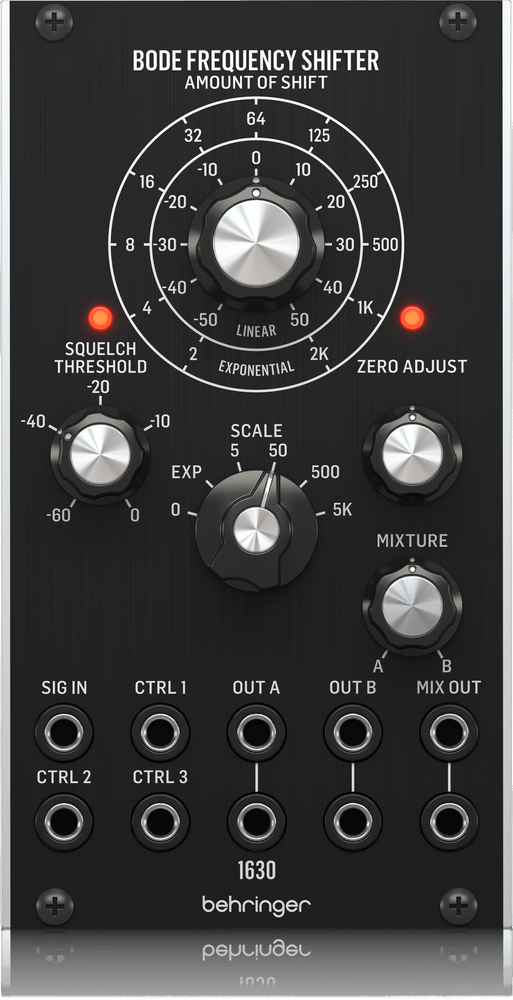

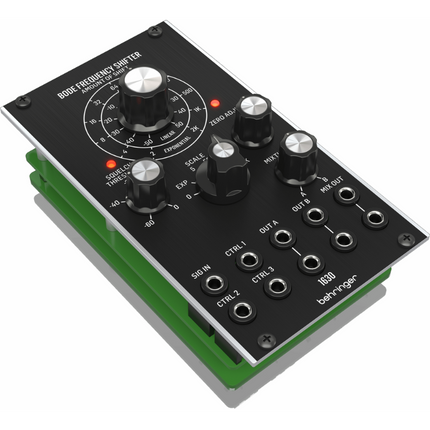

Behringer brings you the BODE FREQUENCY SHIFTER 1630 EURORACK MOD, a recreation of the classic ‘70s model featuring state-of-the-art circuitry. This unique module allows you to shift the entire frequency of any input signal by +/- 5kHz. The giant attenuator knob lets you accurately increase or decrease the frequency while the Scale knob lets you adjust the shift response from linear to exponential mode. The BODE FREQUENCY SHIFTER also comes with a variable threshold squelch to prevent carrier bleed-through and can be used to experiment with your input signal's characteristics. It offers 3 CV inputs and 4 output signals, a perfect addition to any setup.
-
Amount of shift is accurately voltage-variable with linear or exponential control
-
Variable threshold squelch minimizes apparent carrier bleed-through due to input signal background noise
-
Less than 1% total unwanted modulation and distortion products
-
Eurorack specs: 14 HP, 110 mA +12 V, 110 mA -12 V
-
Authentic recreation of the famous Bode frequency shifter from the '70s
-
Accurately shifts the entire frequency spectrum continuously variable from -5 to +5 kHz
-
State-of-the-art circuitry includes voltage-controlled beat frequency quadrature oscillator
-
Accurately shifts input signals over the audio frequency range of 30 Hz - 16 kHz
The BODE FREQUENCY SHIFTER is the piece you need to fill out that empty slot in your setup.
