Description

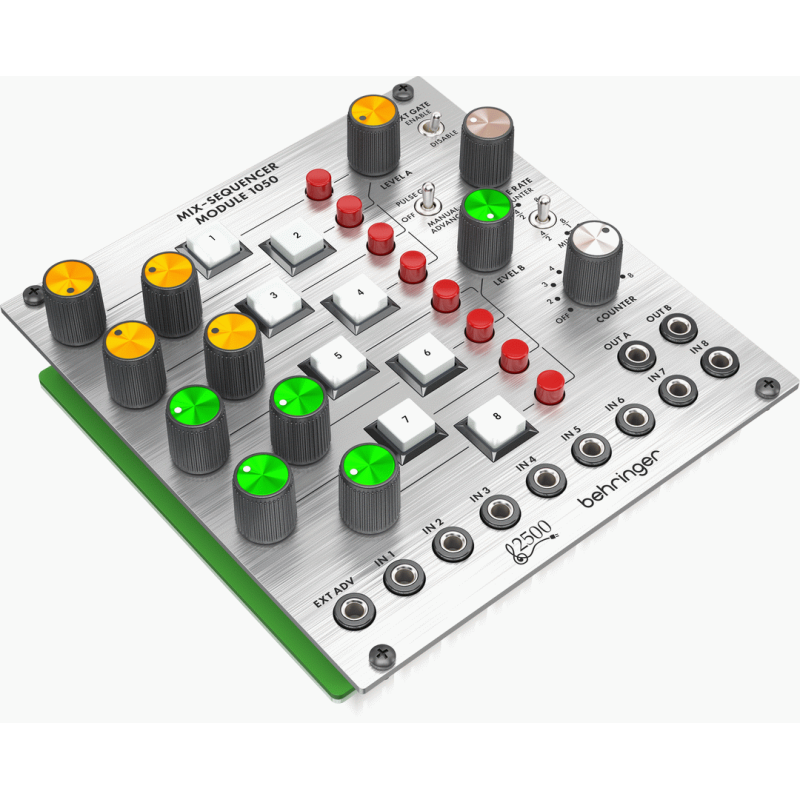

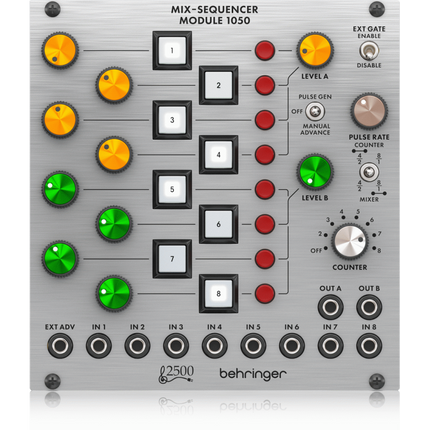

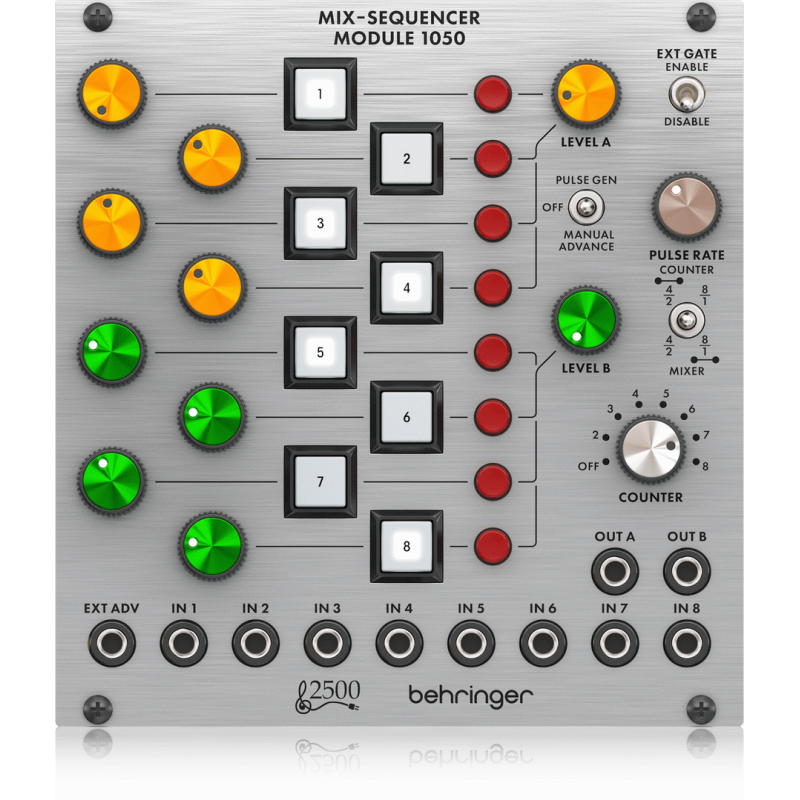

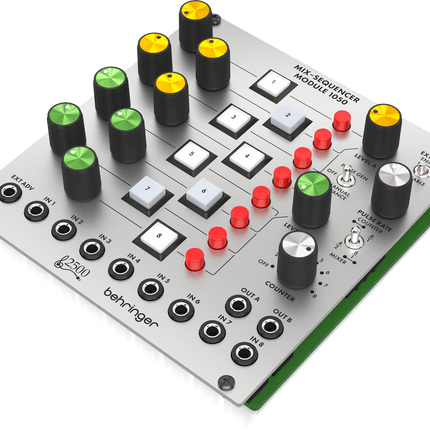

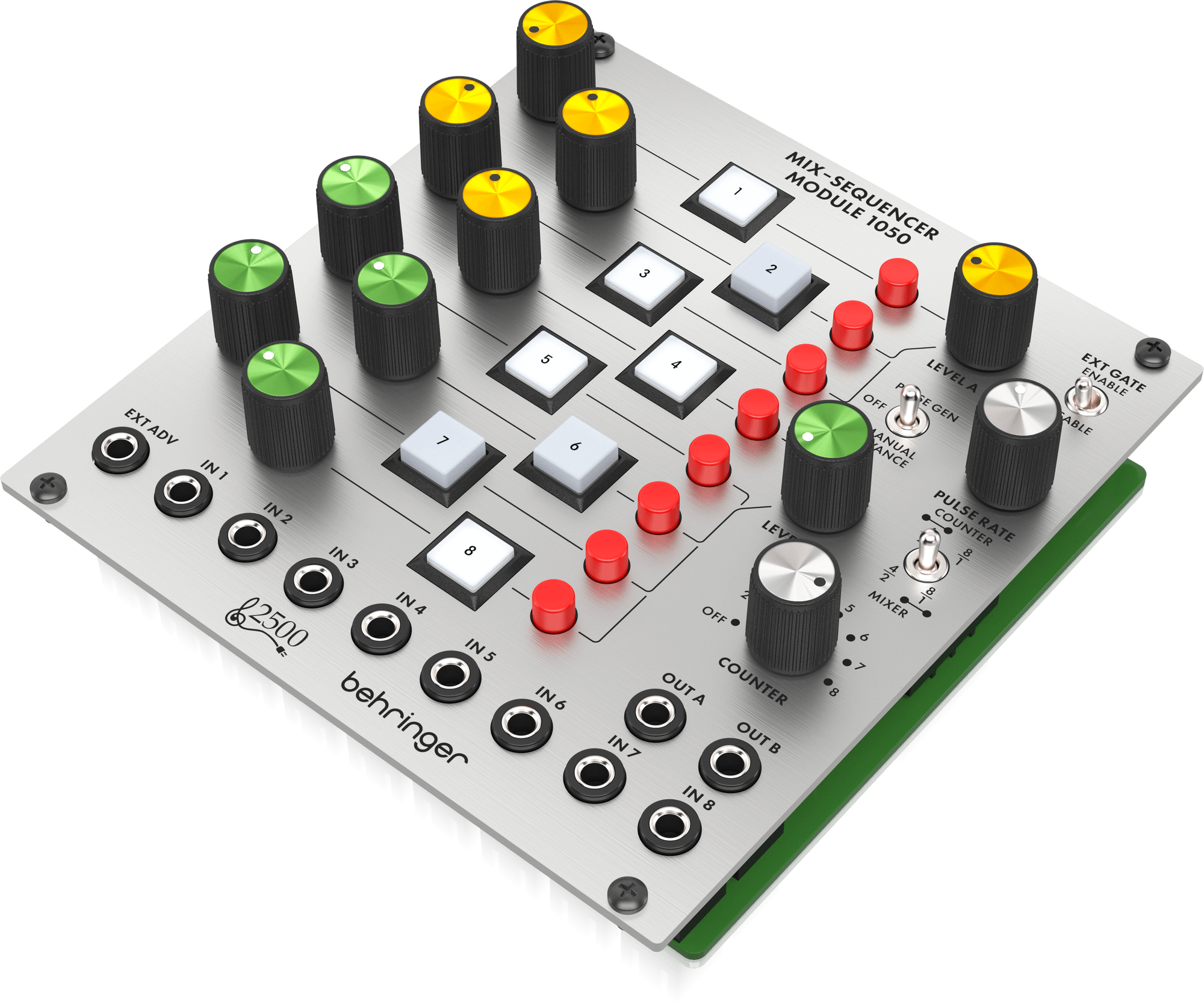

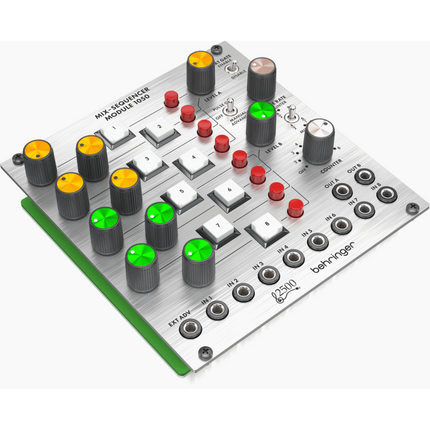

The BEHRINGER 1050 MIX-SEQUENCER MODULE combines an 8-channel mixer with a flexible sequencer, making it an essential tool for versatile sound design and live performance. Modeled after the classic 2500 Series from the 1970s, this module offers authentic circuitry with modern enhancements, delivering seamless mixing, gating, and sequential control. Ideal for dynamic waveform selection and signal routing, it provides powerful control over audio sequences in any Eurorack setup.
Key Features:
-
Classic Sequential Mixer Design: Faithful reproduction of the 1050 mixer/sequencer, inspired by the legendary 2500 Series.
-
Flexible Channel Mixing: Use as an 8-input mixer with two adjustable outputs or split into two 4-input mixers, each with master gain control.
-
Sequential Switching: Clock pulse generator allows automatic channel selection with adjustable pulse rate, sequencing channels in numerical order.
-
Dual Mixing Groups: Color-coded attenuator knobs for two groups of four channels, allowing smooth adjustment of each input.
-
Push Button Controls: Illuminated buttons let you quickly select channels; exclusive-on feature isolates channels for focused listening.
-
External Clocking Options: Compatible with modules like the 1027 or 1026, enabling integration with preset voltages and external clock control.
Specifications:
-
Size: 24HP Eurorack format, compact yet powerful for modular setups.
-
Power Requirements: 110 mA at +12 V, 20 mA at -12 V
-
Dimensions: 6 cm (H) x 13.5 cm (W) x 17.2 cm (L)
-
Weight: 0.3 kg
The BEHRINGER 1050 MIX-SEQUENCER MODULE offers a dynamic combination of an audio mixer and sequencer, providing both beginner and advanced users with high-level creative control and vintage-inspired functionality in a modern Eurorack format.
