BEHRINGER DI4000: Professional 4-Channel Active DI Box for Stage and Studio
Versatile DI Box for High-Quality Sound and Connectivity
The BEHRINGER DI4000 is a professional 4-channel active DI box designed for both stage and studio applications. With four high-quality DI channels in a single rack-mountable unit, this compact yet powerful tool provides excellent impedance and signal matching, ensuring clean and robust audio signals from instruments to mixers and amplifiers. Each channel features dual inputs (XLR and ¼” TRS), a balanced XLR output, and a ¼” link output for flexible signal routing to amplifiers, monitors, or other destinations.
Advanced Features for Superior Audio Performance
Equipped with renowned BEHRINGER OT-1 transformers, the DI4000 delivers an ultra-flat frequency response, ensuring pristine sound with no coloration. It can handle input signals up to 3,000 Watts and features customizable settings such as +20 dB gain for boosting low-level signals and -40 dB switchable input attenuation for high-output signals. The Phase Reverse and Ground Lift switches further enhance versatility, making the DI4000 ideal for addressing phase issues and eliminating ground loop problems.
Key Features of the BEHRINGER DI4000
-
4-channel DI box: Provides four DI channels in a single rack space, perfect for both stage and studio use.
-
Flexible connectivity: Each channel features dual inputs (XLR and ¼” TRS), balanced XLR output, and ¼” link output for versatile signal routing.
-
OT-1 transformers: Renowned BEHRINGER OT-1 output transformers ensure ultra-flat frequency response and superior audio quality.
-
High power handling: Capable of handling input signals from speaker outputs up to 3,000 Watts.
-
Gain and attenuation control: +20 dB gain switch for preamplification and -40 dB input attenuation for high-output signals.
-
Phase Reverse: Correct phase issues instantly with the Phase Reverse switch.
-
High-Cut Filter: The switchable 8 kHz high-cut filter is perfect for guitar applications.
-
Ground Lift switch: Eliminates ground loop problems, ensuring clean signal transmission.
-
LED level meter: 8-segment LED level meter on each channel for precise monitoring of signal performance.
-
Illuminated switches: Designed for ease of use on dark stages.
-
Durable and compact design: Built with 1U rack-mountable design and sturdy construction.
Compact and Built for Performance

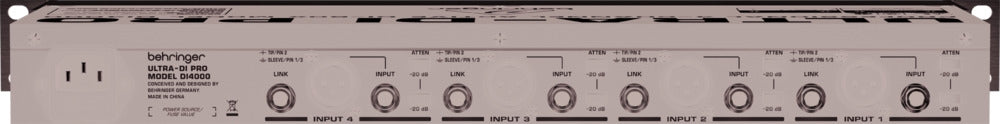

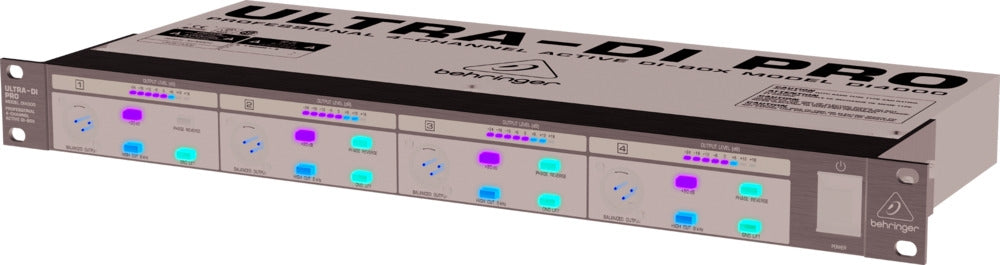

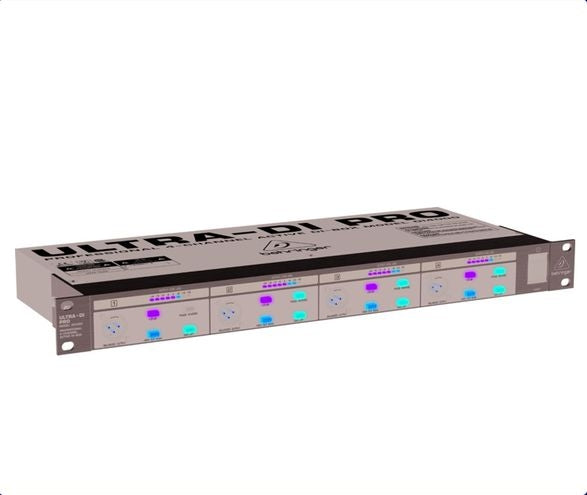

The BEHRINGER DI4000 has a compact 1U rack design that fits into studio or live setups. It has gold-plated XLR connectors and illuminated switches that can be read in dark environments. The DI4000 is built for both live and studio use.
Specifications of the BEHRINGER DI4000
-
Dimensions:
-
Width: 4.4 cm
-
Depth: 48.3 cm
-
Height: 13 cm
-
Weight: 2.2 kg
-
Inputs/Outputs:
-
XLR and ¼” TRS inputs for each channel
-
Balanced XLR outputs and ¼” link outputs for each channel
-
Input/Output Handling: Handles speaker outputs up to 3,000 Watts
-
Gain/Attenuation:
-
+20 dB gain switch for boosting low-level signals
-
-40 dB switchable input attenuation for high-level signals
-
High-Cut Filter: Switchable 8 kHz filter for guitar applications
-
Phase Reverse and Ground Lift switches for correcting phase issues and eliminating ground loops
Why Choose the BEHRINGER DI4000?
-
Professional performance: 4-channel DI box with high-quality output transformers and versatile signal routing options.
-
Flexible signal control: Handles a wide range of signal levels with customizable gain and attenuation settings.
-
Durable and reliable: Compact 1U rack-mountable design, perfect for demanding live performances or studio sessions.
-
Connectivity: Dual inputs, balanced outputs and link outputs.
Summary
The BEHRINGER DI4000 is a 4-channel active DI box for studio and live use, with a durable design. It suits musicians, engineers and audio professionals.
