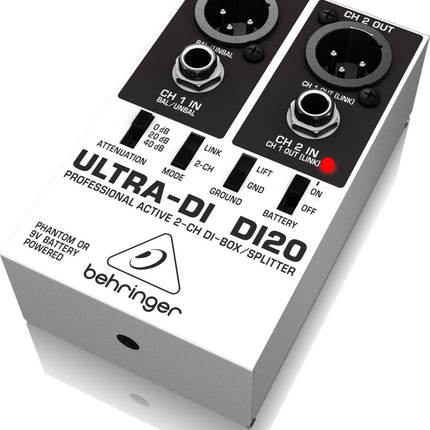

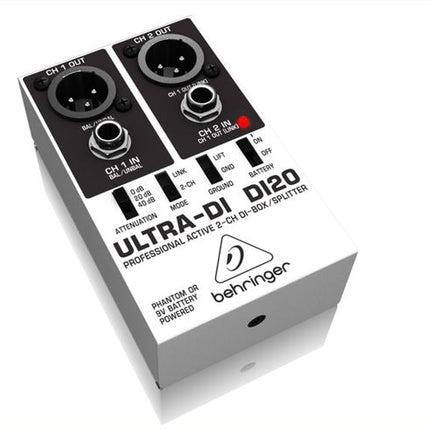

Behringer DI20 DI-Box / Signal Splitter – Versatile Audio Routing for Stage & Studio
Enhance your audio setup with the Behringer DI20 DI-Box / Splitter, a multi-purpose and professional solution for routing and splitting signals with ease. Whether you’re working in the studio or performing live on stage, this dual-channel direct injection (DI) box converts two unbalanced ¼” TRS inputs into balanced XLR outputs, ensuring clean, noise-free sound across your system.
Designed for maximum flexibility, the DI20 can be used in three modes: ✔ Dual Mono DI Mode – Converts two independent unbalanced signals to balanced outputs
✔ Stereo DI Mode – Converts a stereo signal for balanced XLR outputs
✔ Split Mode – Sends one input signal to two separate outputs, ideal for routing to different amps or audio systems

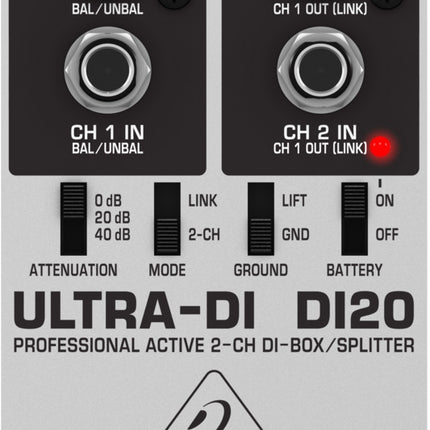

The DI20 also features a Ground Lift switch to eliminate hum and noise, plus a 3-position input attenuator that can handle high signal levels up to +48 dBu, making it suitable for powerful amplifiers (up to 3,000 watts).
Key Features & Benefits:
-
Professional Multi-Purpose DI Box – Ideal for stage & studio applications, providing impedance matching and clean signal conversion.
- Converts & Splits Audio Signals – Handles 2 mono channels, a stereo input, or splits one input to two XLR outputs.
- Ultra-Flat Frequency Response – Delivers crystal-clear audio thanks to servo-balanced operation.
- Phantom & Battery Power – Runs on 9V battery or phantom power from a mixer, automatically switching when needed.
- Ground Lift Switch – Eliminates hum and ground loops, ensuring noise-free performance.
- 3-Position Input Attenuator – Adjust input levels for +20 dB, +30 dB, or +48 dBu to handle high-powered sources.
- Premium Connectivity – Features ¼” TRS inputs & gold-plated XLR outputs for optimal signal integrity.
- Road-Ready Metal Housing – Compact, durable, and built for the stage, ensuring long-term reliability.
Specifications:
🔹 Input: 2 x ¼" TRS (Unbalanced)
🔹 Output: 2 x XLR (Balanced)
🔹 Modes: Dual Mono, Stereo, Split Mode
🔹 Power: 9V battery or mixer phantom power
🔹 Attenuation Settings: +20 dB, +30 dB, +48 dBu
🔹 Max Power Handling: Up to 3,000W speaker outputs
🔹 Ground Lift: Yes (Eliminates hum & noise)
🔹 Construction: Ultra-rugged metal housing
Perfect For:
✔ Musicians & Bands – Connect guitars, keyboards, bass, or amps directly to a mixer.
✔ Live Sound & PA Systems – Split and send signals to multiple sources.
✔ Studio Engineers – Achieve clean, noise-free recordings with balanced XLR output.
✔ DJs & Performers – Easily integrate multiple audio sources into your setup.
Achieve professional-grade audio with the Behringer DI20! Whether you need a high-quality DI box or a signal splitter, this versatile and durable unit delivers superior performance in any setting.
Order today and take control of your sound!
