BBC Micro:bit Board V2.21 Go Kit – Learn Coding & Create Interactive Projects! 🎛️🚀
The BBC Micro:bit V2.21 Go Kit is the perfect tool for learning coding, electronics, and digital creativity. With built-in sensors, a microphone, a speaker, and Bluetooth connectivity, this tiny but powerful device makes STEM and STEAM learning fun and engaging. Whether you’re a student, educator, or hobbyist, the Micro:bit V2.21 is an excellent platform for programming, interactive design, and hands-on experimentation.

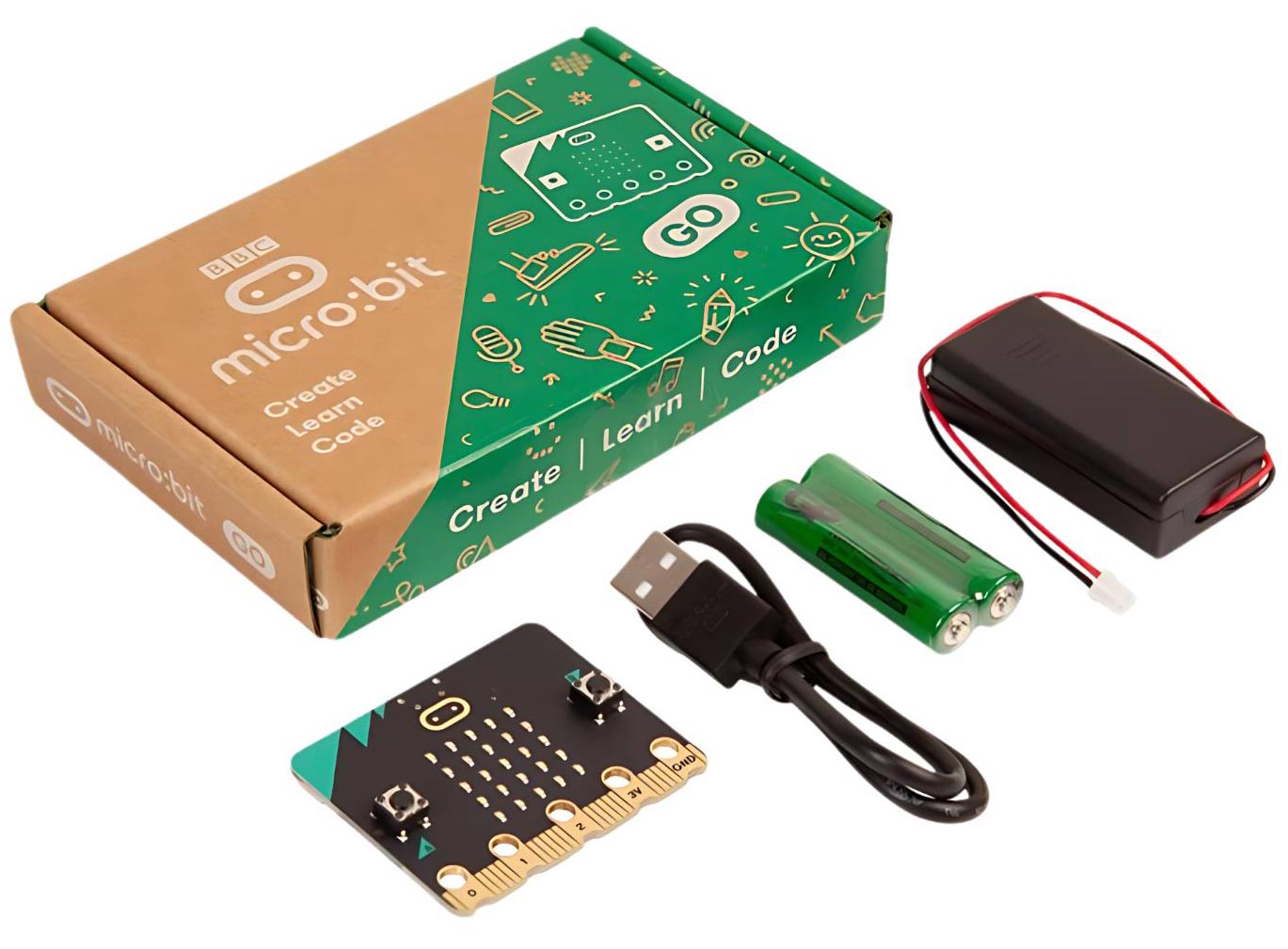

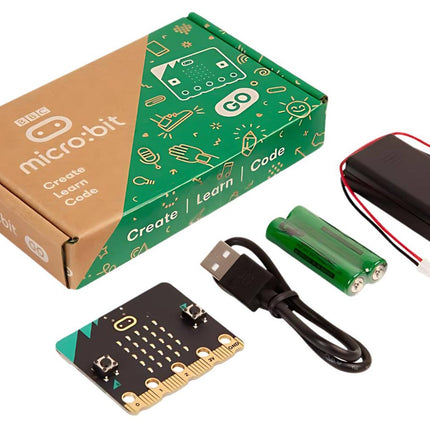

What’s Included in the Go Kit?
✅ 1 x BBC Micro:bit Board (V2.21) – Latest version for even more coding possibilities.
✅ 1 x USB Programming Cable – Easily connect to a computer for coding.
✅ 1 x Dual AAA Battery Holder (with JST connection cable) – Portable power supply for projects.
✅ 2 x AAA Batteries – Start coding right away!

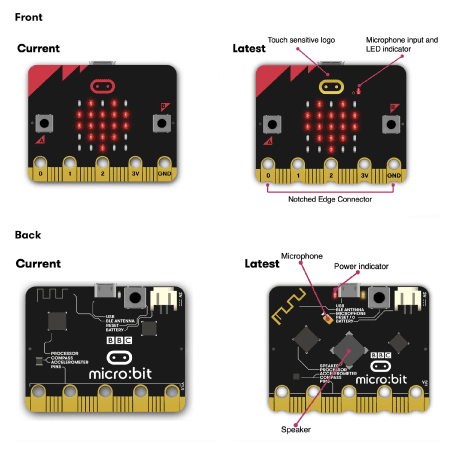

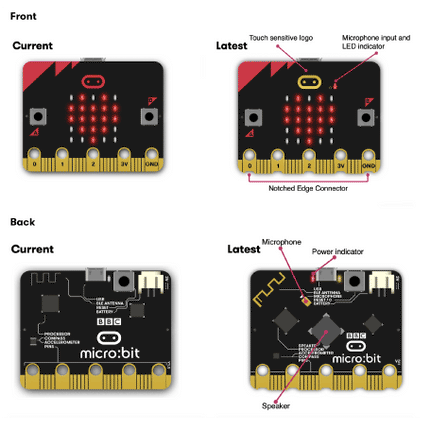

Key Features & Upgrades in Micro:bit V2.21
🎵 Built-in Speaker – Play sounds, music, and feedback tones directly from the board.
🎤 MEMS Microphone (with LED Indicator) – Sense and react to sound in projects.
🖐️ Touch-Sensitive Logo – Use the logo as an additional button or interactive touch sensor.
🔋 Power & Sleep Mode – Built-in sleep/off mode allows power-down while keeping batteries connected.
🔌 Enhanced Power Supply – Discrete regulator supplies up to 190mA to external accessories.
📡 Bluetooth 5.0 & 2.4GHz Radio – Wireless connectivity for remote-controlled projects and communication between Micro:bits.
🔦 Onboard Light Sensor – Detects light levels for interactive applications.
🌡️ Temperature Sensor – Measures ambient temperature for experiments.
🧭 Magnetometer (Compass) & Accelerometer – Detects motion, tilt, and magnetic fields.
🎮 Two Programmable Buttons (A & B) – Use for game controls, inputs, and functions.

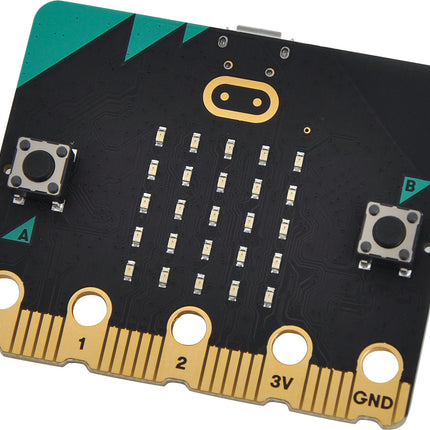

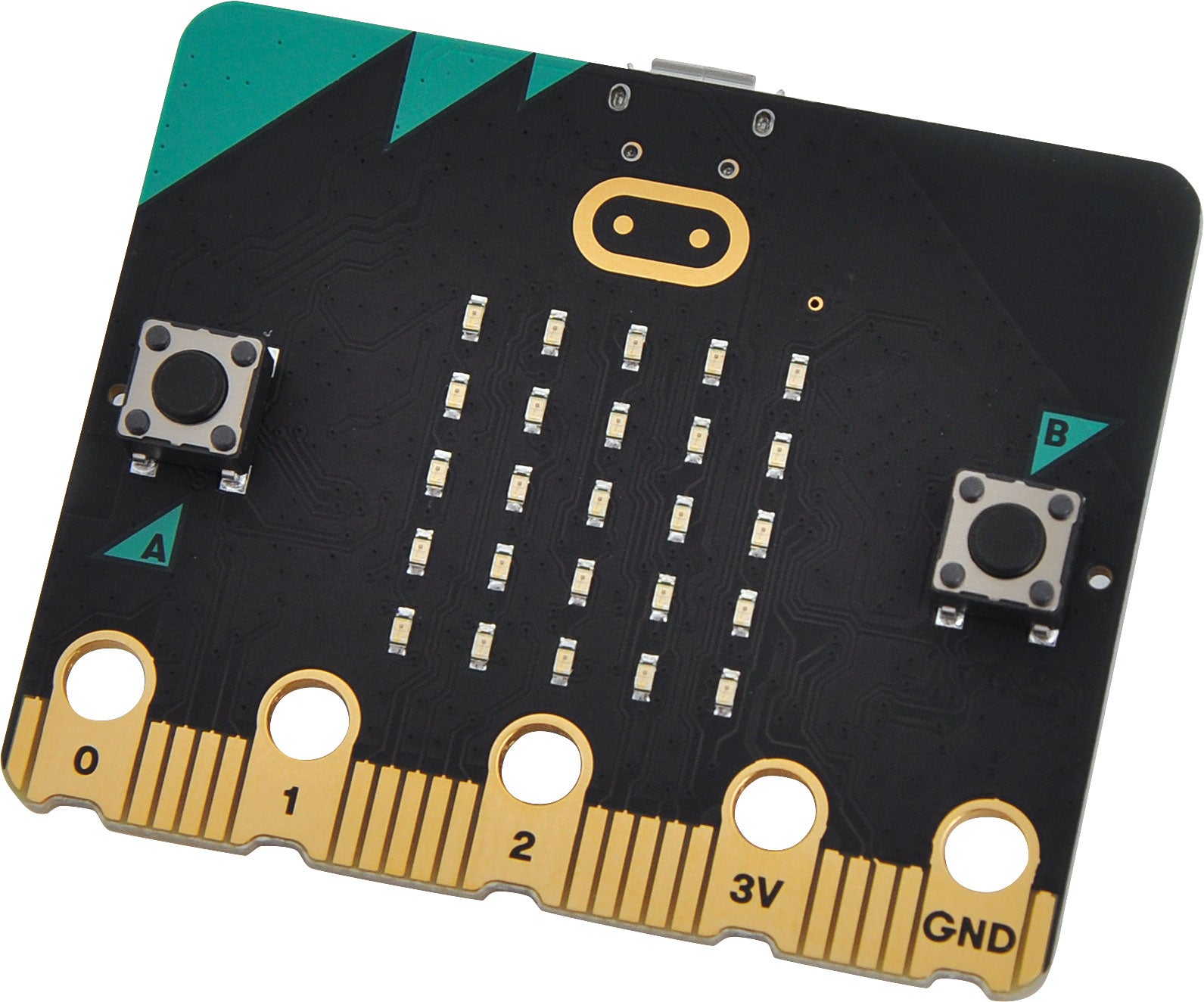

🔵 25 Programmable LEDs in a 5x5 Grid – Create animations, messages, and visual feedback.
🔌 25-Pin Edge Connector – Expand functionality by connecting additional components.
Why Choose the BBC Micro:bit V2.21?
✅ Easy to Use – No additional software needed; just plug in and start coding via MakeCode, Python, C++, or Scratch.
✅ Versatile – Ideal for education, workshops, DIY projects, and interactive prototypes.
✅ Bluetooth 5.0 – Allows for wireless communication between devices.
✅ Interactive Learning – Learn coding, electronics, and engineering through real-world applications.
✅ Mobile App Support – Code over Bluetooth without a USB cable using the Micro:bit mobile app.
Perfect for:
🎒 STEM/STEAM Education – Schools, coding clubs, and beginner-friendly programming.
🔬 Science & Engineering Projects – Experiment with sensors, lights, and movement.
🎮 DIY & Maker Projects – Build games, robots, and interactive prototypes.
📡 Wireless Communication – Create projects that interact via Bluetooth or Micro:bit radio.

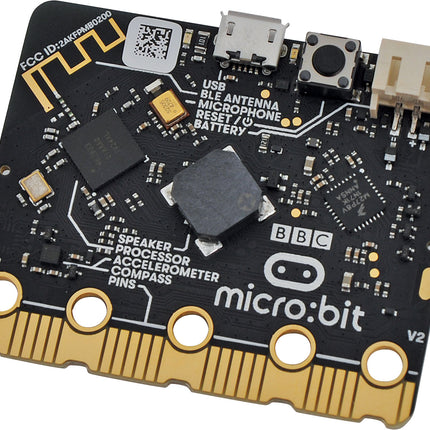

Specifications
🔹 Board Version: V2.21

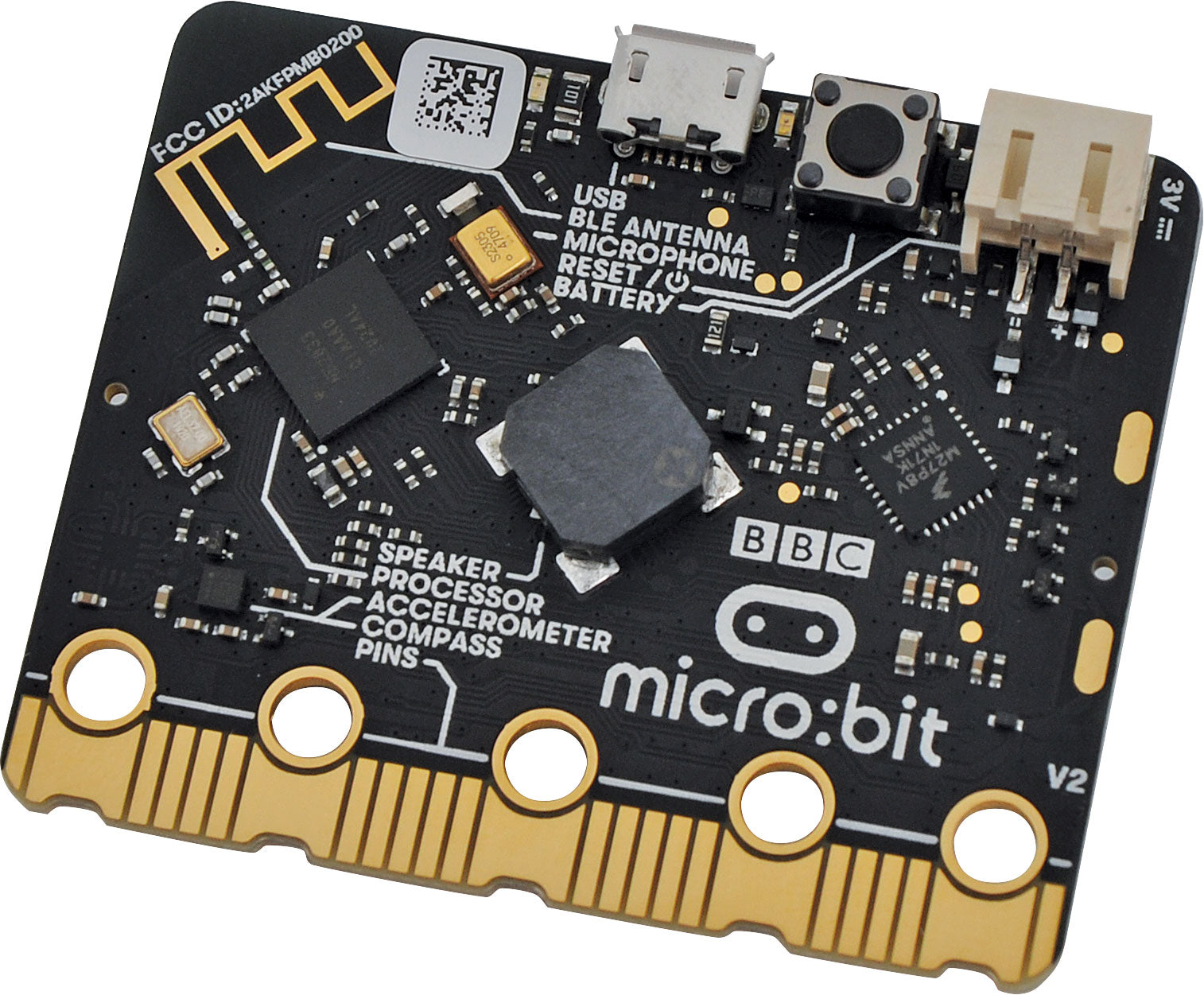

🔹 Processor: Nordic Semiconductor nRF52833 (512kB Flash, 128kB RAM)
🔹 Co-Processor: NXP KL27Z (32kB RAM)
🔹 Connectivity: Bluetooth 5.0 & 2.4GHz Micro:bit Radio
🔹 Input/Output: 25-Pin Edge Connector (PWM, I2C, SPI, GPIO, external power)
🔹 Power Supply:
- 5V via Micro USB
- 3V via Edge Connector or Battery Pack
- 200mA available for accessories
🔹 Sensors: Accelerometer, Magnetometer, Temperature, Light Level, Microphone
🔹 Buttons: 2 Programmable Input Buttons (A & B), Touch-Sensitive Logo
🔹 Dimensions: 5cm (W) x 4cm (H)
Get Started Right Away!
-
No Software Installation Required – Just use a web browser and a USB cable.
-
Program Using Multiple Languages – MakeCode, Python, C++, Scratch.
-
Access Free Tutorials & Projects – Find exciting coding lessons at the BBC Micro:bit website.
Order Your BBC Micro:bit V2.21 Go Kit Today!
Unlock endless possibilities in coding, robotics, and electronics with this versatile learning tool. Whether you're a beginner or an advanced user, the BBC Micro:bit makes innovation easy and fun!
