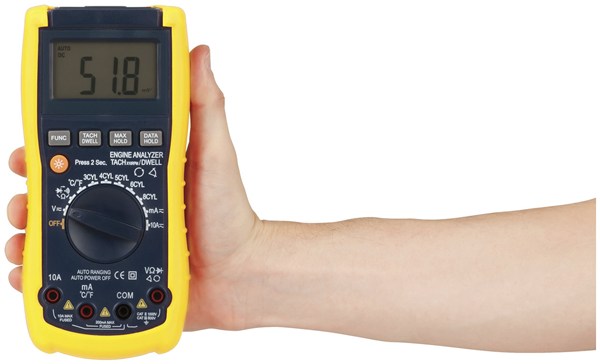

Digitech Automotive DMM with Dwell and Tacho QM1446

Description

The Automotive DMM with Dwell and Tacho QM1446 is a must-have diagnostic tool for any automotive specialist. Capable of reading a variety of parameters and with the added ability to measure time-based systems, this meter helps identify issues quickly and accurately. Its accuracy and efficiency make it an invaluable part of your workbench. This automotive diagnostic tool quickly and accurately identifies issues and its user-friendly design makes operation simple. With a host of features, it is the perfect choice to quickly and effectively diagnose faults in modern automotive systems.

Features:

  • Dwell angle
  • RPM x10
  • Data hold
  • Max hold
  • Continuity & diode test
  • Backlight
  • Auto power off
  • Display: 2000 count
  • Measurement Category: Cat II 1000V / Cat III 600V
  • Diode Test
  • Continuity Test

Specifications

Continuity buzzer : true
AC Current Ranges : 20mA, 200mA, 2A, 10A
AC Current Accuracy : 1.8%%
DC Current Ranges : 20mA, 200mA, 2A, 10A
DC Current Accuracy : 1.5%%
Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
Resistance Accuracy : 1.0%%
Outdoor / Exterior Scale : -20°C, 1000°C
Outdoor / Exterior Scale : -4°F, 1832°F
AC Voltage Ranges : 2V, 20V, 200V, 700V
AC Voltage Accuracy : 1.0%%
DC Voltage Ranges : 200mV, 2V, 20V, 200V, 1000V
DC Voltage Accuracy : 0.8%%
Records Maximum : true
Data Hold : true
Display Type : LCD
Display Backlight : LED Backlit
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600V
Count Maximum Reading : 2000 count
Autorange : true
Measures dwell : true
Length : 180mm
Width : 87mm
Depth : 50mm
Size / Shape : AAA
Battery quantity : 2pc
Packaged Volume : 2.28l
Packaged Weight : 0.53kg
Packaged Length : 22.4cm
Packaged Width : 16.4cm
Packaged Height : 6.2cm
Measurement Range Count : 2000 count
Meter Input Impedence : 10MΩ
Measures diode : true

    Read more
