Description
Advanced Smart Solar Regulator for Off-Grid, Caravan & Marine Power Systems
Maximise Solar Efficiency with MPPT Technology
The Powerhouse 12/24V MPPT Solar Charge Controller (20A) delivers up to 20% more charging efficiency compared to traditional PWM regulators. Using Maximum Power Point Tracking (MPPT) circuitry, it intelligently optimizes voltage and current from your panels, ensuring you get the most energy from your solar array — perfect for new installations or boosting existing solar systems.
Designed for permanent solar setups using lead acid, gel, or lithium batteries, this compact controller automatically detects 12V or 24V systems and provides clear feedback through its LCD display and status LEDs. Ideal for caravans, off-grid cabins, pumping stations, marine systems, and remote lighting applications.
Key Features
-
Advanced MPPT Technology: Up to 20% higher charge energy than standard regulators
-
Multi-Chemistry Compatibility: Supports Sealed, Gel, Flooded Lead-Acid, LiFePO4, and Li(NiCoMn)O2 batteries
-
Automatic Voltage Detection: Auto-recognizes 12V/24V systems
-
High-Efficiency Tracking: Super-fast tracking with precision power conversion
-

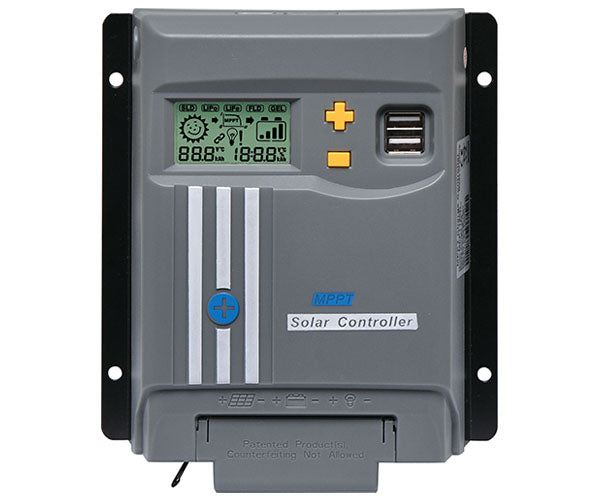

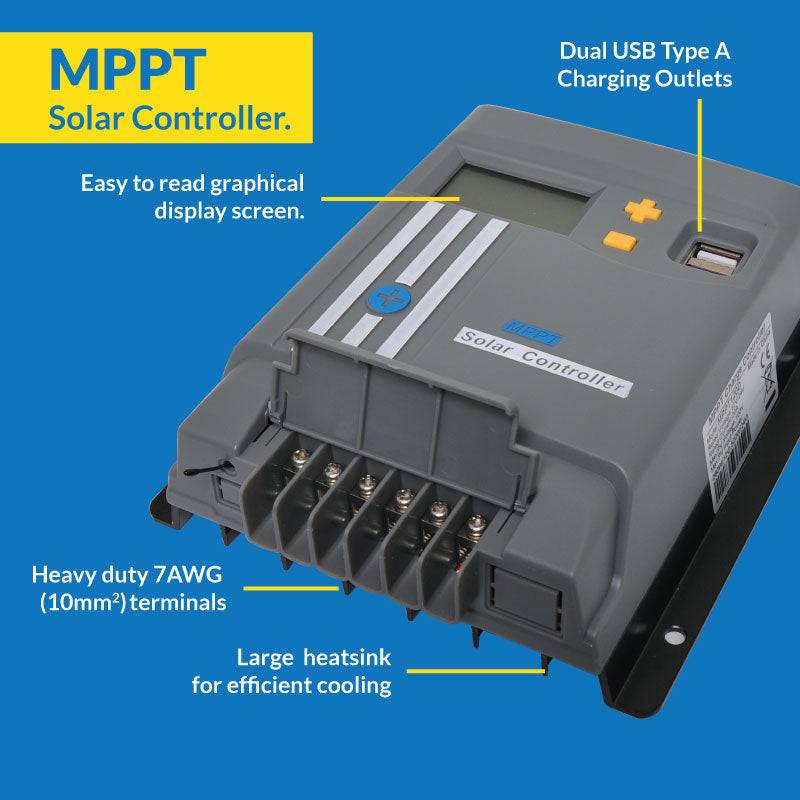

Integrated LCD Display: Real-time status of charging, load, and battery health
-
Temperature Compensation: Adapts performance to environmental conditions
-
Comprehensive Protection: Built-in safeguards against overcharge, overload, and reverse polarity
-
Durable Construction: Compact, rugged housing rated to IP30 for reliability in harsh environments
Ideal For
- Caravans, 4WDs & Camper Trailers
- Off-Grid Solar Systems & Battery Banks
- Marine Applications & Remote Installations
- Pumping Stations, Electric Fences & Outdoor Lighting Systems
Technical Specifications
-
Rated Charge Current: 20A
-
System Voltage: 12V / 24V (auto recognized)
-
Voltage Range: 8V–32V
-
Max PV Open Circuit Voltage: 100V / 150V (optional)
-
Battery Types: Sealed, Gel, Flooded Lead-Acid, LiFePO4, Li(NiCoMn)O2
-
Equalized Charging Voltage: 14.6V (sealed), 14.8V (flooded)
-
Absorption Charging Voltage: 14.6V (sealed), 14.2V (GEL)
-
Float Charging Voltage: 13.8V
-
Low Voltage Reconnect (LVR): 12.6V
-
Low Voltage Disconnect (LVD): 10.8V
-
Static Loss: ≤45mA/12V, ≤37mA/24V
-
High Voltage Disconnect (HVD): 16V
-
Charging Duration: Absorption – 2 hrs | Equalization – 2 hrs
-
Operating Temperature: –20°C to +55°C
-
Protection Class: IP30
-
Grounding Type: Positive grounded
-
Dimensions: 174.5 × 145 × 50 mm
-
Weight: 0.525kg
Important Installation Note

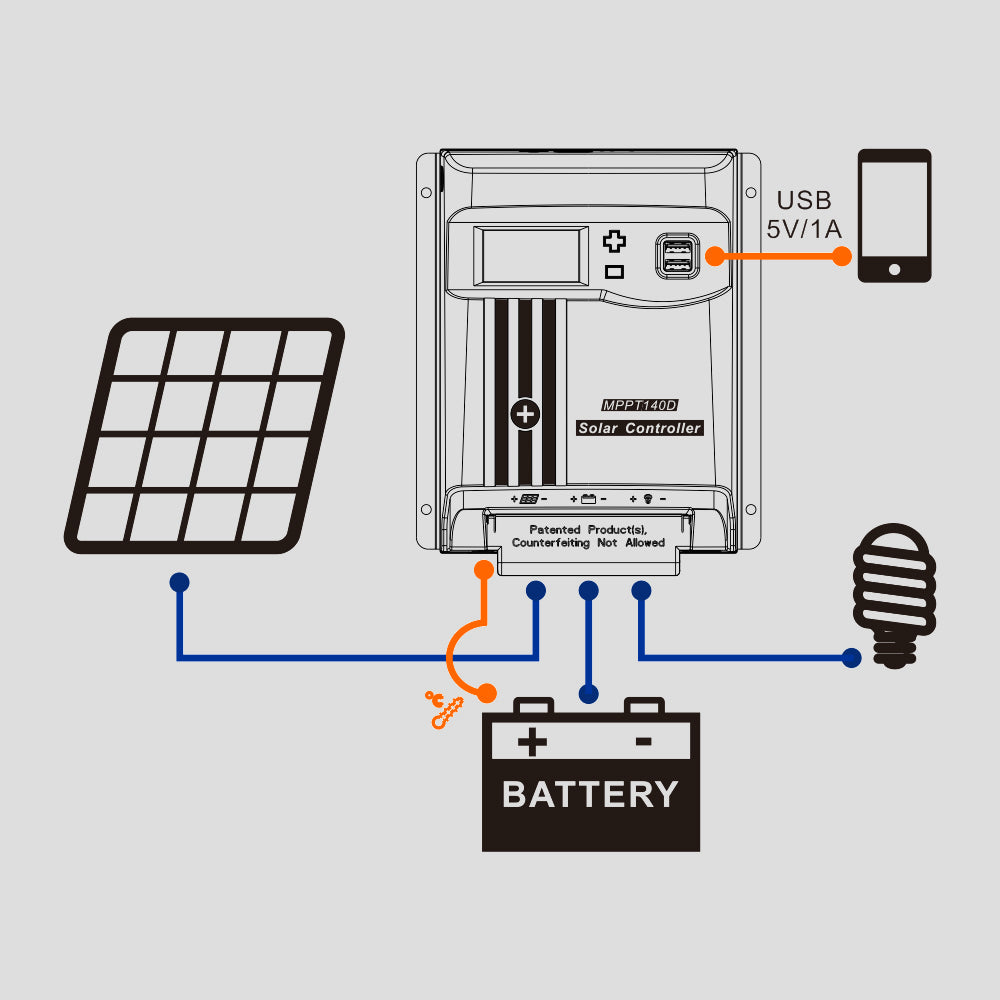

Do not set up the controller using a common earth configuration. Both positive and negative leads from the battery, solar panel, and load must connect directly to the solar regulator as outlined in the user manual. Incorrect wiring may cause battery or load damage.
Why Choose the Powerhouse MPPT 20A Solar Controller?
The Powerhouse 12/24V 20A MPPT Controller combines cutting-edge solar tracking technology, multi-battery compatibility, and robust safety features in a single, easy-to-use unit. Whether you’re powering a caravan, 4WD setup, or off-grid cabin, it ensures maximum power output, battery protection, and long-term reliability.
