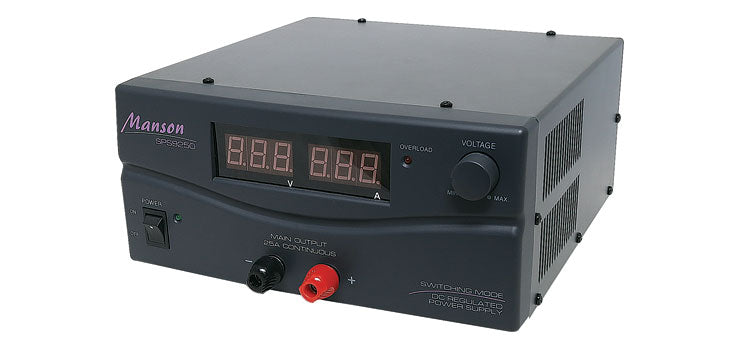

Manson 3-15V 25A Benchtop Power Supply

Description

With an impressive 25A capacity, this power supply is tailor-made for testing 2-way radios, car stereos, high-power RF transmitters, inverters, and similar devices. Choose between a fixed 13.8V output or adjust it fully from 3V to 15V using the intuitive front panel control. In fixed mode, the front panel control is automatically disabled, ensuring stability. Thanks to its switchmode circuitry, bulky transformers are a thing of the past, making it lightweight and portable. Digital panel meters for output voltage and current further streamline your testing process. Whether in a test bench or service center, this versatile powerhouse is a must-have.

Features

  • 3 to 15V @ 25A output
  • Regulated variable output voltage or fixed 13.8V (selectable)
  • Digital LED meters
  • Overload & short circuit protected
  • Extremely low ripple & noise
  • Excellent regulation
  • Highly efficient switchmode design

Specifications

  • Voltage Output: 3 to 15V DC adj. @ 0-25A
  • Auxiliary Outputs: NA
  • Ripple & Noise: Less than 5mV
  • Line Regulation: 50mV ±10%
  • Load Regulation: 200mV 0-100% Load
  • Display: Twin LCD meters
  • Dimensions: 220W x 110H x 220L mm
  • Net Weight: 3.2kg
  • Shipping Weight: 3.40000Kg
Product form

With an impressive 25A capacity, this power supply is tailor-made for testing 2-way radios, car stereos, high-power RF transmitters, inverters,... Read more

SKU: AL-M8224
Barcode: 9321758083864

1 in stock All Orders now shipped 6th January  Delivery times may vary based on your location and AU Post's service standards.

$400.00

    • Free shipping on all orders over $99*
    • 30 Day free no hassle returns - Even if you change your mind!
    • Secure Checkout Process! Shop with confidence!

    Description

    With an impressive 25A capacity, this power supply is tailor-made for testing 2-way radios, car stereos, high-power RF transmitters, inverters, and similar devices. Choose between a fixed 13.8V output or adjust it fully from 3V to 15V using the intuitive front panel control. In fixed mode, the front panel control is automatically disabled, ensuring stability. Thanks to its switchmode circuitry, bulky transformers are a thing of the past, making it lightweight and portable. Digital panel meters for output voltage and current further streamline your testing process. Whether in a test bench or service center, this versatile powerhouse is a must-have.

    Features

    • 3 to 15V @ 25A output
    • Regulated variable output voltage or fixed 13.8V (selectable)
    • Digital LED meters
    • Overload & short circuit protected
    • Extremely low ripple & noise
    • Excellent regulation
    • Highly efficient switchmode design

    Specifications

    • Voltage Output: 3 to 15V DC adj. @ 0-25A
    • Auxiliary Outputs: NA
    • Ripple & Noise: Less than 5mV
    • Line Regulation: 50mV ±10%
    • Load Regulation: 200mV 0-100% Load
    • Display: Twin LCD meters
    • Dimensions: 220W x 110H x 220L mm
    • Net Weight: 3.2kg
    • Shipping Weight: 3.40000Kg
