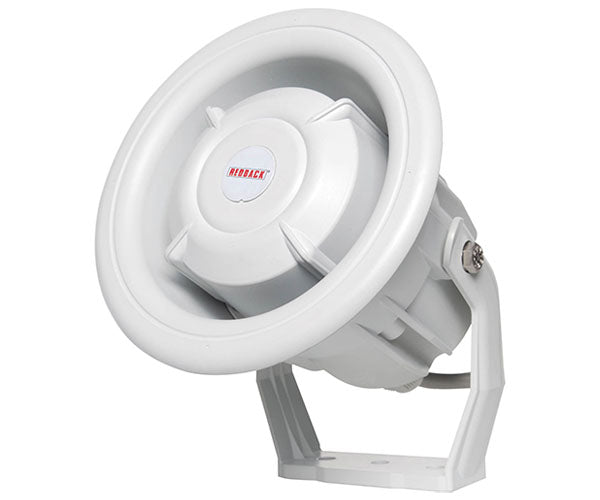

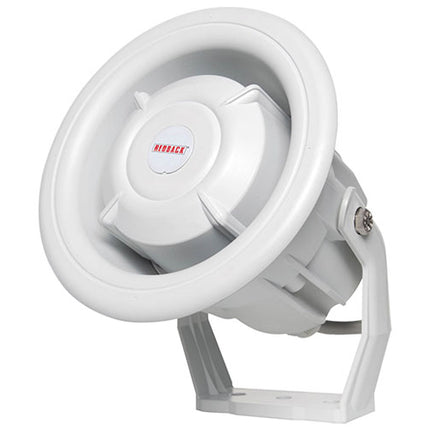

Redback 12W 100V IP67 Weatherproof Marine Horn Speaker – Built for Harsh Environments
The Redback 12W IP67 Marine Horn Speaker is engineered for maximum performance in the toughest conditions. Ideal for marine, industrial, and outdoor PA applications, this robust speaker is dust-tight, waterproof, UV-stabilised, and built to endure temperatures ranging from -30°C to +70°C. Its rugged ABS housing and stainless steel hardware ensure long-lasting durability, even under full sun or in salt-laden environments.
Equipped with a 22µF capacitor for line monitoring in EWIS (Emergency Warning & Intercommunication Systems), this speaker delivers excellent speech clarity and high sound pressure levels, making it perfect for paging, alarms, and safety alerts in high-noise zones.
Key Features
-
IP67 Rated: Dust and moisture protection for all-weather use
-
Wide Temperature Range: Operates reliably between -30°C to +70°C
-
UV Stabilised Housing: Long-lasting durability in direct sunlight
-
High Audio Performance: Up to 109dB SPL with exceptional clarity
-
Multiple Power Taps: Supports both 100V and 70V line systems, plus 8Ω operation
-
Versatile Mounting: Includes U-bracket for ceiling or surface installation
-
Complies with EWIS Requirements: Includes 22µF line monitoring capacitor
Specifications
-
Rated Power (RMS): 12W
-
Impedance Options: 833Ω, 1.67kΩ, 3.33kΩ, 6.67kΩ, 8Ω
-
Power Taps @ 100V: 12W, 6W, 3W, 1.5W, 8Ω
-
Power Taps @ 70V: 6W, 3W, 1.5W, 0.75W, 8Ω
-
SPL (1W @ 1m): 98dB | Max SPL: 109dB
-
Frequency Range:
- -10dB: 570Hz – 4.8kHz
- -20dB: 510Hz – 12kHz
-
Dispersion: 185˚ @ 1kHz / 45˚ @ 4kHz
-
Housing Material: UV-Stabilised High-Impact ABS
-
Ingress Protection: IP67 (IEC 529)
-
Mounting: Surface or recessed with stainless steel hardware
-
Dimensions: Ø143mm x 110mm (L) | Cutout: Ø110mm
-
Weight: 1kg
Perfect For:
Marine vessels, industrial estates, car parks, factories, schools, outdoor paging systems, public transport terminals, and anywhere requiring reliable weatherproof audio solutions.
Upgrade your safety and paging systems with the Redback IP67 Marine Horn Speaker built for clarity, endurance, and all-weather performance.
